CAUTION PLATE (EXTERIOR & INTERIOR)

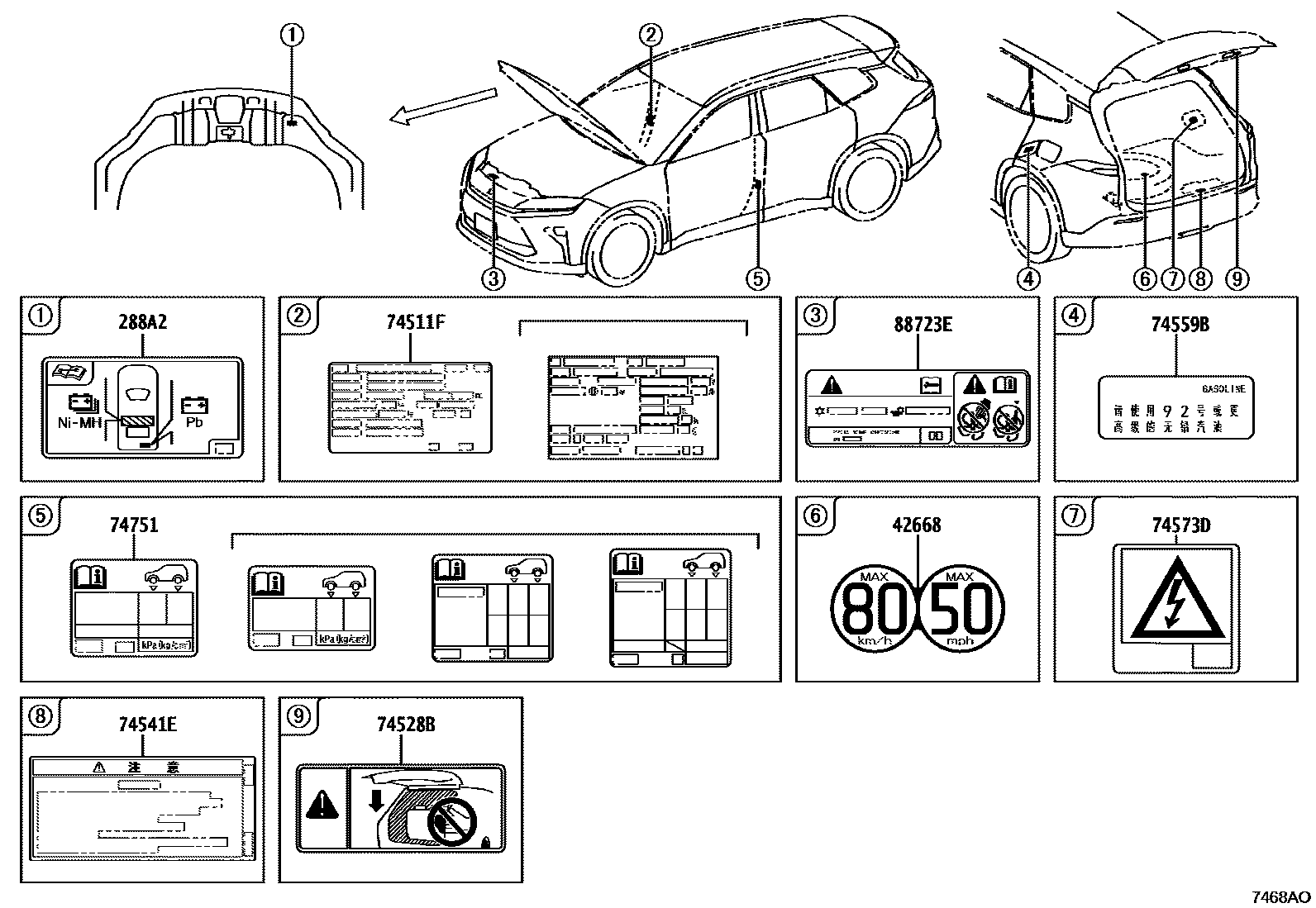

Parts diagram
288A2LABEL, BATTERY LOCATION
main288A2-25050i202409
main288A2-25060i202405
42668LABEL, COMPACT SPARE TIRE CAUTION
main42668-42010i202405
SPARE TIRE-TEMPORARY(T165/80D17)
74511FLABEL, NAME (IDENTIFICATION LASER LABEL)
main74511-30A30i202405
*111
main74511-30A50i202409
*111
74528BLABEL, BACK DOOR CAUTION
main74528-47020i202405
74541EPLATE, COMPACT SPARE TIRE CAUTION
main42668-58040i202405
SPARE TIRE-TEMPORARY(T165/80D17)
74559BLABEL, FUEL INFORMATION
main74579-26011i202405
74573DLABEL, ELECTRIC VEHICLE BATTERY CAUTION
main74573-42160i202409
74751LABEL, TIRE PRESSURE INFORMATION
main42661-30T20i202405
main42661-30T30i202405
SPARE TIRE-TEMPORARY(T165/80D17)
main42661-30T80i202405
main42661-30T90i202405
SPARE TIRE-TEMPORARY(T165/80D17)
main42661-30U70i202405
TIRE & DISC WHEEL-225/45R21 8.5J SUMMER TIRE ALMINUM WHEEL&SPARE TIRE-TEMPORARY(T165/80D17)
main42661-30V10i202405
TIRE & DISC WHEEL-225/45R21 8.5J SUMMER TIRE ALMINUM WHEEL
88723ELABEL, COOLER SERVICE CAUTION
main7454A-30080i202405
main88723-48510i202409

9 parts on this diagram · 2 diagrams in section
