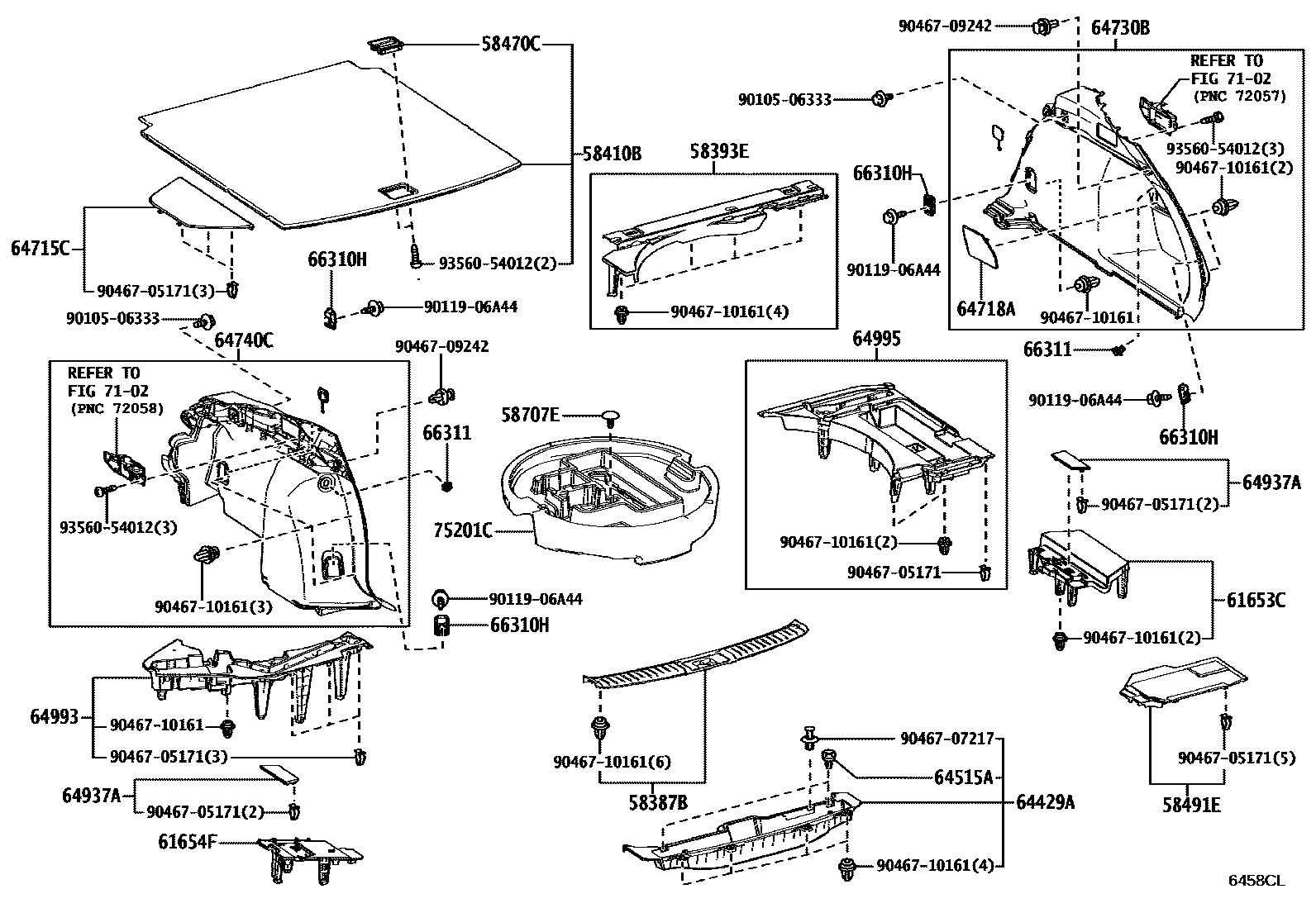

DECK BOARD & DECK TRIM COVER
58387BPLATE, REAR FLOOR FINISH
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
58410BBOARD ASSY, DECK
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
58470CHANDLE ASSY, DECK BOARD
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
58491EPLATE, BATTERY SERVICE COVER
58707EPLUG SET, HOLE
61653CBRACKET, DECK SIDE TRIM, RH
61654FBRACKET, DECK SIDE TRIM, LH
64429ABOX, LUGGAGE COMPARTMENT TRIM
64515AHOLDER, LUGGAGE COMPARTMENT DOOR HOOK
BLACK
64715CCOVER, DECK SIDE TRIM, LH
BLACK,TRIM2#,4#
64718ACOVER, DECK TRIM SERVICE HOLE
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
64937ACAP, TONNEAU COVER HOLDER, NO.1
64993BOX, DECK FLOOR, REAR
66310HHOOK ASSY, ROPE
66311HOOK, ROPE
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
7102
9010506333
main90105-06333
9011906A44
main90119-06A44
9046705171
main90467-05171
9046707217
main90467-07217
9046709242
main90467-09242
9046710161
main90467-10161
9356054012
main93560-54012
28 parts on this diagram · 3 diagrams in section
