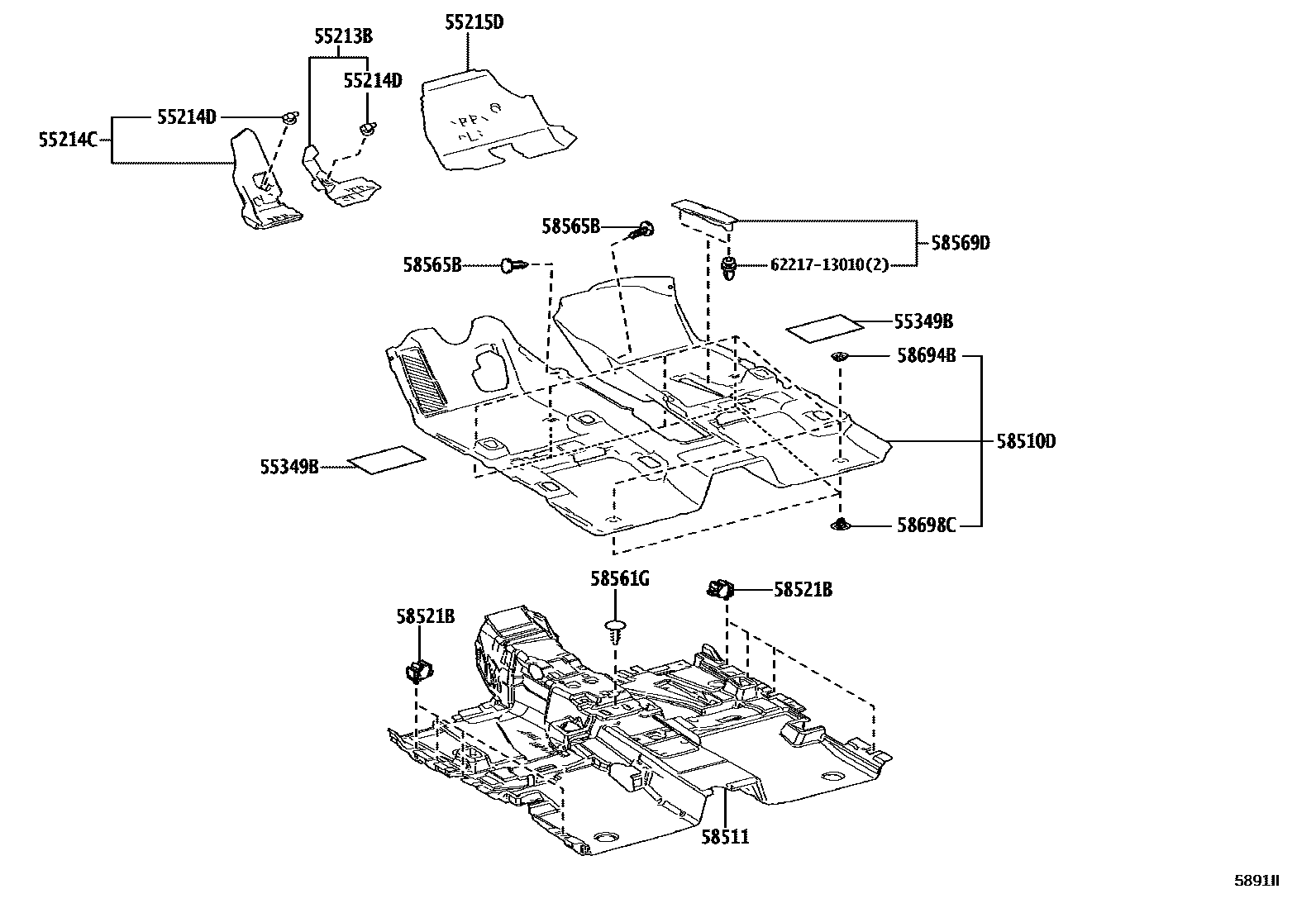

MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55214DCLIP(FOR DASH PANEL INSULATOR PAD)
55215DPAD, DASH PANEL INSULATOR, NO.3
55349BSHEET, ACTIVATED CARBON
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM0#,2#,4#
58521BHOOK, FLOOR CARPET
58561GCLIP(FOR FRONT FLOOR SILENCER)
58565BCLIP
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM2#,4#
BLACK,TRIM0#,2#,4#
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
6221713010COVER, RAIL ROOF SIDE, INNER CENTER
main62217-13010
14 parts on this diagram · 2 diagrams in section
