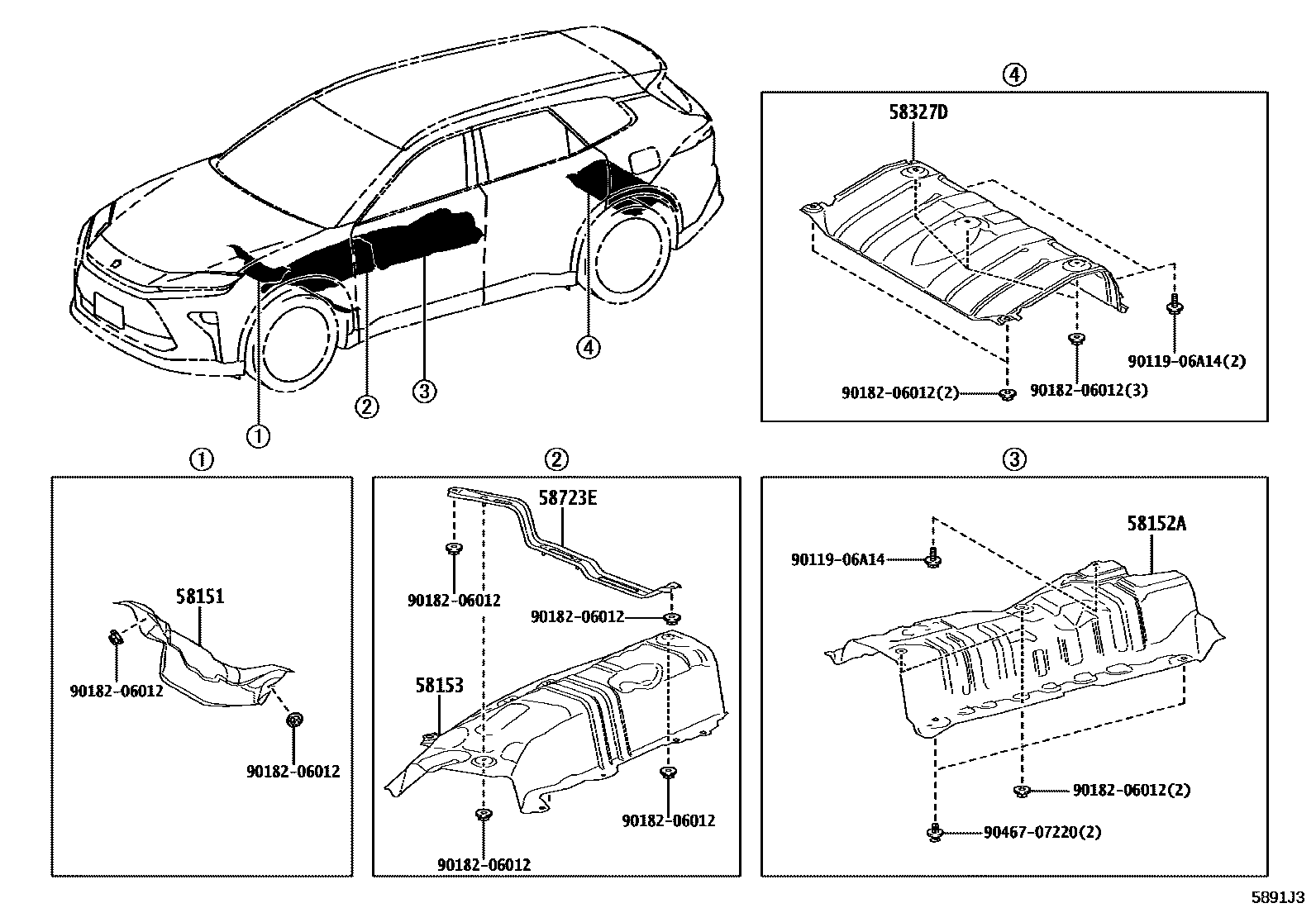

FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-30250iAZSH39202409

main58151-42060iAZSH38¥2,100202405

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-30110iAZSH39202409

main58152-30120iAZSH38¥4,750202405

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-30050iAZSH38¥5,300202405

main58153-30060iAZSH39202409

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-30120iAZSH38¥4,690202405

58723ECUSHION, ENGINE SERVICE COVER

main58723-42040iAZSH38¥2,330202405

9011906A14

main90119-06A14¥60

9018206012

main90182-06012¥60

9046707220

main90467-07220¥80

8 parts on this diagram · 2 diagrams in section
