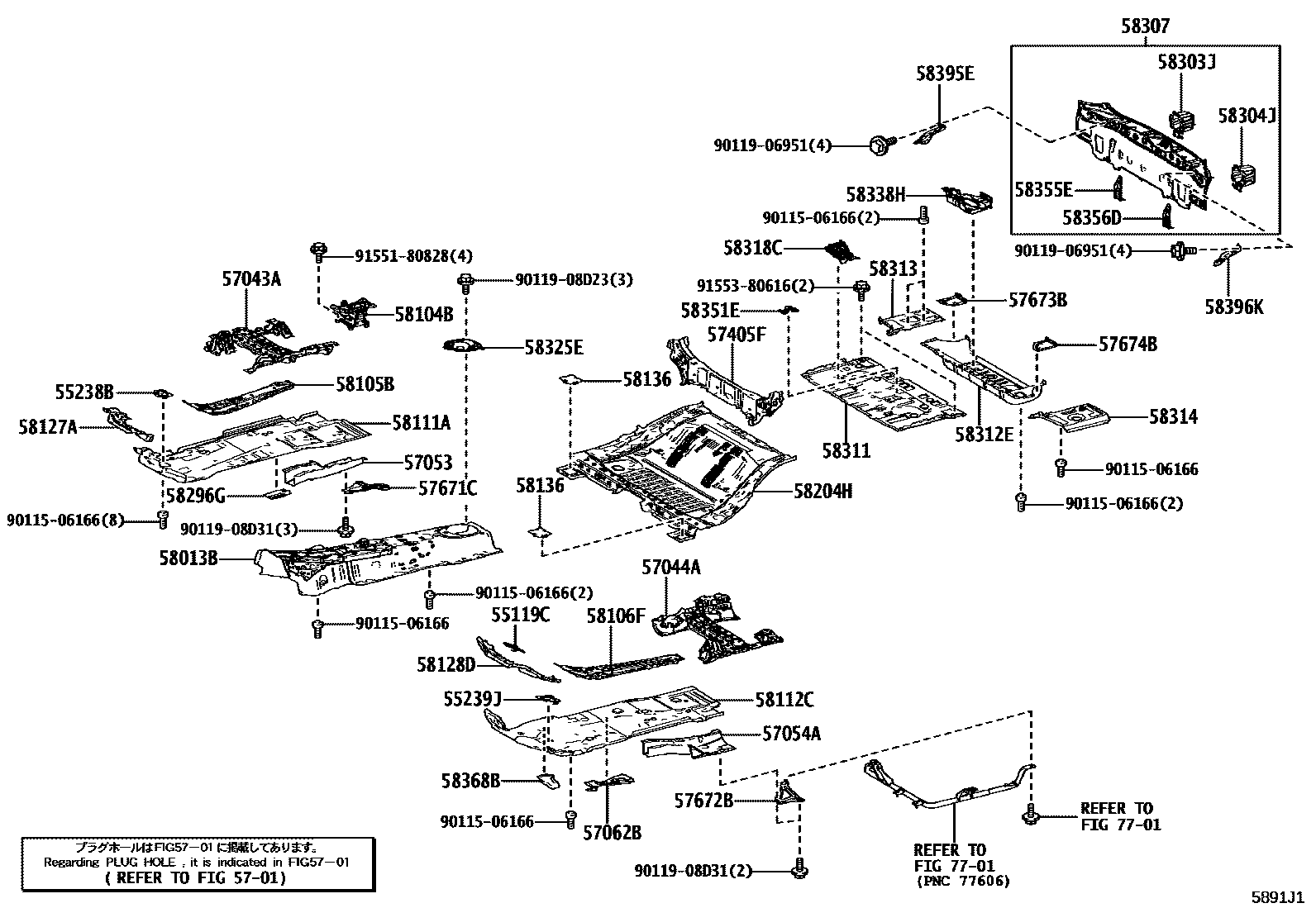

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

55119CBRACKET, CLUTCH BOOSTER

main55119-30020iAZSH39202405

55238BPLATE, DASH PANEL INSULATOR, LOWER RH

main55238-42010iAZSH38202405

55239JPLATE, DASH PANEL INSULATOR, LOWER LH

main55239-42010iAZSH38202405

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-30030iAZSH38202405

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-30030iAZSH38202405

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-30130iAZSH38202405

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-30150iAZSH38202405

main57054-30160iAZSH39202409

57062BBRACKET SUB-ASSY, FUEL TANK SUPPORT, LH

main57062-78040iAZSH38202405

57405FMEMBER SUB-ASSY, CENTER FLOOR CROSS, REAR

main57405-30100iAZSH38202405

57671CBRACE, REAR FLOOR NO.1 CROSSMEMBER, RH

main57671-30020iAZSH38202405

57672BBRACE, REAR FLOOR NO.1 CROSSMEMBER, LH

main57672-30020iAZSH38202405

57673BBRACE, REAR FLOOR NO.2 CROSSMEMBER, RH

main57673-30030iAZSH38202405

57674BBRACE, REAR FLOOR NO.2 CROSSMEMBER, LH

main57674-30040iAZSH38202405

58013BPANEL SUB-ASSY, FRONT FLOOR, CENTER

main58013-30550iAZSH38202405

main58013-30620iAZSH39202409

58104BBRACKET SUB-ASSY, FRONT SEAT MOUNTING, INSIDE, LH

main58104-30041iAZSH38202405

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-78010iAZSH38202405

58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH

main58106-78010iAZSH38202405

58111APAN, FRONT FLOOR, RH

main58111-30511iAZSH38202405

58112CPAN, FRONT FLOOR, LH

main58112-30250iAZSH38202405

58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-30050iAZSH38202405

58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH

main58128-30010iAZSH38202405

58136COVER, FRONT FLOOR HOLE

main58136-42030iAZSH39202405

58204HPAN SUB-ASSY, CENTER FLOOR, REAR

main58204-30061iAZSH38202405

main58204-30081iAZSH39202409

58296GBRACKET, FRONT FLOOR BRACE MOUNTING

main58296-30021iAZSH38202405

58303JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH

main58303-30140iAZSH39202405

58304JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH

main58304-30050iAZSH38202405

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-30A41iAZSH38202405

58311PAN, REAR FLOOR

main58311-30470iAZSH38202405

main58311-30500iAZSH39202409

58312EPANEL, REAR FLOOR, REAR

main58312-30060iAZSH38202405

58313PANEL, REAR FLOOR SIDE, RH

main58313-30260iAZSH38202405

58314PANEL, REAR FLOOR SIDE, LH

main58314-30300iAZSH38202405

58318CBRACKET, REAR FLOOR CROSSMEMBER

main58318-30030iAZSH39202405

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-30110iAZSH38202405

main58325-30120iAZSH39202409

58338HREINFORCEMENT, REAR FLOOR PAN, NO.2 RH

main58338-30070iAZSH38202405

58351EBRACKET, SPARE WHEEL CLAMP

main58351-12070iAZSH38202405

58355EBRACKET, REAR BUMPER ARM, RH

main58355-30041iAZSH39202405

58356DBRACKET, REAR BUMPER ARM, LH

main58355-30041iAZSH38202405

58368BBRACKET, FUEL TUBE, NO.2

main58368-30070iAZSH39202409

main58368-42010iAZSH38202405

58395EGUSSET, BACK DOOR OPENING, LOWER RH

main58395-30020iAZSH38202405

58396KGUSSET, BACK DOOR OPENING, LOWER LH

main58396-30050iAZSH38202405

7701

9011506166

main90115-06166

9011906951

main90119-06951

9011908D23

main90119-08D23

9011908D31

main90119-08D31

9155180828

main91551-80828

9155380616

main91553-80616

48 parts on this diagram · 2 diagrams in section
