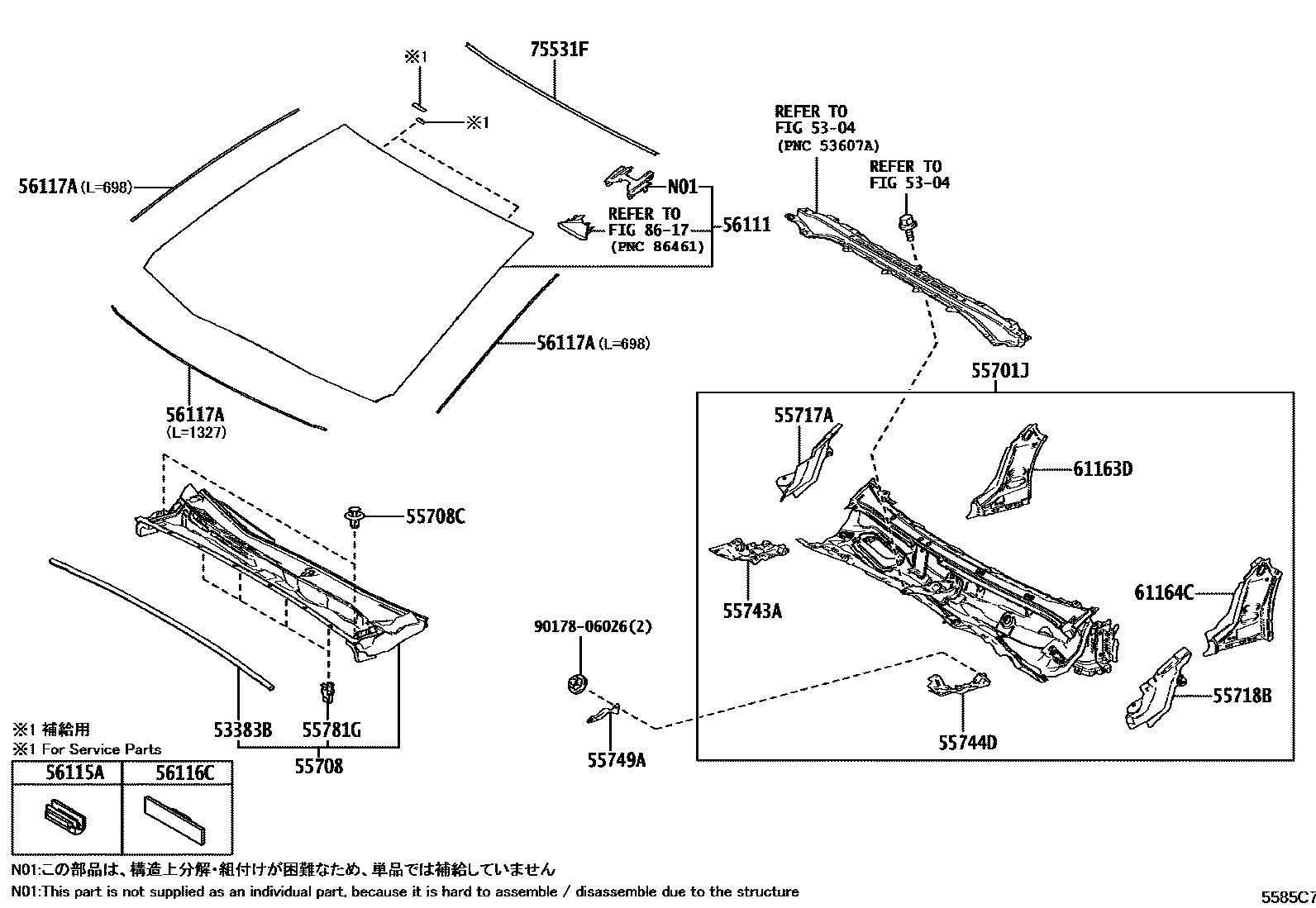

COWL PANEL & WINDSHIELD GLASS

5304

53383BSEAL, HOOD TO COWL TOP

main53383-30290iAZSH38202405

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-30370iAZSH38202405

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-30280iAZSH38202405

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242iAZSH38202405

55717APANEL, COWL TOP SIDE, INNER RH

main55717-30120iAZSH38202405

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-30140iAZSH38202405

55743AEXTENSION, COWL TO COWL SIDE, RH

main55743-30140iAZSH38202405

55744DEXTENSION, COWL TO COWL SIDE, LH

main55744-30150iAZSH38202405

55749ABRACE, COWL TOP INNER TO PILLAR, LH

main55749-30080iAZSH38202405

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-09241iAZSH38202405

56111GLASS, WINDSHIELD

main56101-3F935iAZSH38..M202405

main56101-3F938iAZSH38..G202405

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30110iAZSH38202405

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAZSH38202405

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010iAZSH38202405

*D,L=1327 OR 698

main56117-64010iAZSH38202405

*D,L=1327 OR 698,ETC-WITH(FOR CHINA)

61163DPILLAR, FRONT BODY, LOWER INNER RH

main61163-30100iAZSH38202405

61164CPILLAR, FRONT BODY, LOWER INNER LH

main61164-30100iAZSH38202405

75531FMOULDING, WINDSHIELD, OUTSIDE UPPER

main75531-30410iAZSH38202405

8617

9017806026

main90178-06026

20 parts on this diagram · 1 diagram in section
