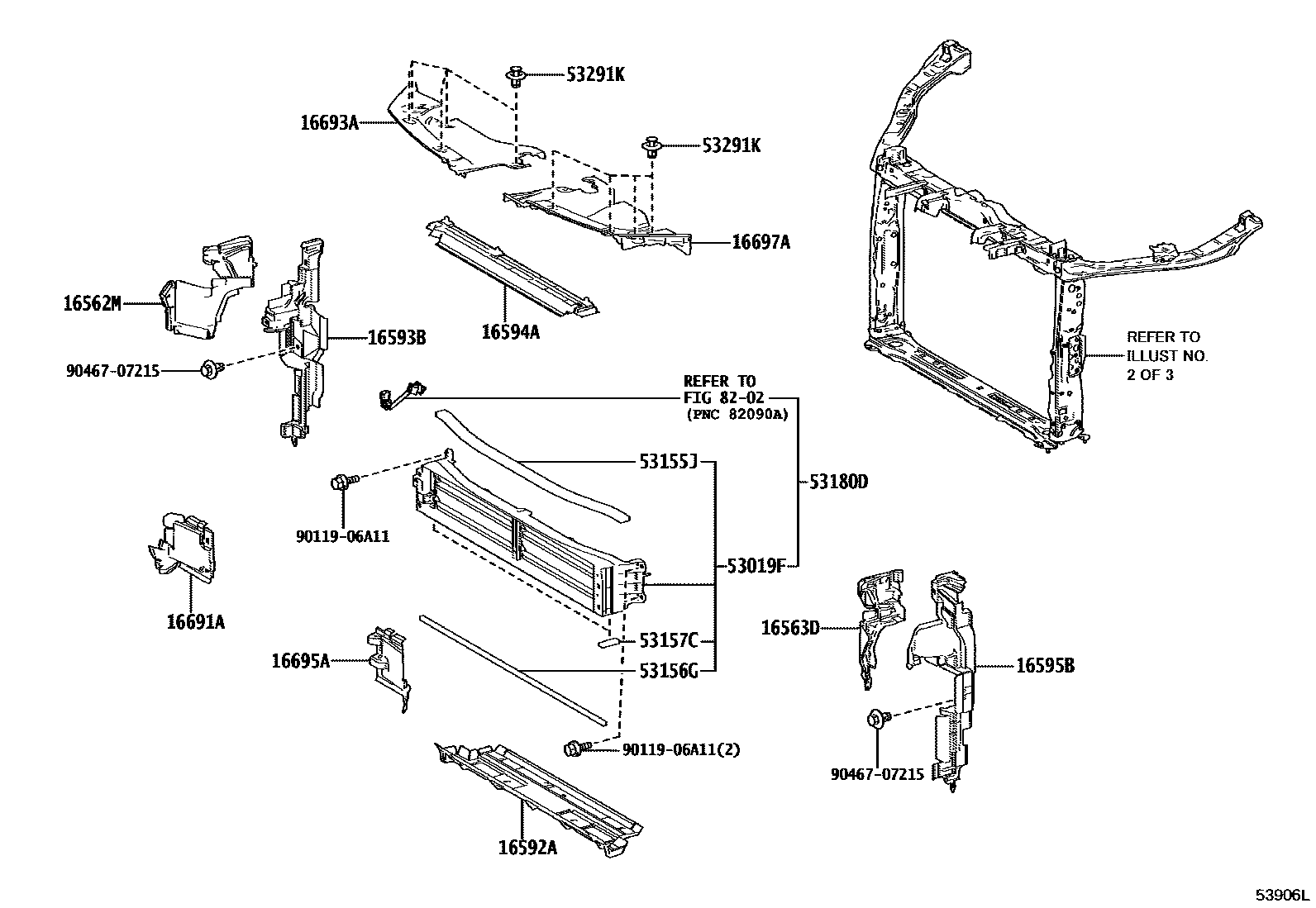

FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE 0002 1AIR GUIDE 0003 1RADIATOR SUPPORT & FENDER APR0004 1DASH PANEL

16562MSEAL, RADIATOR TO SUPPORT, NO.2

main16562-25080iA25..AZSH39¥1,730202405

16563DSEAL, RADIATOR TO SUPPORT, NO.3

main16563-25060iA25..AZSH38¥1,650202405

16592AGUIDE, RADIATOR AIR, NO.3

main16592-25090iA25..AZSH38¥3,850202405

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-25410iA25..AZSH39¥2,440202409

main16593-25530iA25..AZSH38¥2,610202405

16594AGUIDE, RADIATOR AIR, NO.2

main16594-25020iA25..AZSH3#¥2,380202405-202501

main16594-25050iA25..AZSH3#202501

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-25390iA25..AZSH39¥2,770202409

main16595-25500iA25..AZSH38¥2,510202405

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-25220iA25..AZSH38¥1,330202405

16693APLATE, RADIATOR SIDE AIR GUIDE, REAR RH

main16693-25060iA25..AZSH39¥3,940202405

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-25230iA25..AZSH38¥1,330202405

main16695-25250iA25..AZSH39¥1,430202409

16697APLATE, RADIATOR SIDE AIR GUIDE, REAR LH

main16697-25060iA25..AZSH38¥4,480202405

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-33020iAZSH38¥9,100202405

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-33120iAZSH38¥550202405

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-33010iAZSH38¥370202405

53157CSEAL, RADIATOR GRILLE, NO.3

main53157-33010iAZSH38¥370202405

53180DSHUTTER ASSY, RADIATOR

main53180-33092iAZSH38¥20,600202405

53291KCLIP, RADIATOR COVER PLATE

main90467-10216iAZSH38¥100202405

8202

9011906A11

main90119-06A11¥60

9046707215

main90467-07215¥80

19 parts on this diagram · 4 diagrams in section
