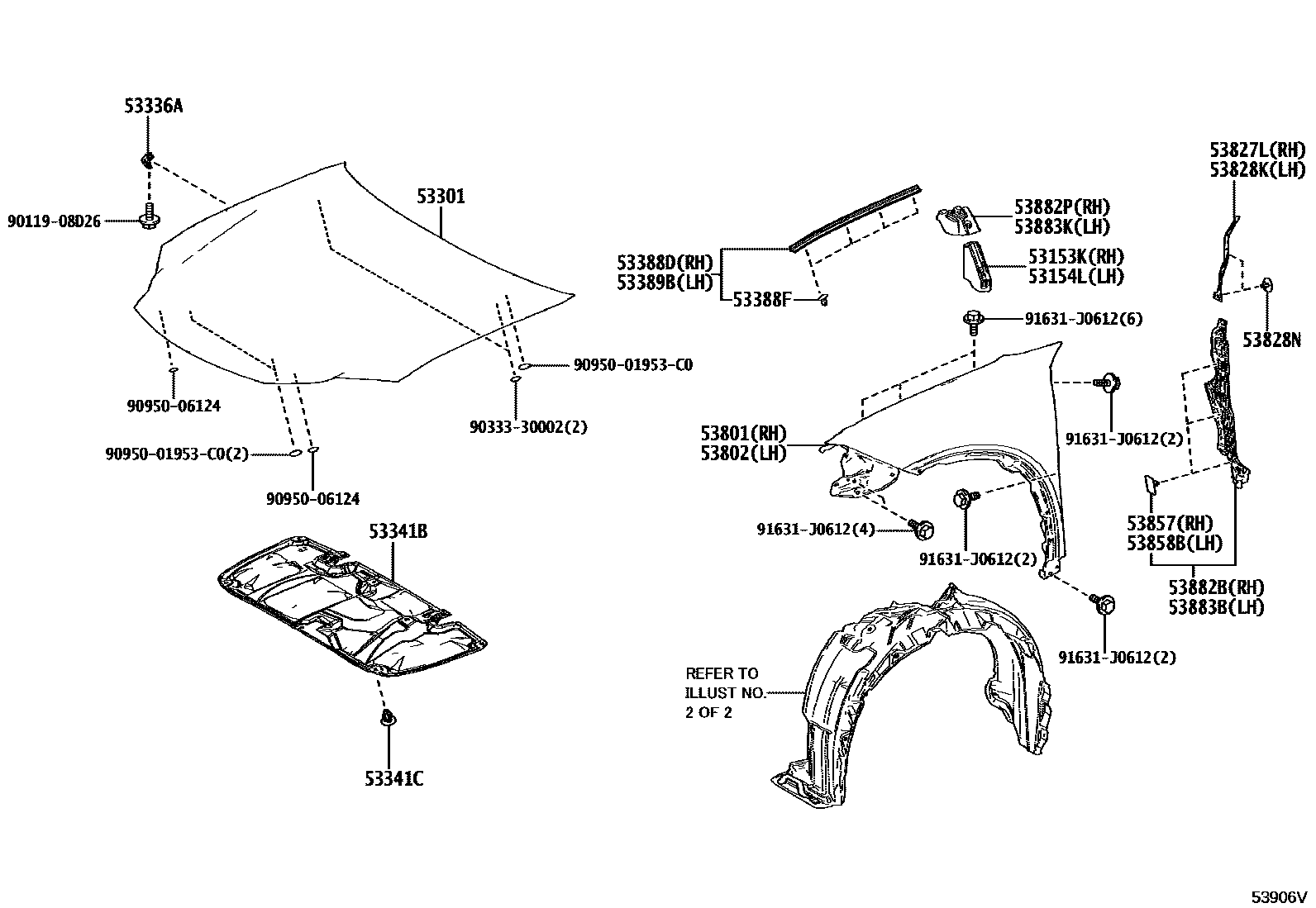

HOOD & FRONT FENDER

0001 1 0002 1

53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-30360iAZSH3#202405

53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-30350iAZSH3#202405

53301HOOD SUB-ASSY

main53301-30590iAZSH3#202405

53336ABRACKET, HOOD STAY

main53336-42010iAZSH3#202405

53341BINSULATOR, HOOD

main53341-30380iAZSH3#202405

53341CCLIP(FOR HOOD INSULATOR)

main90467-07229iAZSH3#202405

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-30150iAZSH3#202405

53388FRETAINER, HOOD TO FRONT FENDER SEAL

main67867-12150iAZSH3#202405

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-30140iAZSH3#202405

53801FENDER SUB-ASSY, FRONT RH

main53801-30B30iAZSH3#202405

53802FENDER SUB-ASSY, FRONT LH

main53802-30B20iAZSH3#202405

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-30140iAZSH3#202405

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-30150iAZSH3#202405

53828NCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1

main90467-06205-C0iAZSH3#202405

BLACK

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iAZSH3#202405

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iAZSH3#202405

53882BSEAL, FRONT FENDER, RH

main53882-30130iAZSH3#202405

53882PSEAL, FRONT FENDER, RH

main53155-30150iAZSH3#202405

53883BSEAL, FRONT FENDER, LH

main53883-30100iAZSH3#202405

53883KSEAL, FRONT FENDER, LH

main53156-30070iAZSH3#202405

9011908D26

main90119-08D26

9033330002

main90333-30002

9095001953C0

main90950-01953C0

9095006124

main90950-06124

91631J0612

main91631-J0612

25 parts on this diagram · 2 diagrams in section
