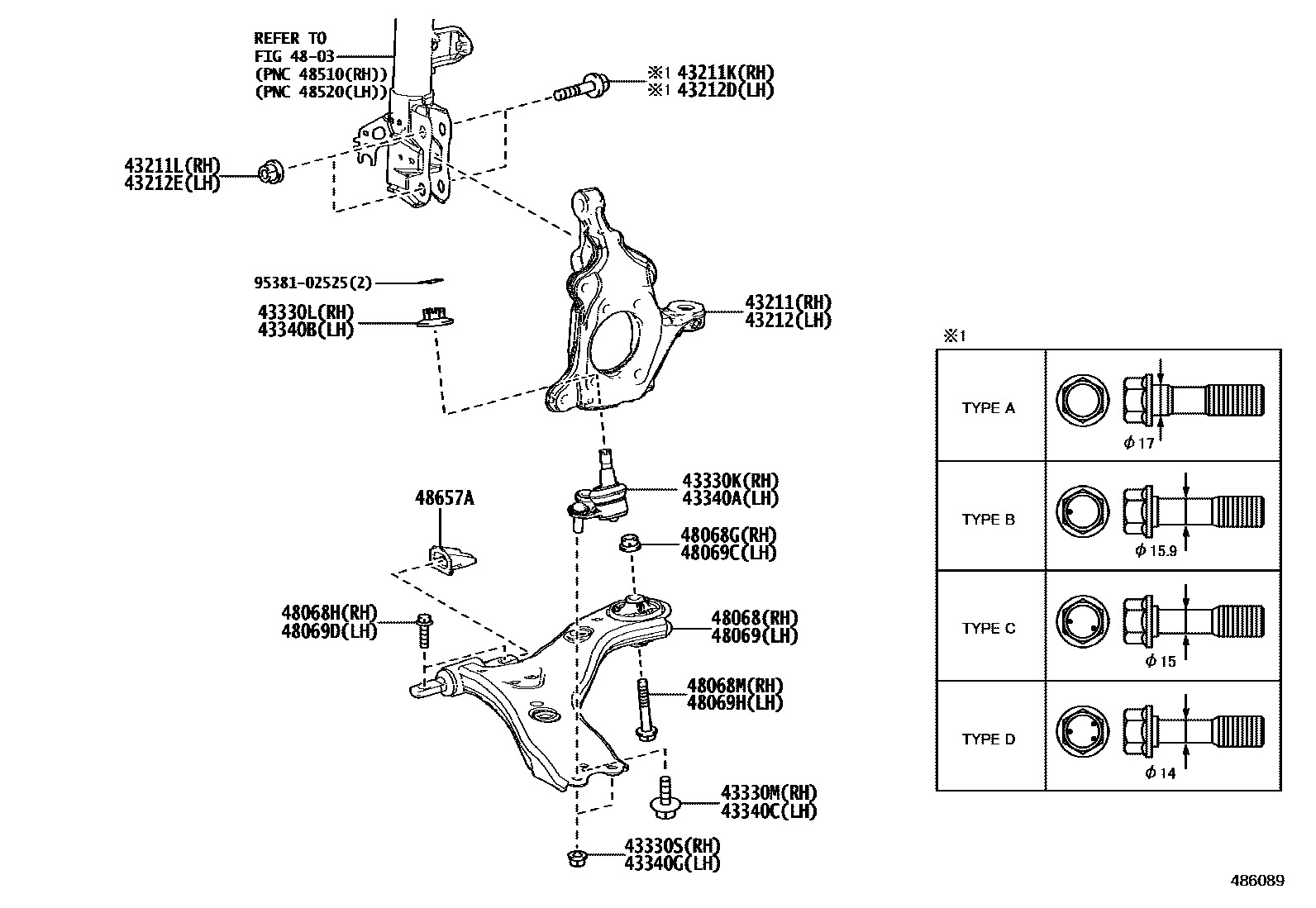

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43201-42010iAZSH38202405

main43201-48020iAZSH39202409

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17013iAZSH39202405

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014iAZSH39202405

OD=15,TYPE C:REFER ILLUST.

main90105-17015iAZSH38202405

OD=14,TYPE D:REFER ILLUST.

main90105-17021iAZSH38202405

OD=17

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002iAZSH38202405

43212KNUCKLE, STEERING, LH

main43202-42010iAZSH38202405

main43202-48020iAZSH39202409

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17013iAZSH38202405

OD=15.9,TYPE B:REFER ILLUST.

main90105-17014iAZSH39202405

OD=15,TYPE C:REFER ILLUST.

main90105-17015iAZSH38202405

OD=14,TYPE D:REFER ILLUST.

main90105-17021iAZSH38202405

OD=17,TYPE A:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002iAZSH38202405

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-49235iAZSH38202405

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14017iAZSH38202405

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12407iAZSH39202405

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12019iAZSH38202405

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-49235iAZSH38202405

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14017iAZSH38202405

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12407iAZSH38202405

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12019iAZSH38202405

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-30320iAZSH38202405

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90179-14068iAZSH38202405

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-16092iAZSH38202405

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14180iAZSH38202405

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-30320iAZSH38202405

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90179-14068iAZSH38202405

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-16092iAZSH38202405

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14180iAZSH38202405

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-28010iAZSH38202405

9538102525

main95381-02525

25 parts on this diagram · 1 diagram in section
