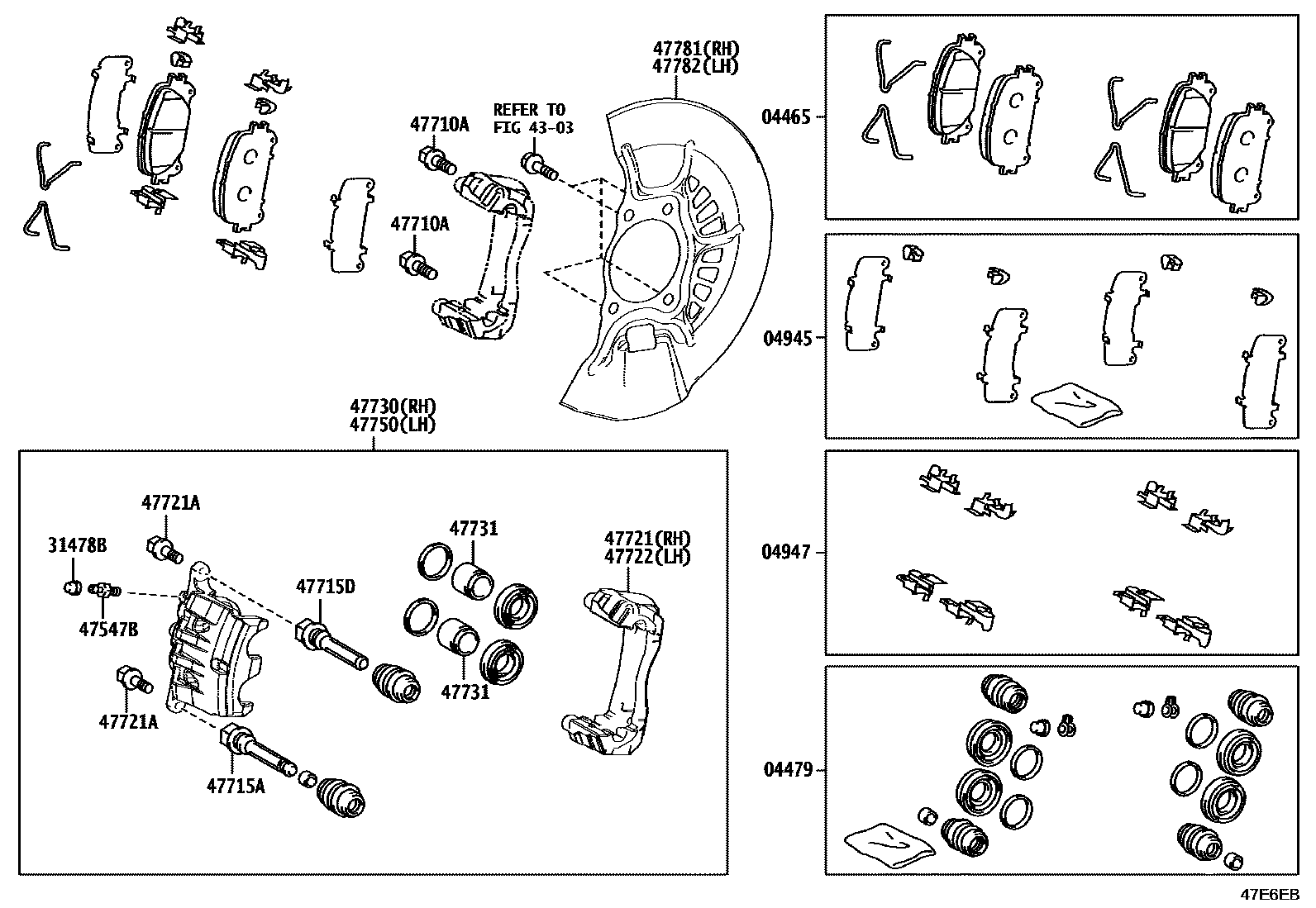

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-48260iAZSH39¥11,300202409

MARK ADVICS VC115

main04465-78010iAZSH38¥10,700202405

MARK ADVICS VC084H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-48200iAZSH38¥2,700202405

main04478-48210iAZSH39202409

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-48150iAZSH38¥1,250202405

main04945-48200iAZSH39¥1,460202409

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48080iAZSH38¥1,670202405

main04947-48090iAZSH39¥1,670202409

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iAZSH3#¥160202405

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iAZSH38¥160202405

main47547-20010iAZSH39¥200202409

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12401iAZSH38¥190202405

*12-1.25PX35.5-30

main90105-14212iAZSH39¥190202409

*14-1.5PX35.5-31

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48150iAZSH38¥230202405

main47715-48200iAZSH39202409

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-48200iAZSH39202409

main47715-48150iAZSH38¥230202405

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-48150iAZSH38¥6,700202405

main47721-48220iAZSH39¥7,300202409

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA602iAZSH38¥80202405

*8-1.00PX23-12.5

main90015-AA608iAZSH39¥100202409

*10-1.00PX23-9.4

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-48140iAZSH38¥6,700202405

main47722-48190iAZSH39¥7,300202409

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-48150iAZSH38¥37,400202405

main47730-48220iAZSH39¥37,400202409

47731PISTON, FRONT DISC BRAKE

main47731-48150iAZSH38¥1,060202405

main47731-48200iAZSH39¥1,260202409

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-48110iAZSH38¥37,400202405

main47750-48190iAZSH39¥37,400202409

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42060iAZSH3#¥1,240202405

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42060iAZSH3#¥1,240202405

18 parts on this diagram · 2 diagrams in section
