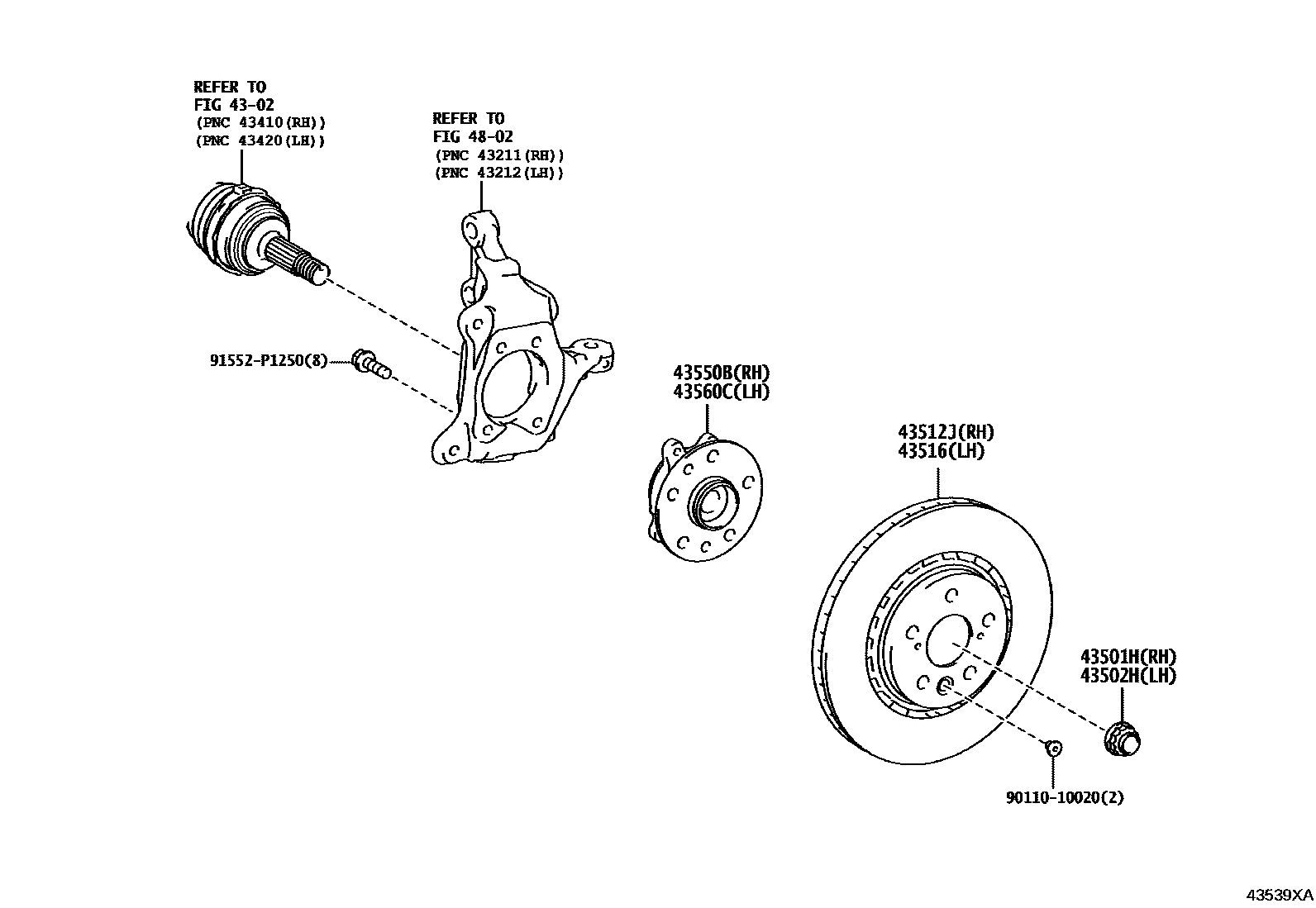

FRONT AXLE HUB

4302

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAZSH3#¥220202405

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAZSH3#¥220202405

43512JDISC, FRONT RH

main43512-78010iAZSH38¥10,100202405

main43512-78030iAZSH39¥10,400202409

43516DISC, FRONT LH

main43512-78010iAZSH38¥10,100202405

main43512-78030iAZSH39¥10,400202409

43550BHUB & BEARING ASSY, FRONT AXLE W/ABS SENSOR, RH

main43550-48040iAZSH3#¥13,600202405

43560CHUB & BEARING ASSY, FRONT AXLE W/ABS SENSOR, LH

main43550-48040iAZSH3#¥13,600202405

4802

9011010020

main90110-10020¥60

91552P1250

main91552-P1250¥190

10 parts on this diagram · 1 diagram in section
