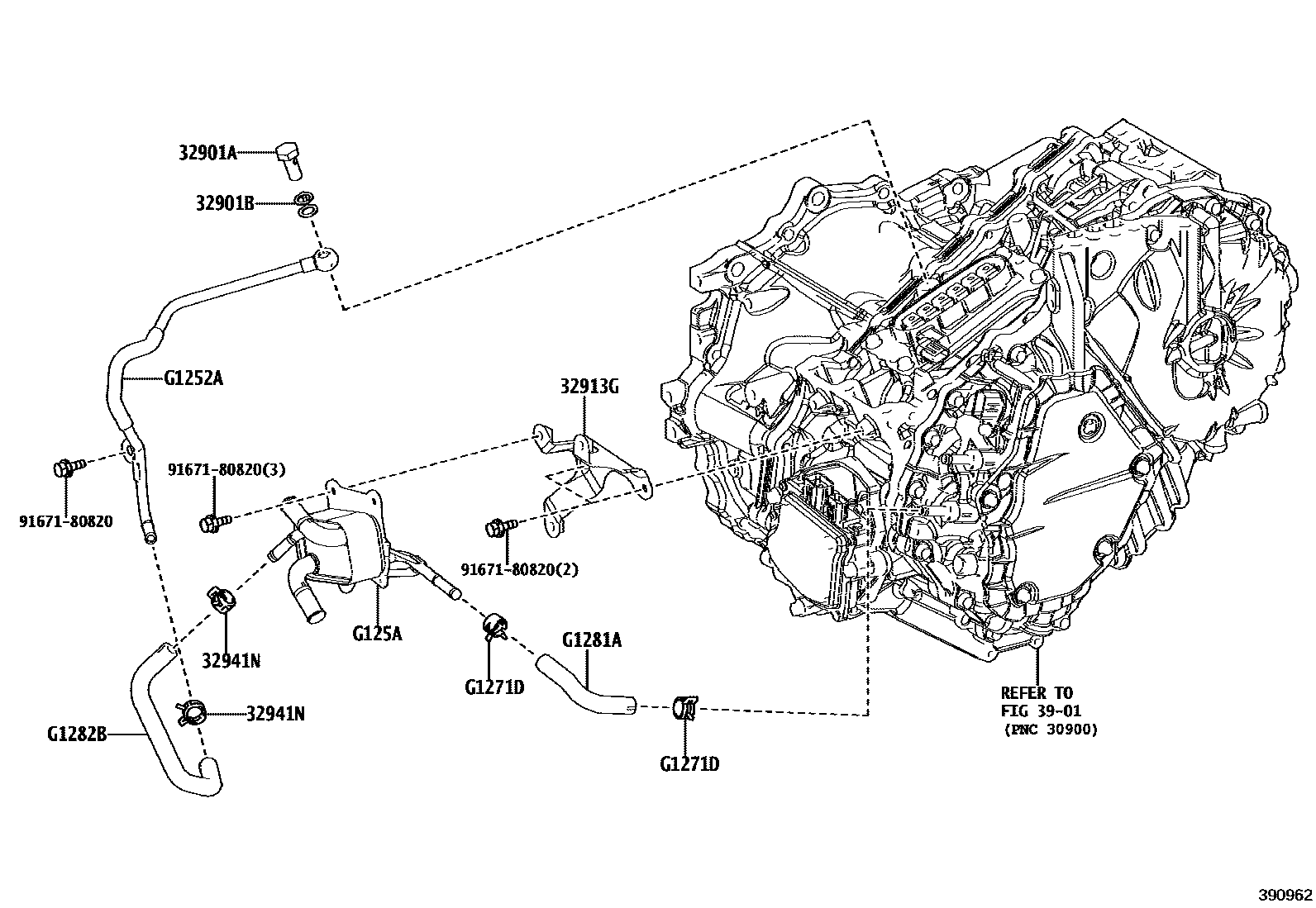

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

0001 1 0002 1

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iAZSH38¥390202405

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iAZSH38¥80202405

32913GBRACKET, TRANSMISSION OIL COOLER

main32913-42050iAZSH39¥520202409

main32913-78030iAZSH38¥820202405

32941NCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iAZSH38¥180202405

3901

G1252APIPE, MOTOR COOLING, NO.2

mainG125242010iAZSH39202409

mainG125278010iAZSH38202405

G125ACOOLER, MOTOR COOLING

mainG125A48020iAZSH39202405

G1271DCLIP, NO.1(FOR MOTOR COOLING HOSE)

main90466-16004iAZSH38¥180202405

G1281AHOSE, MOTOR INLET

mainG128178010iAZSH38202405

G1282BHOSE, MOTOR OUTLET

mainG128278010iAZSH38202405

9167180820

main91671-80820¥80

11 parts on this diagram · 2 diagrams in section
