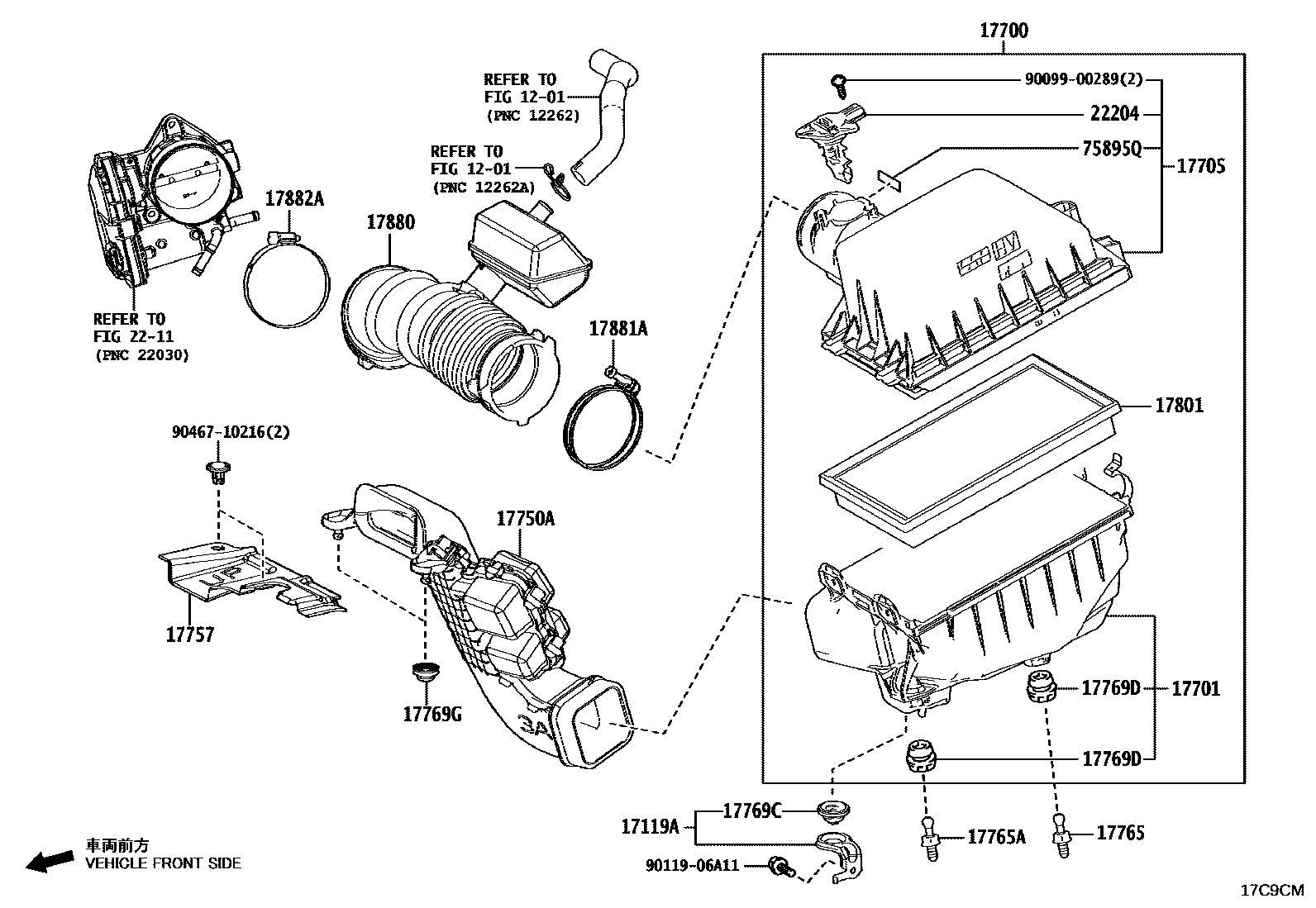

AIR CLEANER

1201

17119ABRACKET, AIR CLEANER

main17119-25010iA25..AZSH38202405

17700CLEANER ASSY, AIR

main17700-25171iA25..AZSH38202405

17701CASE SUB-ASSY, AIR CLEANER

main17701-25111iA25..AZSH38202405

17705CAP SUB-ASSY, AIR CLEANER

main17705-25070iA25..AZSH38202405

17750AINLET ASSY, AIR CLEANER

main17750-25150iA25..AZSH38202405

17757GUIDE, AIR CLEANER OUTLET

main17757-25020iA25..AZSH38202405

17765STAY, AIR CLEANER, NO.1

main17765-25010iA25..AZSH38202405

17765ASTAY, AIR CLEANER, NO.1

main17765-25010iA25..AZSH38202405

17769CSUPPORT, AIR CLEANER, NO.1

main17769-25020iA25..AZSH38202405

17769DSUPPORT, AIR CLEANER, NO.2

main17769-25030iA25..AZSH38202405

17769GSUPPORT, AIR CLEANER, NO.3

main17769-25070iA25..AZSH38202405

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-77050iA25..AZSH38202405

17880HOSE ASSY, AIR CLEANER

main17880-25040iA25..AZSH38202405

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850iA25..AZSH38202405

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-31010iA25..AZSH38202405

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040iA25..AZSH38202405

75895QTAPE, MOULDING, NO.1

main75895-52050iAZSH38202405

9009900289

main90099-00289

9011906A11

main90119-06A11

9046710216

main90467-10216

22 parts on this diagram · 1 diagram in section
