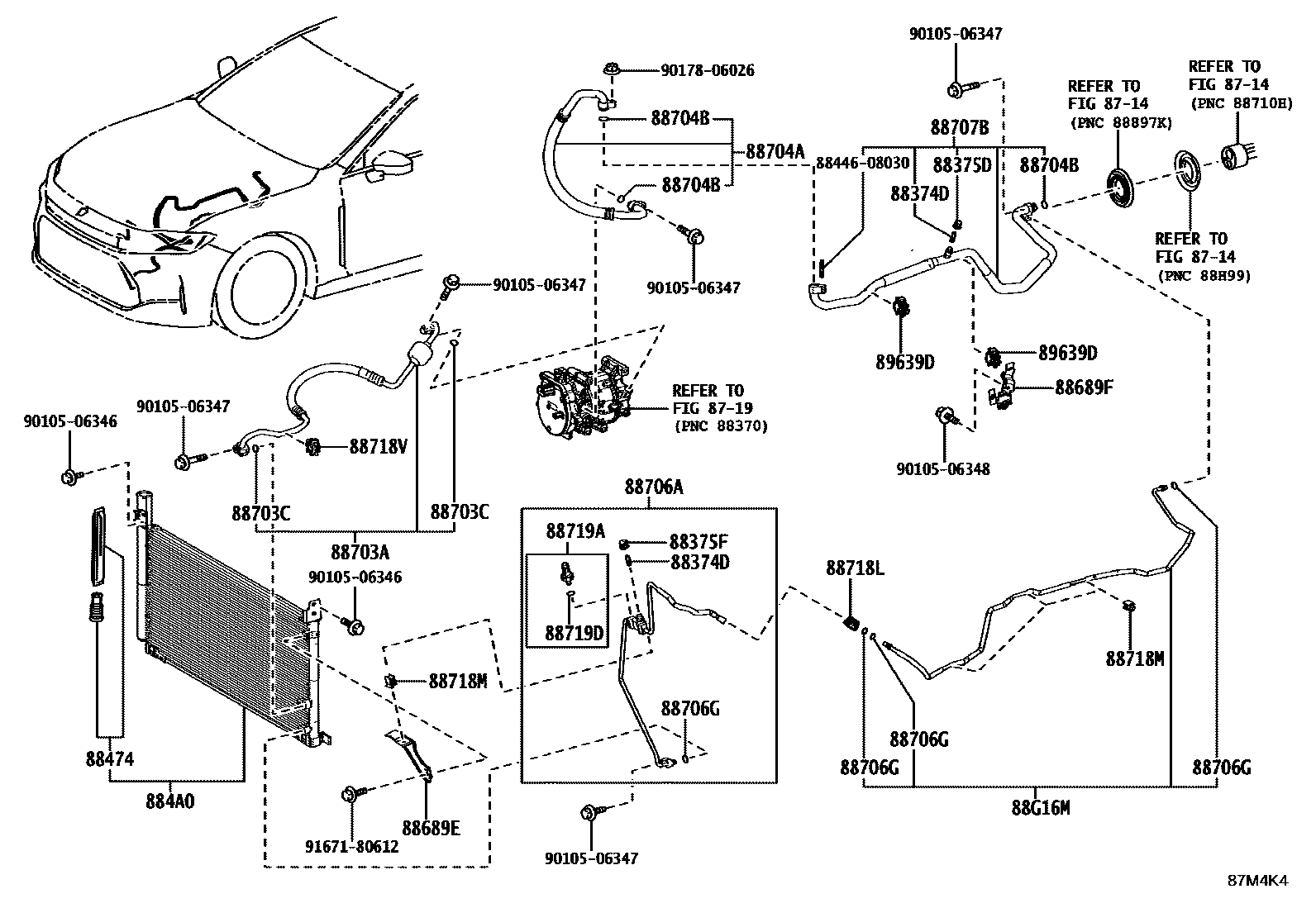

HEATING & AIR CONDITIONING - COOLER PIPING

8714

8719

88374DVALVE, SERVICE NO.3

main88374-30010iAZSH32202405

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iAZSH32202405

88375FCAP, SERVICE VALVE, NO.3

main88375-30280iAZSH32202405

88474DRYER, COOLER

main88474-12020iAZSH32202405

884A0CONDENSER ASSY, COOLER

main884A0-30040iAZSH32202405

88689EBRACKET, COOLER, NO.1

main88688-50390iAZSH32202405

88689FBRACKET, COOLER, NO.2

main88688-50420iAZSH32202405

88703AHOSE SUB-ASSY, DISCHARGE, NO.1

main88703-30A20iAZSH32202405

88703CRING, O(FOR DISCHARGE HOSE)

main90099-14120iAZSH32202405

ID=10.8,OD=15.6

88704AHOSE SUB-ASSY, SUCTION, A

main88704-30890iAZSH32202405

88704BRING, O(FOR SUCTION HOSE)

main90099-14121iAZSH32202405

ID=13.4,OD=18.2

88706ATUBE SUB-ASSY, LIQUID, A

main88706-30B00iAZSH32202405

88706GRING, O(FOR LIQUID TUBE)

main90099-14119iAZSH32202405

ID=6.7,OD=10.3

88707BTUBE SUB-ASSY, SUCTION, B

main88707-30C00iAZSH32202405

88718LCLAMP, PIPING

main88718-2D150iAZSH32202405

88718MCLAMP, PIPING

main88718-50390iAZSH32202405

88718VCLAMP, NO.7(FOR COOLER REFRIGERANT PIPE)

main88718-30A30iAZSH32202405

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iAZSH32202405

88719DRING, O(FOR AIR CONDITIONER PRESSURE SENSOR)

main90099-14122iAZSH32202405

ID=10.6,OD=14.16

88G16MTUBE, LIQUID, NO.1

main88716-30D30iAZSH32202405

89639DCLAMP, AIRCONDITIONER TUBE

main89639-58020iAZSH32202405

8844608030BOLT, IDLE PULLEY

main88446-08030

9010506346

main90105-06346

9010506347

main90105-06347

9010506348

main90105-06348

9017806026

main90178-06026

9167180612

main91671-80612

29 parts on this diagram · 1 diagram in section
