HORN

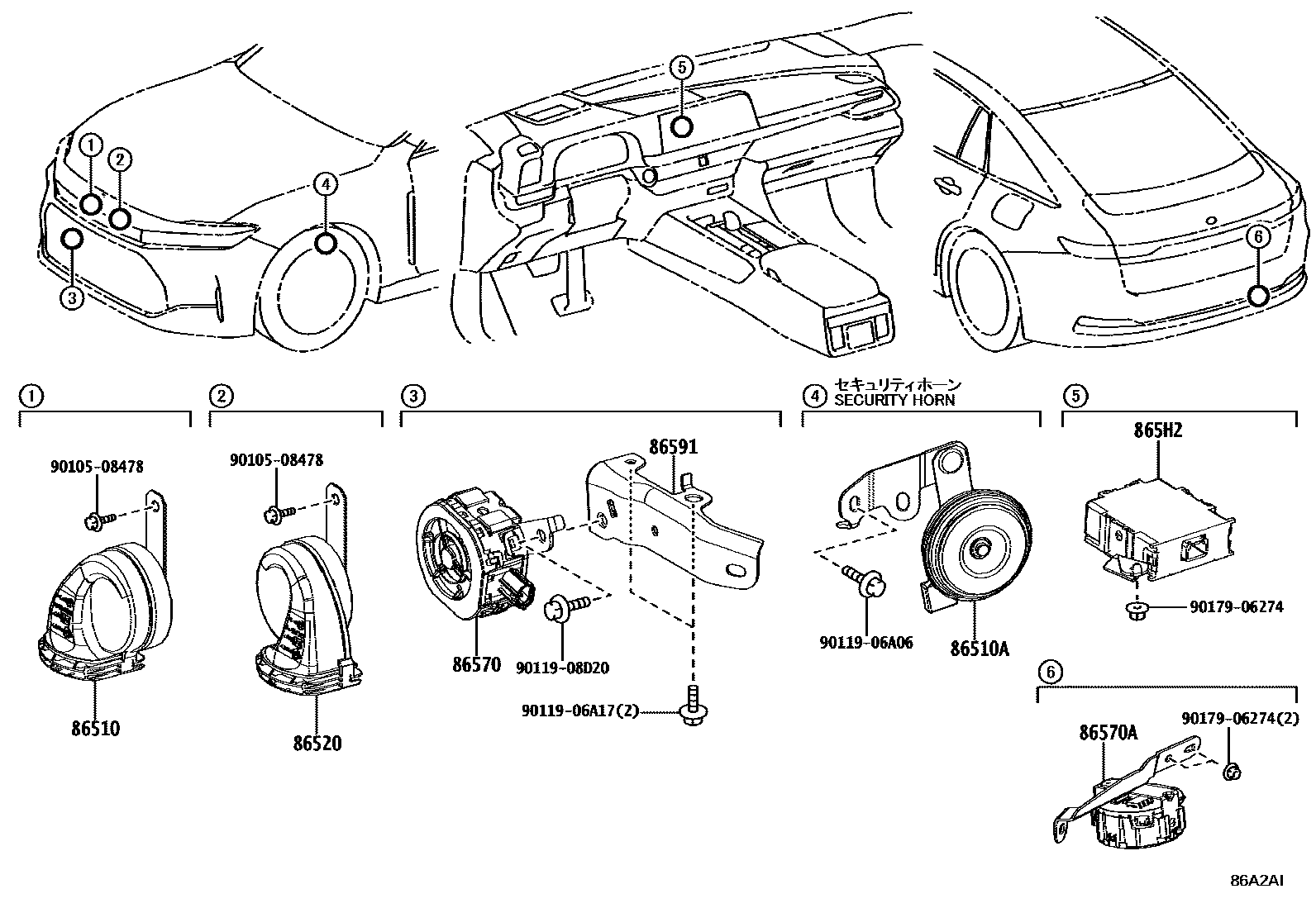

Parts diagram
86510HORN ASSY, HIGH PITCHED
main86510-78020i202405
86510AHORN ASSY, SECURITY
main86560-50030i202405
86520HORN ASSY, LOW PITCHED
main86520-78020i202405
86570SPEAKER ASSY, VEHICLE APPROACHING
main86570-62040i202405
86570ASPEAKER ASSY, VEHICLE APPROACHING, NO.2
main86570-30130i202405
86591BRACKET, HORN
main82715-62610i202405
865H2CONTROLLER, SPEAKER
main865H2-30060i202405
9010508478
9011906A06
9011906A17
9011908D20
9017906274

12 parts on this diagram · 1 diagram in section
