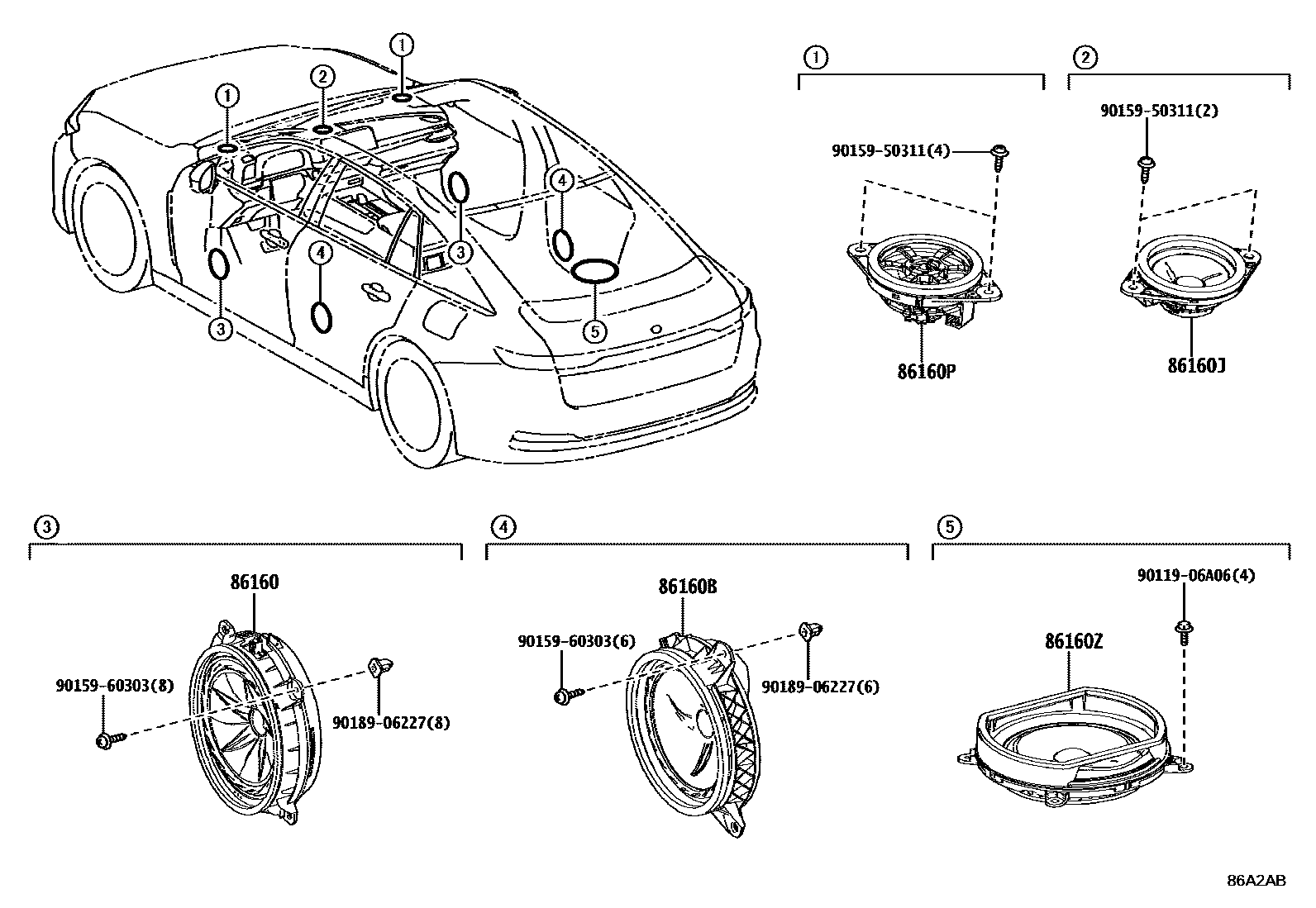

SPEAKER

0001 110SPEAKER 0002 114SPEAKER 0003 1EQUALIZER

86160SPEAKER ASSY, FRONT NO.1

main86150-30700iAZSH32..G202405

main86160-30F60iAZSH32..M202405

86160BSPEAKER ASSY, REAR

main86150-30720iAZSH32..G202405

main86160-30F40iAZSH32..M202405

86160JSPEAKER ASSY, FRONT NO.3

main86150-30750iAZSH32..G202405

main86160-30F20iAZSH32..M202405

86160PSPEAKER ASSY, FRONT NO.2

main86150-30740iAZSH32..G202405

main86160-30F30iAZSH32..M202405

86160ZSPEAKER ASSY, REAR NO.3

main86150-30670iAZSH32202405

9011906A06

main90119-06A06

9015950311

main90159-50311

9015960303

main90159-60303

9018906227

main90189-06227

9 parts on this diagram · 3 diagrams in section
