WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE 1/3 0004 1ENGINE 2/3 0005 1ENGINE 3/3 0006 1INSTRUMENT PANEL 0007 1DOOR 0008 1FLOOR & ROOF 0009 1HIGH VOLTAGE CABLE 0010 1SEAT 0011 1CLAMP & BRACKET 1/2 0012 1CLAMP & BRACKET 2/2

82111WIRE, ENGINE ROOM MAIN

main82111-3FU30iAZSH32..M202405

main82111-3FU70iAZSH32..G202405

82113AWIRE, FRONT COMPARTMENT, NO.3

main82113-50110iAZSH32202405

82114CWIRE, FRONT COMPARTMENT, NO.4

main82114-30600iAZSH32..M202405

main82114-30620iAZSH32..G202405

82119CWIRE, ENGINE ROOM, NO.5

main82119-50020iAZSH32202405

821H2WIRE, HV AIR CONDITIONER

main821H2-30010iAZSH32202405

82684LABEL, CUT HIGH VOLTAGE ELECTRICITY

main82684-48010iAZSH32202405

8417

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-50050iAZSH32..G202405

8266642720HOLDER, CONNECTOR

main82666-42720

828175AE80PROTECTOR, WIRING HARNESS, NO.1

main82817-5AE80

867F462010JOINT, WASHER HOSE

main867F4-62010

9011906A06

main90119-06A06

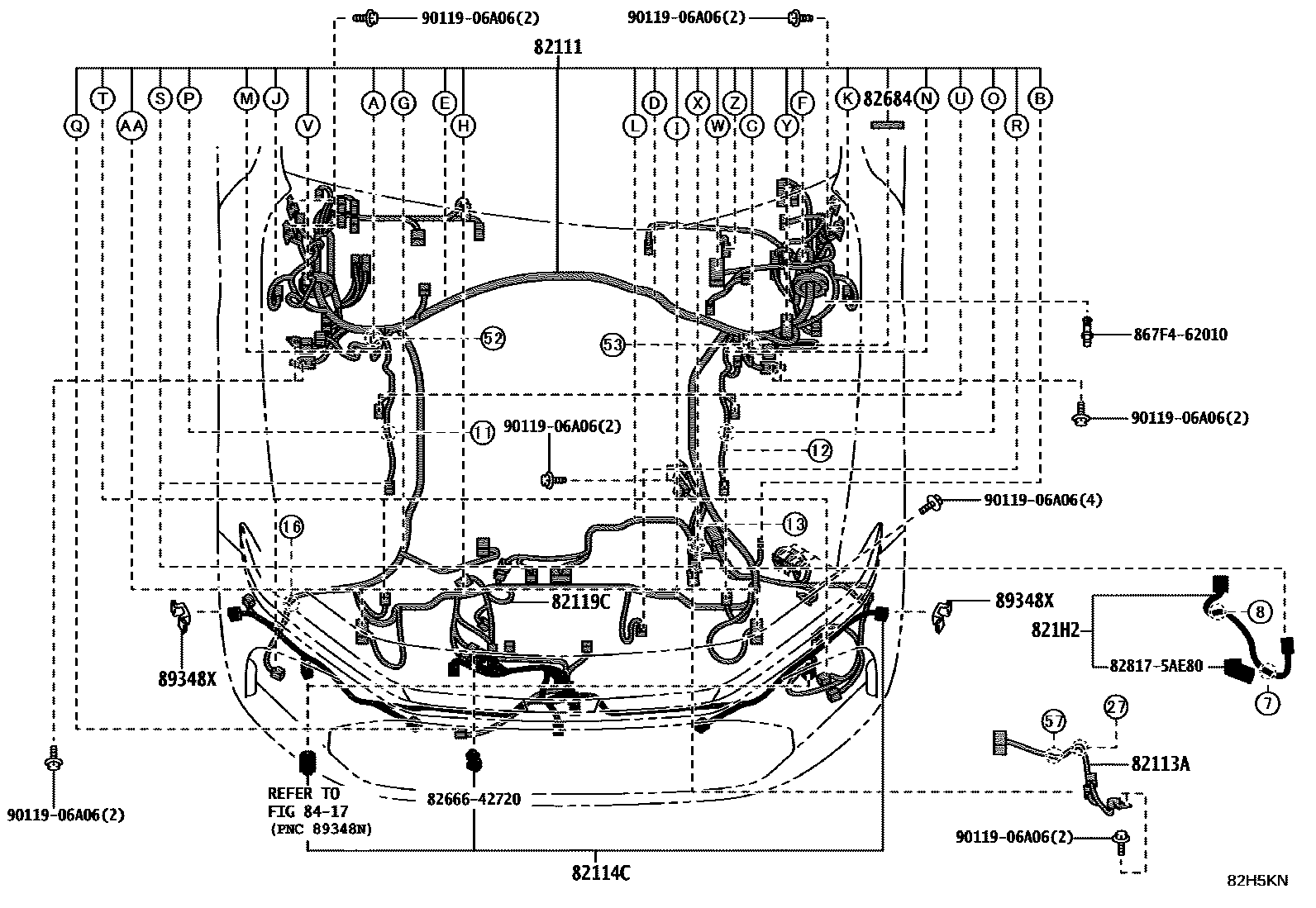

12 parts on this diagram · 12 diagrams in section
