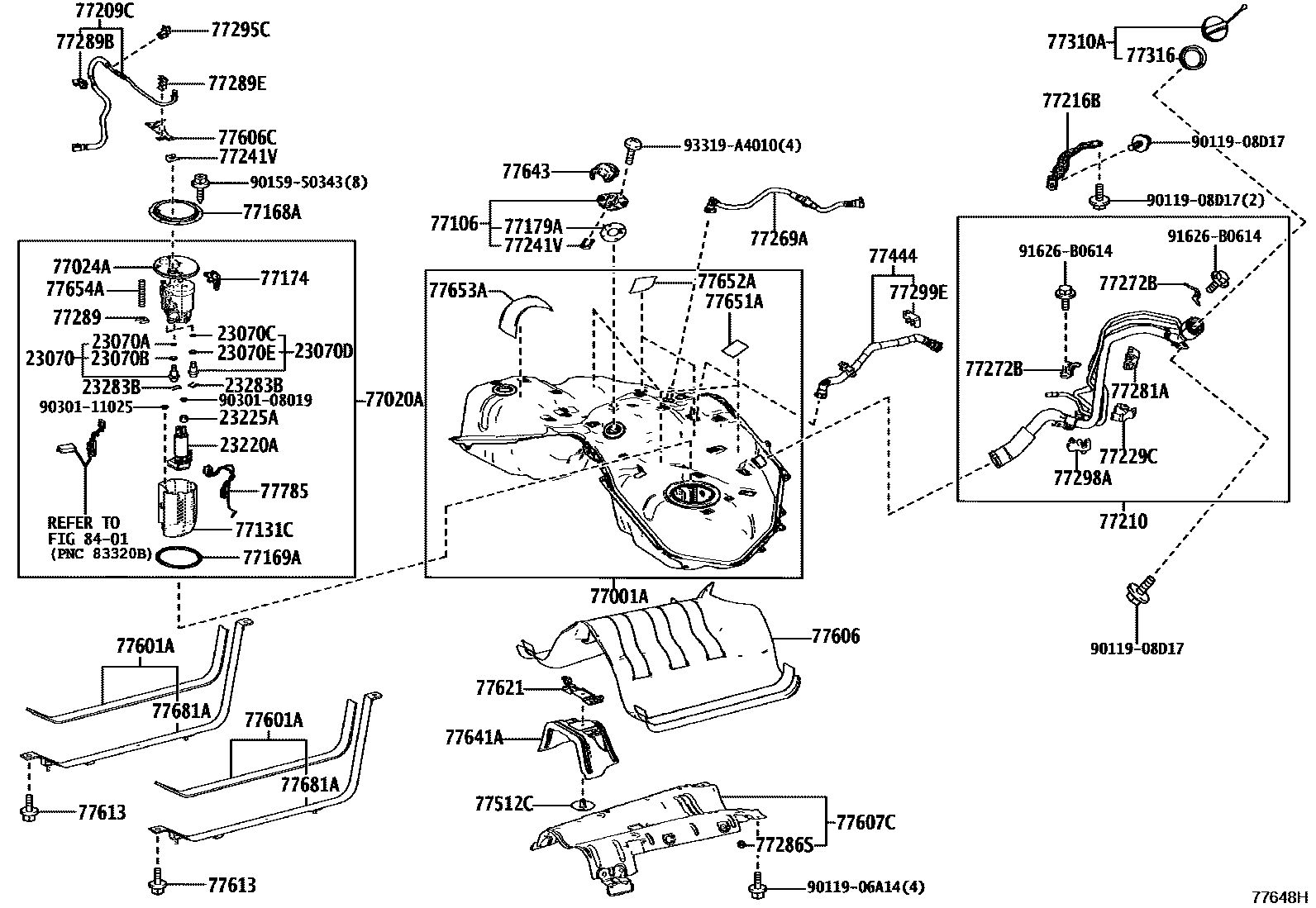

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
23070BRING, O, NO.2(FOR FUEL MAIN VALVE)
23070CRING, O, NO.3(FOR FUEL MAIN VALVE)
23070DVALVE ASSY, FUEL MAIN, NO.2
23070ERING, O, NO.4(FOR FUEL MAIN VALVE)
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23283BHOLDER, FUEL PRESSURE REGULATOR
77001ATANK SUB-ASSY, FUEL
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77106PLATE SUB-ASSY, FUEL TANK SIDE, REAR
77131CSUB-TANK, FUEL, NO.1
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77179AGASKET, FUEL TANK BREATHER TUBE
77209CTUBE SUB-ASSY, FUEL TANK MAIN
77210PIPE ASSY, FUEL TANK FILLER
77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2
77229CCLAMP, BREATHER TUBE
77241VCLIP, TUBE JOINT
77269AHOSE, FUEL TANK BREATHER
77272BSUPPORT, BREATHER TUBE, NO.1
77281BRACKET, FUEL MAIN TUBE, NO.1
77281ACLAMP, FUEL FILLER PIPE
77286SCUSHION, FUEL TANK PROTECTOR
77289HOLDER, FUEL TANK PIPE SETTING
77289BCLAMP, FUEL TUBE, NO.3
77289ECLAMP, FUEL TANK, NO.1
77295CGROMMET, FUEL TUBE
77298ACLAMP, FUEL TUBE, NO.4
77299ECLAMP (FOR CHARCOAL CANISTER PIPE)
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77444HOSE, FUEL TANK VENT
77512CBRACKET, FUEL TANK
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606CPROTECTOR, FUEL TANK, NO.2
77607CPROTECTOR SUB-ASSY, FUEL TANK, NO.2
77613BOLT, FUEL TANK BAND SET
77621BRACKET, FUEL TANK PROTECTOR
77641APROTECTOR, FUEL TANK, NO.1
77643RETAINER, FUEL TANK PROTECTOR
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77654ACUSHION, FUEL TANK, NO.4
77681ASEAT, FUEL TANK BAND
77785HARNESS, FUEL PUMP
8401
9011906A14
main90119-06A14
9011908D17
main90119-08D17
9015950343
main90159-50343
9030108019
main90301-08019
9030111025
main90301-11025
91626B0614
main91626-B0614
93319A4010
main93319-A4010
60 parts on this diagram · 4 diagrams in section
