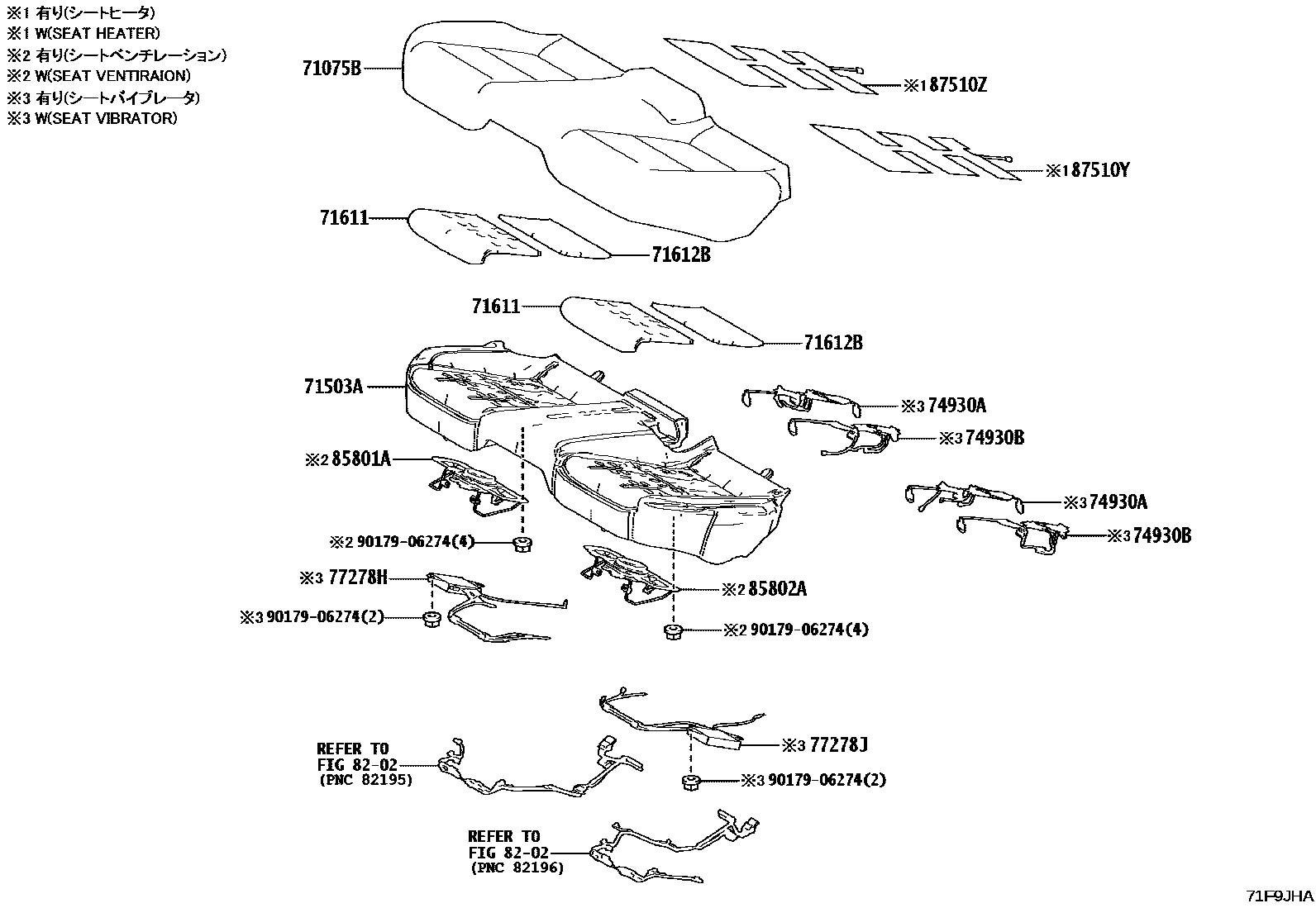

REAR SEAT & SEAT TRACK

0001 1SEAT CUSHION 0002 1SEAT BACK(FIXED TYPE) 0003 1SEAT BACK(POWER SEAT) 0004 1FITTING PARTS(FIXED TYPE) 0005 1FITTING PARTS(POWER SEAT)

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-30P40-C3iAZSH32..M202405

BLACK,TRIM2#

main71075-30P50-C4iAZSH32..G202405

BLACK,TRIM2#

main71075-30P50-E2iAZSH32..G202405

MD.BROWN,TRIM4#

71503APAD SUB-ASSY, REAR SEAT CUSHION

main71503-30360iAZSH32202405

71611PAD, REAR SEAT CUSHION

main71611-30810iAZSH32202405

71612BPAD, REAR SEAT CUSHION, B

main71612-30400iAZSH32202405

74930ACUSHION ASSY, MAIN STRETCHER, RH(FOR SEAT CUSHION)

74930BCUSHION ASSY, MAIN STRETCHER, LH(FOR SEAT CUSHION)

77278HVALVE, CHECK W/HOSE, RH(FOR SEAT CUSHION)

77278JVALVE, CHECK W/HOSE, LH(FOR SEAT CUSHION)

8202

85801ABLOWER SUB-ASSY, SEAT CUSHION CLIMATE, RH

main85801-30110iAZSH32..G202405-202506

85802ABLOWER SUB-ASSY, SEAT CUSHION CLIMATE, LH

main85801-30110iAZSH32..G202405-202506

87510YHEATER ASSY, REAR NO.1 SEAT CUSHION, LH

main87510-30710iAZSH32..G202405

87510ZHEATER ASSY, REAR NO.1 SEAT CUSHION, RH

main87510-30700iAZSH32..G202405

9017906274

main90179-06274

14 parts on this diagram · 5 diagrams in section
