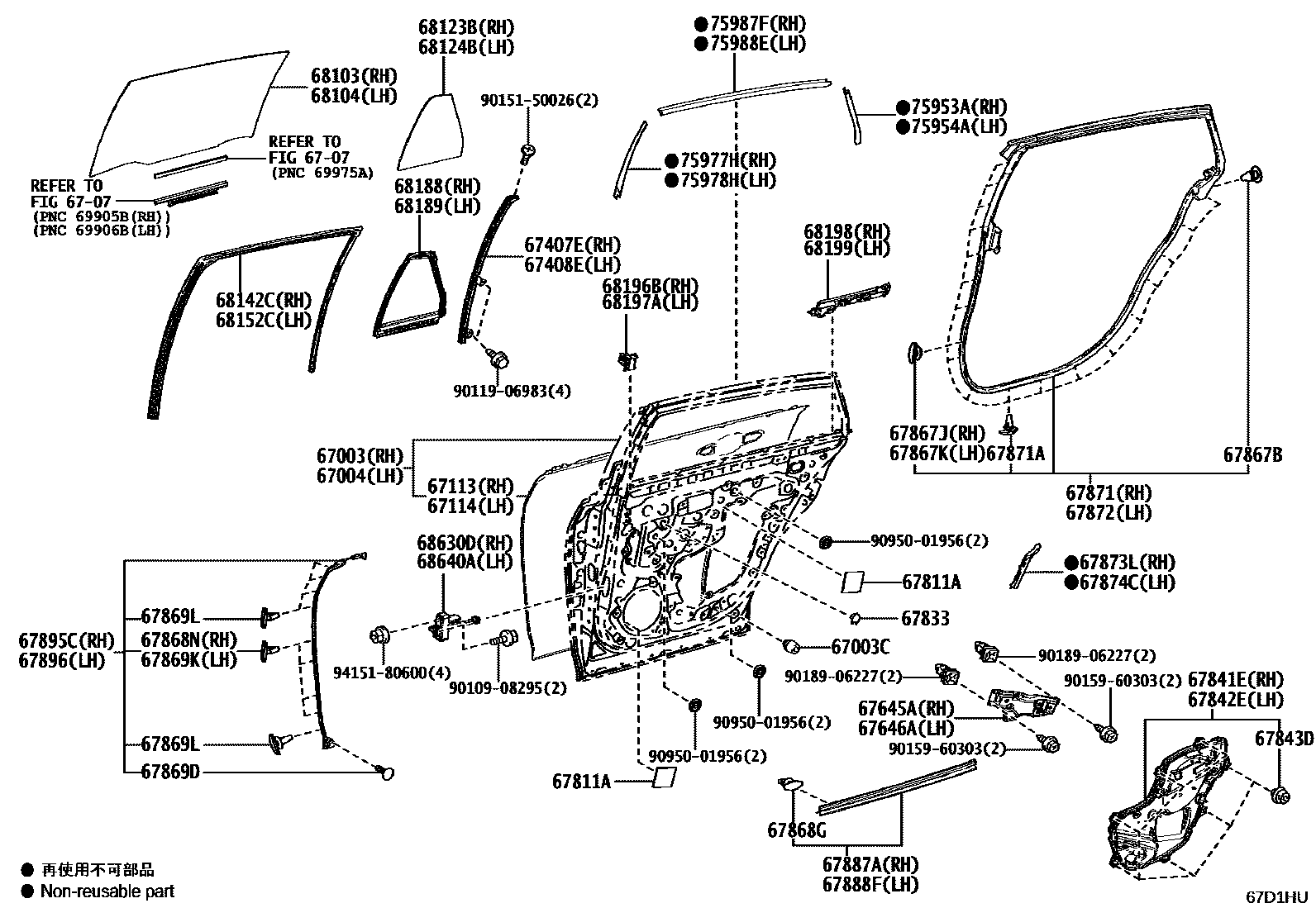

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-30740iAZSH32..M202405

main67003-30750iAZSH32..G202405

67003CCUSHION, REAR DOOR PANEL

main90541-09069iAZSH32202405

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-30740iAZSH32..M202405

main67004-30750iAZSH32..G202405

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-30490iAZSH32202405

67114PANEL, REAR DOOR, OUTER LH

main67114-30500iAZSH32202405

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-30300iAZSH32202405

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-30300iAZSH32202405

67645ABRACKET, REAR DOOR ARMREST SET, RH

main67645-30110iAZSH32202405

67646ABRACKET, REAR DOOR ARMREST SET, LH

main67646-30100iAZSH32202405

67811APAD, REAR DOOR SILENCER

main67811-30100iAZSH32202405

67833COVER, REAR DOOR SERVICE HOLE

main67833-47010iAZSH32202405

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-30530iAZSH32202405

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-30530iAZSH32202405

67843DCLIP, REAR DOOR SERVICE HOLE

main90467-09206iAZSH32202405

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67868-30030iAZSH32202405

67867JCLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR)

main90467-04034iAZSH32202405

67867KCLIP, DOOR WEATHERSTRIP, LH(FOR REAR DOOR)

main90467-04034iAZSH32202405

67868GRETAINER, DOOR WEATHERSTRIP

main67867-12150iAZSH32202405

67868NCLIP, DOOR WEATHERSTRIP, RH

main67869-78010iAZSH32202405

67869DCLIP, DOOR WEATHERSTRIP

main67869-26050iAZSH32202405

67869KCLIP, DOOR WEATHERSTRIP, LH

main67869-78020iAZSH32202405

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-78030iAZSH32202405

67871WEATHERSTRIP, REAR DOOR, RH

main67871-30380iAZSH32202405

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-12150iAZSH32202405

67872WEATHERSTRIP, REAR DOOR, LH

main67872-30380iAZSH32202405

67873LWEATHERSTRIP, REAR DOOR, NO.5 RH

main67873-30060iAZSH32202405

67874CWEATHERSTRIP, REAR DOOR, NO.5 LH

main67874-30060iAZSH32202405

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-30220iAZSH32202405

67888FWEATHERSTRIP, REAR DOOR, NO.2 LH

main67887-30220iAZSH32202405

67895CWEATHERSTRIP, REAR DOOR, NO.3 RH

main67895-30090iAZSH32202405

67896WEATHERSTRIP, REAR DOOR, NO.3 LH

main67896-30090iAZSH32202405

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-30810iAZSH32202405

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-30810iAZSH32202405

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-30720iAZSH32202405

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-30660iAZSH32202405

68142CRUN, REAR DOOR GLASS, RH

main68142-30310iAZSH32202405

68152CRUN, REAR DOOR GLASS, LH

main68152-30310iAZSH32202405

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-30250iAZSH32202405

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-30230iAZSH32202405

68196BSEAL, REAR DOOR BELT, FRONT RH

main68196-30080iAZSH32202405

68197ASEAL, REAR DOOR BELT, FRONT LH

main68197-30080iAZSH32202405

68198SEAL, REAR DOOR BELT, REAR RH

main68198-30070iAZSH32202405

68199SEAL, REAR DOOR BELT, REAR LH

main68199-30070iAZSH32202405

68630DCHECK ASSY, REAR DOOR, RH

main68630-30290iAZSH32202405

68640ACHECK ASSY, REAR DOOR, LH

main68640-30190iAZSH32202405

75953ATAPE, BLACK OUT, INNER REAR RH

main75953-30070iAZSH32202405

75954ATAPE, BLACK OUT, INNER REAR LH

main75954-30070iAZSH32202405

75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH

main75977-30040iAZSH32202405

75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH

main75978-30040iAZSH32202405

75987FSTRIPE, REAR DOOR, OUTSIDE, RH

main75987-30070iAZSH32..M202405

main75987-30080iAZSH32..G202405

75988ESTRIPE, REAR DOOR, OUTSIDE LH

main75988-30070iAZSH32..M202405

main75988-30080iAZSH32..G202405

9010908295

main90109-08295

9011906983

main90119-06983

9015150026

main90151-50026

9015960303

main90159-60303

9018906227

main90189-06227

9095001956

main90950-01956

9415180600

main94151-80600

59 parts on this diagram · 2 diagrams in section
