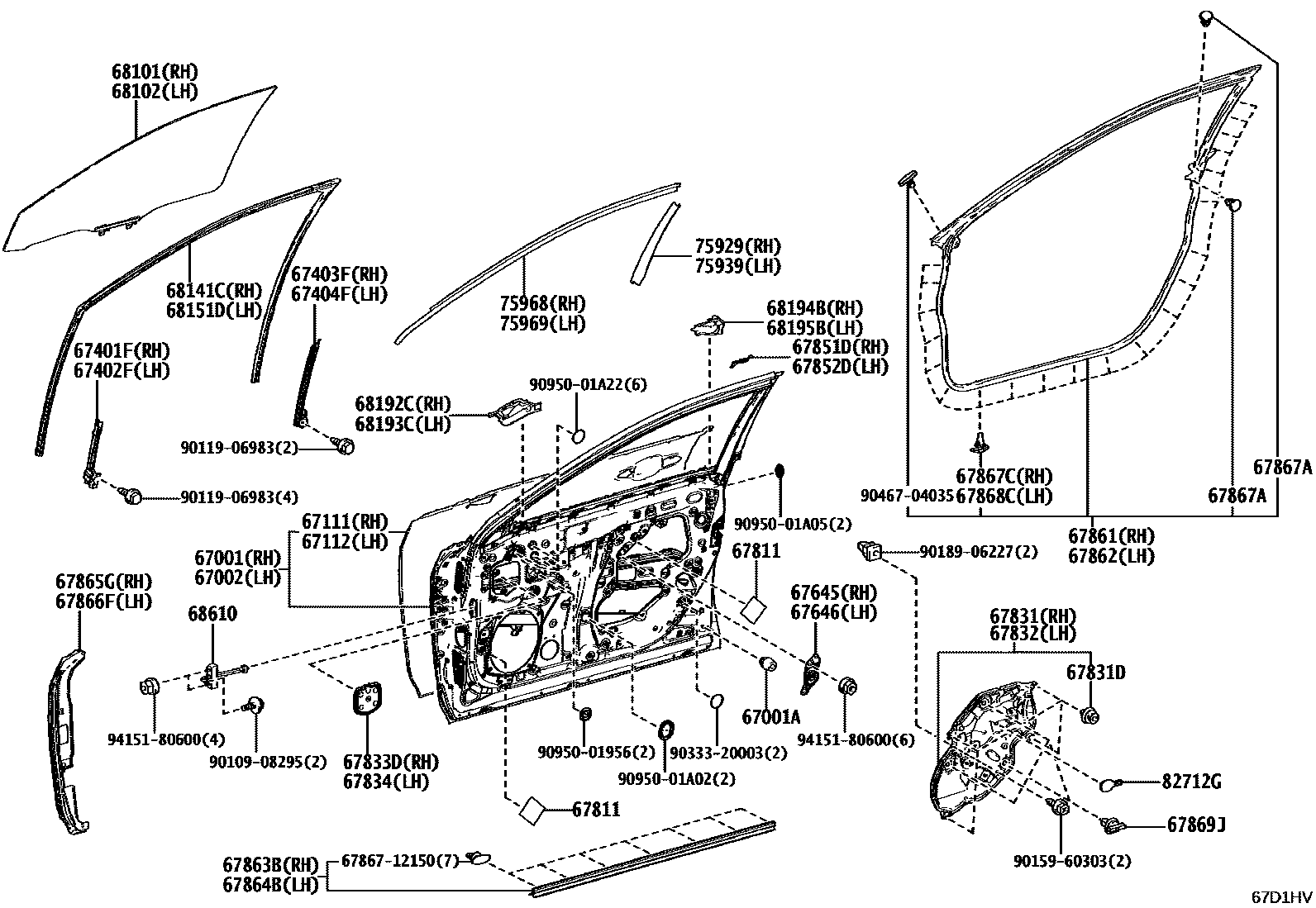

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-30A70iAZSH32202405

67001ACUSHION, FRONT DOOR PANEL

main90541-09069iAZSH32202405

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-30B40iAZSH32202405

67111PANEL, FRONT DOOR, OUTER RH

main67111-30570iAZSH32202405

67112PANEL, FRONT DOOR, OUTER LH

main67112-30630iAZSH32202405

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-30280iAZSH32202405

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-30280iAZSH32202405

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-30250iAZSH32202405

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-30250iAZSH32202405

67645BRACKET, FRONT DOOR ARMREST SET, RH

main67645-30130iAZSH32202405

67646BRACKET, FRONT DOOR ARMREST SET, LH

main67646-30120iAZSH32202405

67811PAD, FRONT DOOR SILENCER

main67811-30100iAZSH32202405

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-30500iAZSH32202405

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206iAZSH32202405

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-30500iAZSH32202405

67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH

main67833-30150iAZSH32202405

67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH

main67833-30150iAZSH32202405

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-30030iAZSH32202405

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-30030iAZSH32202405

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-30340iAZSH32202405

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-30370iAZSH32202405

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-30210iAZSH32202405

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67863-30210iAZSH32202405

67865GWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-30110iAZSH32202405

67866FWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67866-30110iAZSH32202405

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67868-30030iAZSH32202405

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iAZSH32202405

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iAZSH32202405

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-47010iAZSH32202405

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-30A00iAZSH32202405

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-30A00iAZSH32202405

68141CRUN, FRONT DOOR GLASS, RH

main68141-30420iAZSH32202405

68151DRUN, FRONT DOOR GLASS, LH

main68151-30420iAZSH32202405

68192CSEAL, FRONT DOOR BELT, FRONT RH

main68192-30060iAZSH32202405

68193CSEAL, FRONT DOOR BELT, FRONT LH

main68193-30060iAZSH32202405

68194BSEAL, FRONT DOOR BELT, REAR RH

main68194-30050iAZSH32202405

68195BSEAL, FRONT DOOR BELT, REAR LH

main68195-30060iAZSH32202405

68610CHECK ASSY, FRONT DOOR

main68610-62020iAZSH32202405

75929TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH

main75985-30060iAZSH32202405

75939TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH

main75986-30060iAZSH32202405

75968TAPE, BLACK OUT FRONT DOOR, INNER REAR RH

main75965-62020iAZSH32202405

75969TAPE, BLACK OUT FRONT DOOR, INNER REAR LH

main75966-62020iAZSH32202405

82712GSUPPORT, WIRING HARNESS

main82712-60550iAZSH32202405

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150

9010908295

main90109-08295

9011906983

main90119-06983

9015960303

main90159-60303

9018906227

main90189-06227

9033320003

main90333-20003

9046704035

main90467-04035

9095001956

main90950-01956

9095001A02

main90950-01A02

9095001A05

main90950-01A05

9095001A22

main90950-01A22

9415180600

main94151-80600

55 parts on this diagram · 2 diagrams in section
