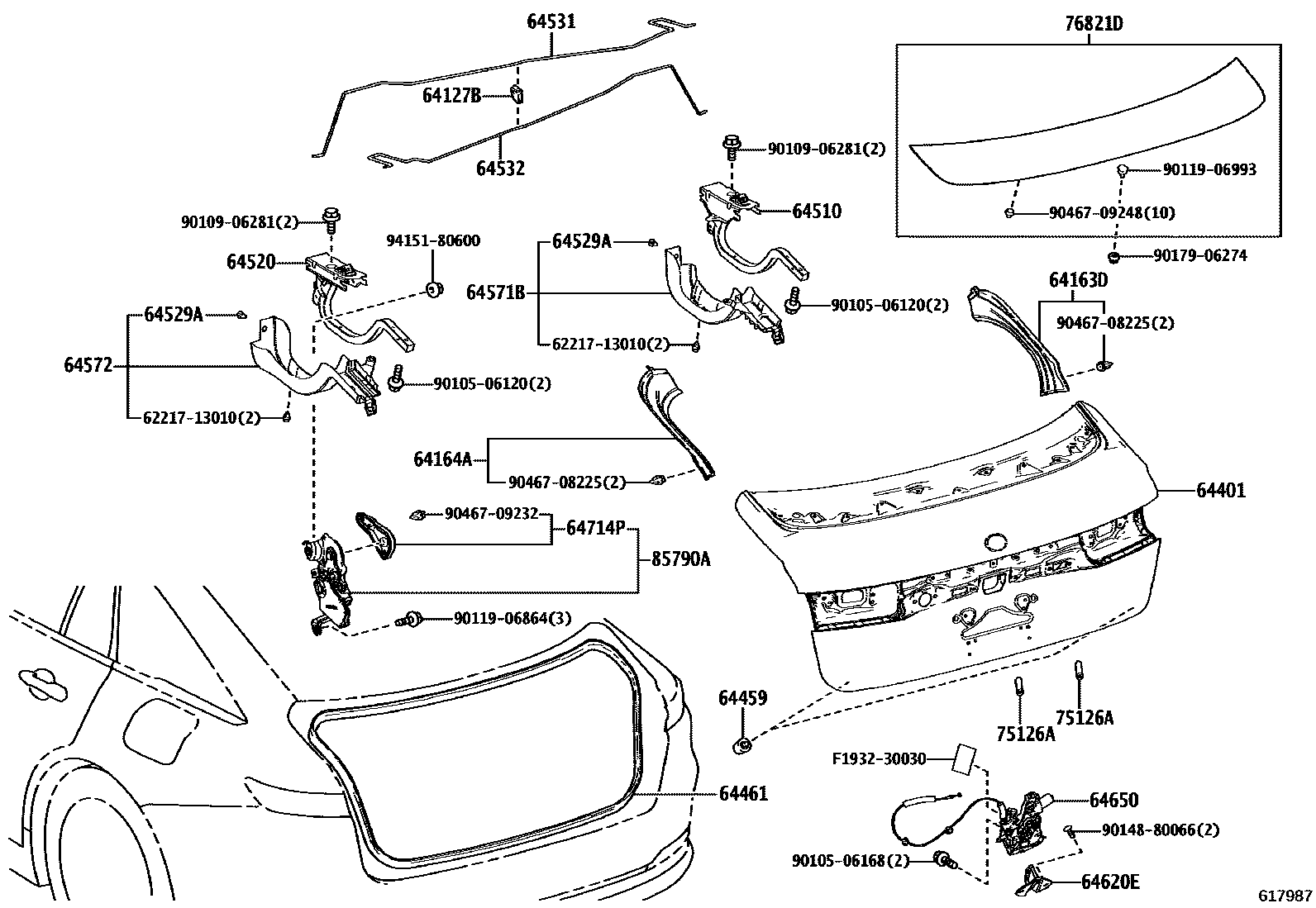

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-30150iAZSH32202405

64163DCOVER, BACK CORNER, RH

main64163-30040iAZSH32202405

64164ACOVER, BACK CORNER, LH

main64164-30040iAZSH32202405

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-30E30iAZSH32202405

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09116iAZSH32202405

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-30420iAZSH32202405

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-30680iAZSH32202405

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-30410iAZSH32202405

64529ASHIM, LUGGAGE COMPARTMENT DOOR HINGE

main64529-30130iAZSH32202405

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-30420iAZSH32202405

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-30420iAZSH32202405

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-30250iAZSH32202405

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-30190iAZSH32202405

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-30130iAZSH32202405

64650CLOSER ASSY, LUGGAGE DOOR

main64650-30150iAZSH32202405

64714PCOVER, DECK SIDE TRIM, RH

main64714-33070iAZSH32202405

75126APLATE, REAR LICENSE PLATE BRACKET SUPPORT

main75126-78010iAZSH32202405

76821DPROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

main76821-30080iAZSH32202405

85790AMOTOR ASSY, LUGGAGE CLOSER

main85790-30040iAZSH32202405

6221713010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-13010

9010506120

main90105-06120

9010506168

main90105-06168

9010906281

main90109-06281

9011906864

main90119-06864

9011906993

main90119-06993

9014880066

main90148-80066

9017906274

main90179-06274

9046708225

main90467-08225

9046709232

main90467-09232

9046709248

main90467-09248

9415180600

main94151-80600

F193230030

mainF1932-30030

32 parts on this diagram · 1 diagram in section
