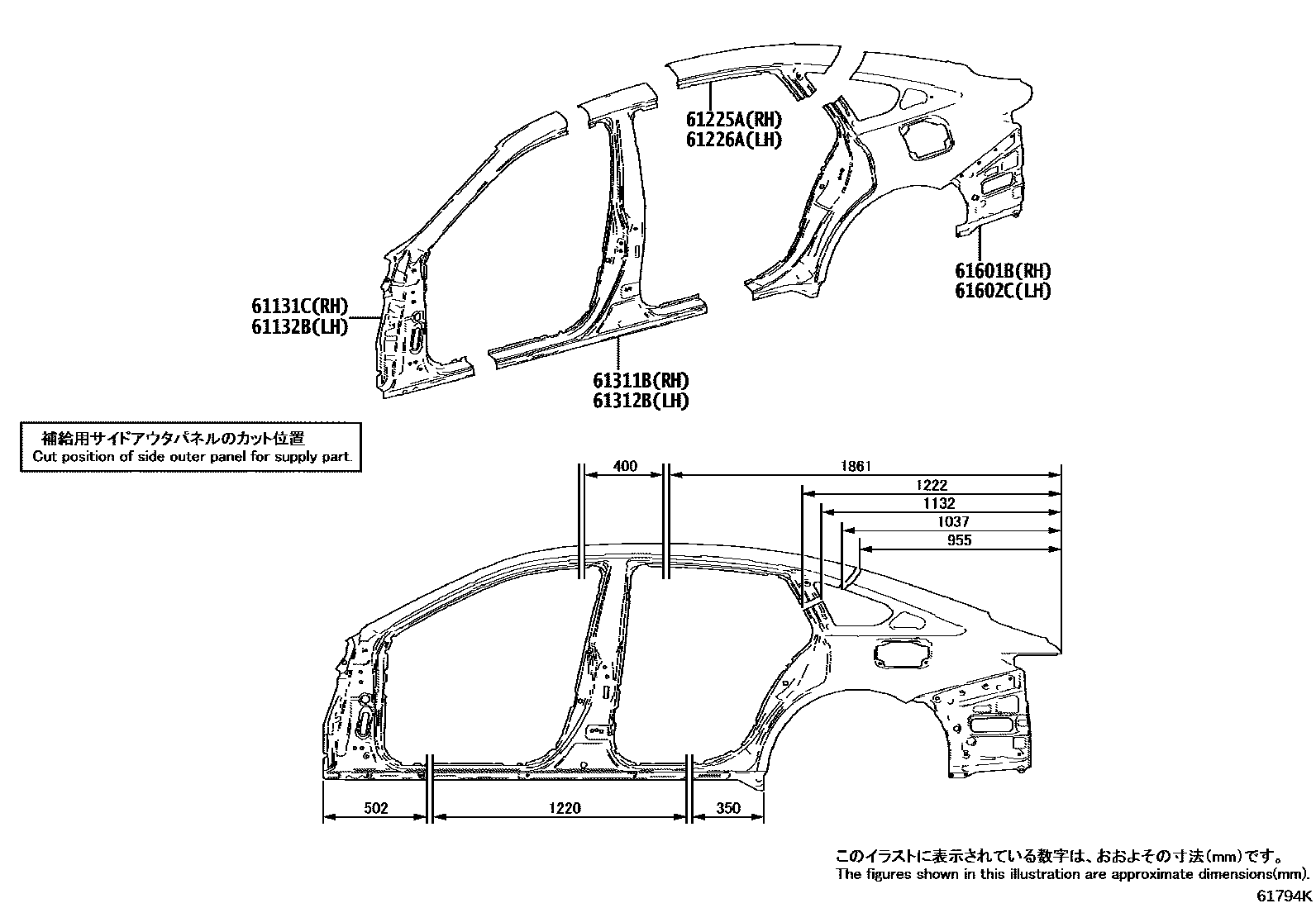

SIDE MEMBER

0001 1 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

61131CPILLAR, FRONT BODY, OUTER RH

main61131-30370iAZSH32¥14,100202405

61132BPILLAR, FRONT BODY, OUTER LH

main61132-30390iAZSH32¥14,100202405

61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH

main61225-30090iAZSH32¥4,660202405

61226ARAIL, ROOF SIDE OUTER UPPER NO.1, LH

main61226-30090iAZSH32¥4,660202405

61311BPILLAR, CENTER BODY, OUTER RH

main61311-30350iAZSH32¥13,400202405

61312BPILLAR, CENTER BODY, OUTER LH

main61312-30450iAZSH32¥13,400202405

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-30B00iAZSH32¥51,000202405

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-30A80iAZSH32¥51,000202405

8 parts on this diagram · 3 diagrams in section
