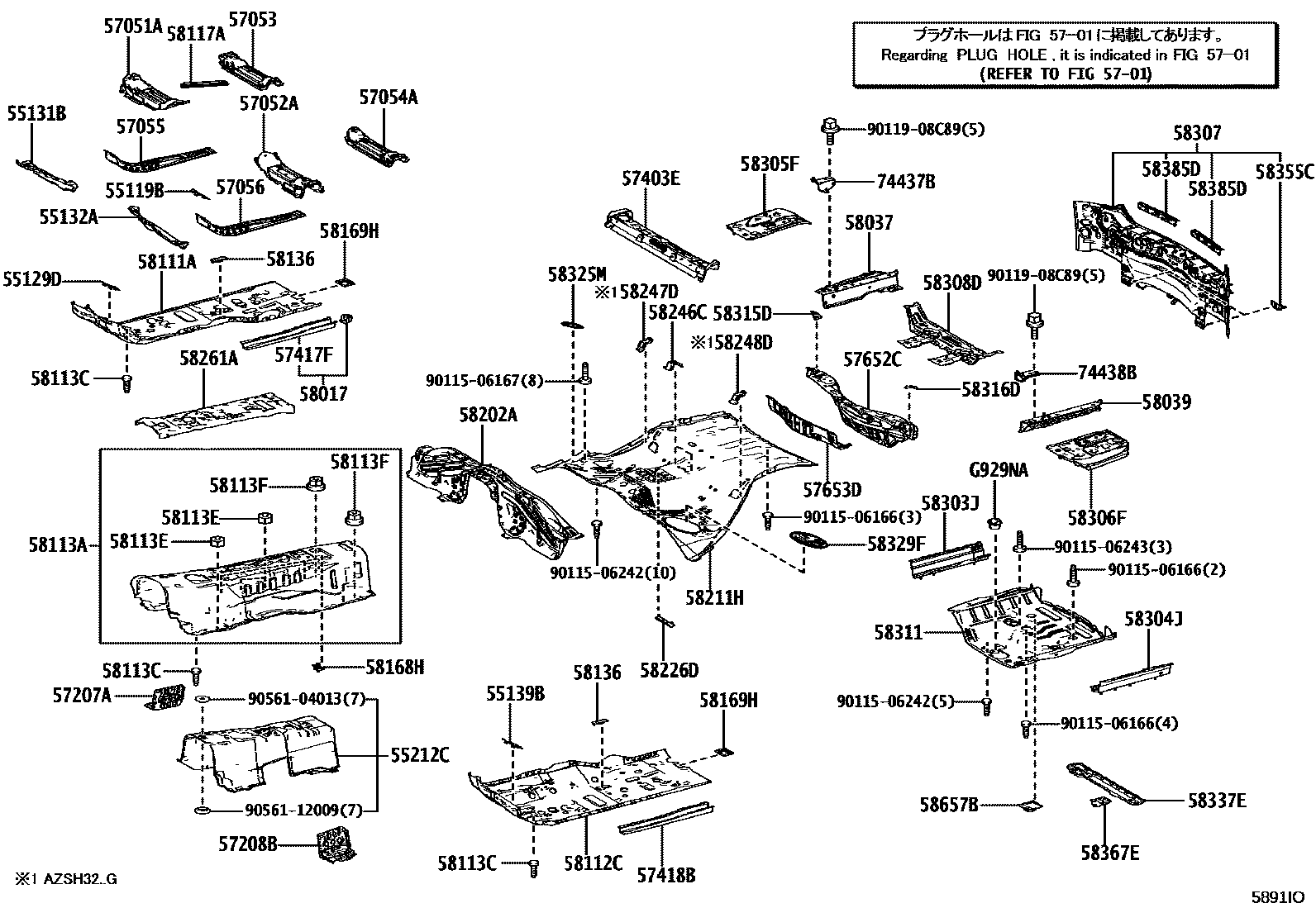

FLOOR PAN & LOWER BACK PANEL
55119BEXTENSION, DASH PANEL, LH
55129DCOVER, DASH PANEL HOLE, RH
55131BREINFORCEMENT, TOE BOARD, RH
55132AREINFORCEMENT, TOE BOARD, LH
55139BCOVER, DASH PANEL HOLE, LH
55212CSILENCER, FRONT PANEL, LOWER
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57055REINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.5
57056REINFORCEMENT SUB-ASSY, CROSSMEMBER FLOOR, NO.6
57207ABRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH
57208BBRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH
57403EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
57652CMEMBER, REAR FLOOR CROSS, NO.1
57653DMEMBER, REAR FLOOR CROSS, NO.2
58017PANEL SUB-ASSY, FRONT FLOOR HOUSING, REAR RH
58037REINFORCEMENT SUB-ASSY, REAR FLOOR PAN
58039REINFORCEMENT SUB-ASSY, REAR FLOOR PAN, LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58113CBOLT, WELD(FOR FRONT FLOOR PANEL, CENTER)
58113ENUT, WELD(FOR FRONT FLOOR PANEL, CENTER)
58113FNUT, WELD(FOR FRONT FLOOR PANEL, CENTER)
58117AREINFORCEMENT, FRONT FLOOR SIDE, RH
58136COVER, FRONT FLOOR HOLE
58168HPROTECTOR, FLOOR WIRE
58169HPATCH, FRONT FLOOR, REAR
58202APAN SUB-ASSY, CENTER FLOOR, FRONT
58211HPAN, CENTER FLOOR
58226DPATCH, BRACKET CENTER MOUNTING
58246CBRACKET, REAR SEAT HINGE, CENTER NO.2
58247DBRACKET, REAR SEAT HINGE, OUTER RH
58248DBRACKET, REAR SEAT HINGE, OUTER LH
58261ACOVER, TRANSMISSION
58303JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH
58304JREINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58308DBRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER
58311PAN, REAR FLOOR
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325MCOVER, REAR FLOOR SERVICE HOLE, NO.1
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58337EREINFORCEMENT, REAR FLOOR END, LOWER LH
58355CBRACKET, REAR BUMPER ARM
58367EBRACKET, FUEL TUBE, NO.1
58385DBRACKET, REAR BUMPER COVER
58657BPLATE, REAR FLOOR, CENTER LOWER NO.3 RH
74437BBRACKET, BATTERY CARRIER, NO.5
74438BBRACKET, BATTERY CARRIER, NO.6
G929NAPLUG, BATTERY DRAIN
9011506166
main90115-06166
9011506167
main90115-06167
9011506242
main90115-06242
9011506243
main90115-06243
9011908C89
main90119-08C89
9056104013
main90561-04013
9056112009
main90561-12009
66 parts on this diagram · 1 diagram in section
