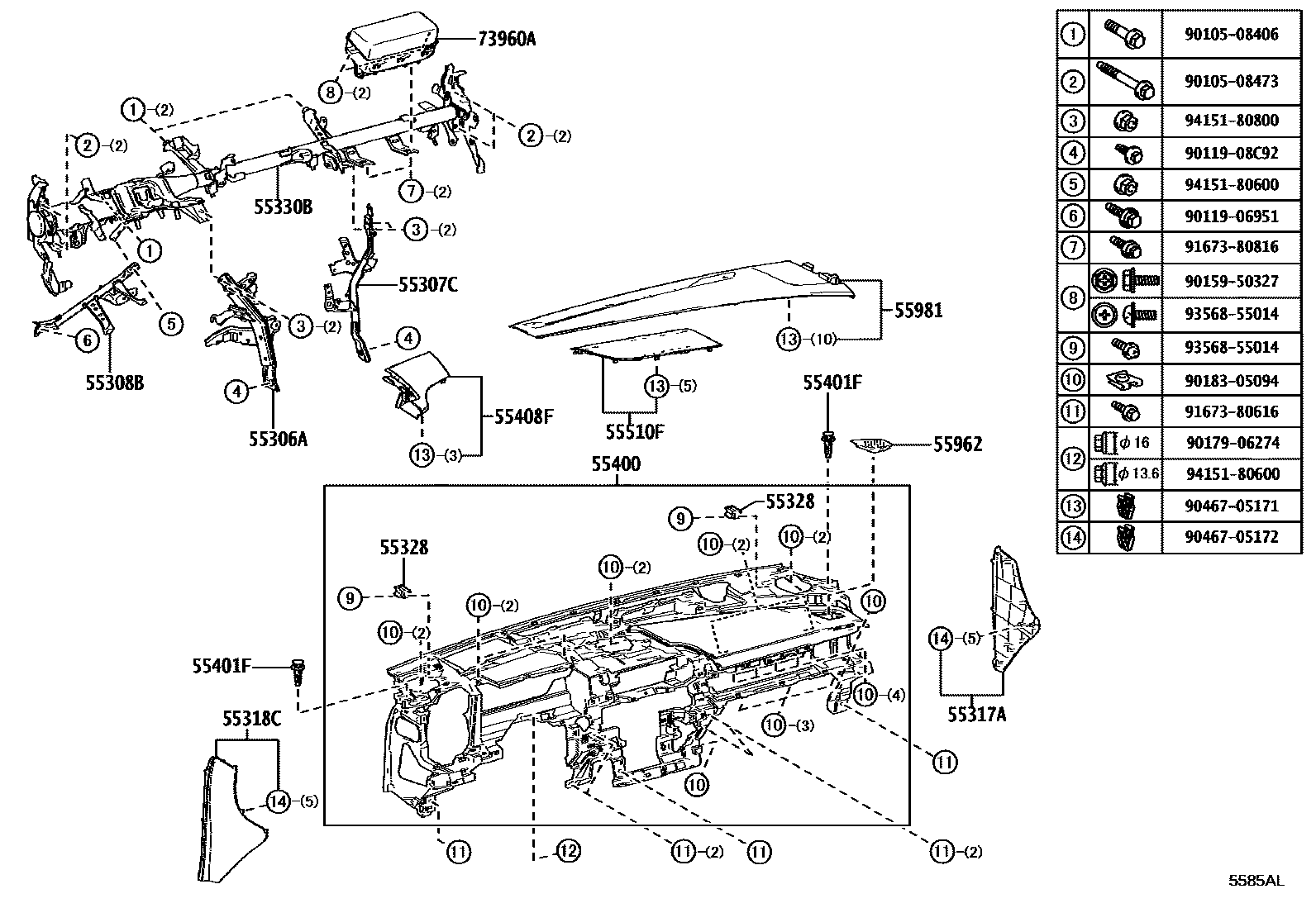

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-30380iAZSH32202405

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-30380iAZSH32202405

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-62020iAZSH32202405

55317APANEL, INSTRUMENT SIDE, RH

main55317-30220-C0iAZSH32..M202405

BLACK,TRIM2#

main55317-30220-C0iAZSH32..M202405

BLACK,TRIM2#,4#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-30240-C0iAZSH32..M202405

BLACK,TRIM2#

main55318-30240-C0iAZSH32..M202405

BLACK,TRIM2#,4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430iAZSH32202405

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-30540iAZSH32202405

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-30350-C0iAZSH32..M202405

SOFT BLACK,TRIM2#

main55400-30350-C0iAZSH32..M202405

SOFT BLACK,TRIM2#,4#

55401FCLIP(FOR SAFETY PAD)

main52161-16010iAZSH32202405

sub52161-0K040

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-30400iAZSH32202405

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-30380iAZSH32202405

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-30170-C0iAZSH32..M202405

BLACK,TRIM2#

main55962-30170-C0iAZSH32..M202405

BLACK,TRIM2#,4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-30220iAZSH32202405

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-30170iAZSH32202405

9010508406

main90105-08406

9010508473

main90105-08473

9011906951

main90119-06951

9011908C92

main90119-08C92

9015950327

main90159-50327

9017906274

main90179-06274

9018305094

main90183-05094

9046705171

main90467-05171

9046705172

main90467-05172

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

28 parts on this diagram · 4 diagrams in section
