FLOOR SIDE MEMBER

55130APLATE ASSY, FENDER APRON SET, RH

main55130-50010iAZSH32¥3,370202405

55140APLATE ASSY, FENDER APRON SET, LH

main55140-50010iAZSH32¥3,370202405

5701

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-11010iAZSH32¥7,500202405

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-11010iAZSH32¥7,500202405

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-11010iAZSH32¥14,200202405

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-11010iAZSH32¥14,200202405

57103DCROSSMEMBER SUB-ASSY, FRONT SIDE MEMBER TO DASH PANEL

main57103-11010iAZSH32¥16,400202405

57159AREINFORCEMENT, ENGINE UNDER COVER MOUNTING

main57159-11011iAZSH32¥2,700202405

57255MEMBER, ENGINE REAR MOUNTING

main57255-11010iAZSH32¥17,000202405

57261APLATE, ENGINE REAR MOUNTING MEMBER

main57261-50020iAZSH32¥1,610202405

57261BPLATE, ENGINE REAR MOUNTING MEMBER

main57261-11020iAZSH32¥1,480202405

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-30220iAZSH32¥31,600202405

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-30210iAZSH32¥31,600202405

57405AMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-11011iAZSH32¥19,700202405

57407FMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-30170iAZSH32¥9,800202405

57501ABRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-30020iAZSH32¥10,900202405

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-30280iAZSH32¥37,200202405

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-30340iAZSH32¥37,200202405

57615GMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57615-30907iAZSH32¥8,200202405

57616DMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57616-30908iAZSH32¥8,200202405

5801

9010510586

main90105-10586¥100

9011906A13

main90119-06A13¥60

9011908D20

main90119-08D20¥80

9011908D21

main90119-08D21¥80

9011908D94

main90119-08D94¥100

9046712081

main90467-12081¥80

91655B1040

main91655-B1040¥130

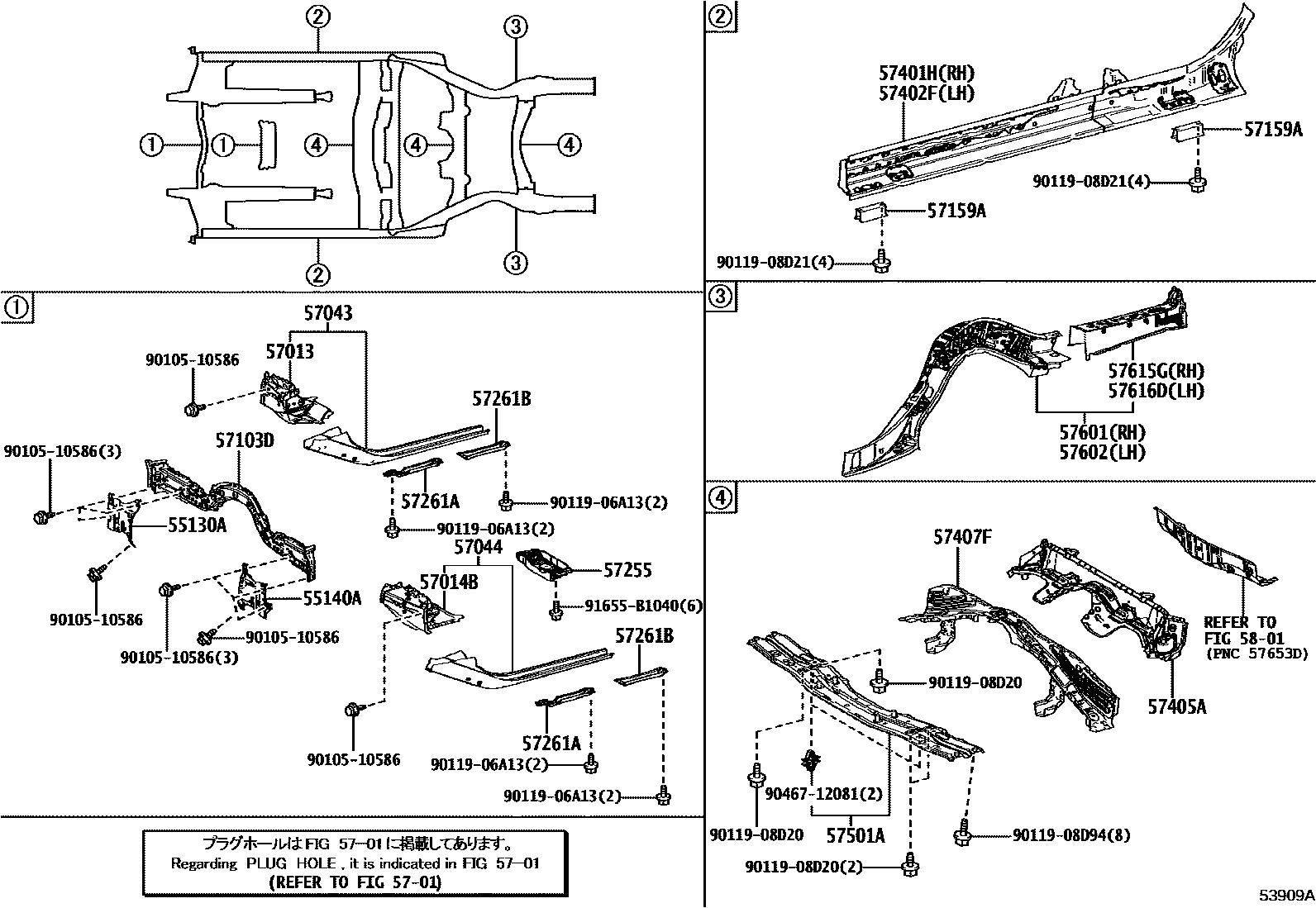

29 parts on this diagram · 1 diagram in section
