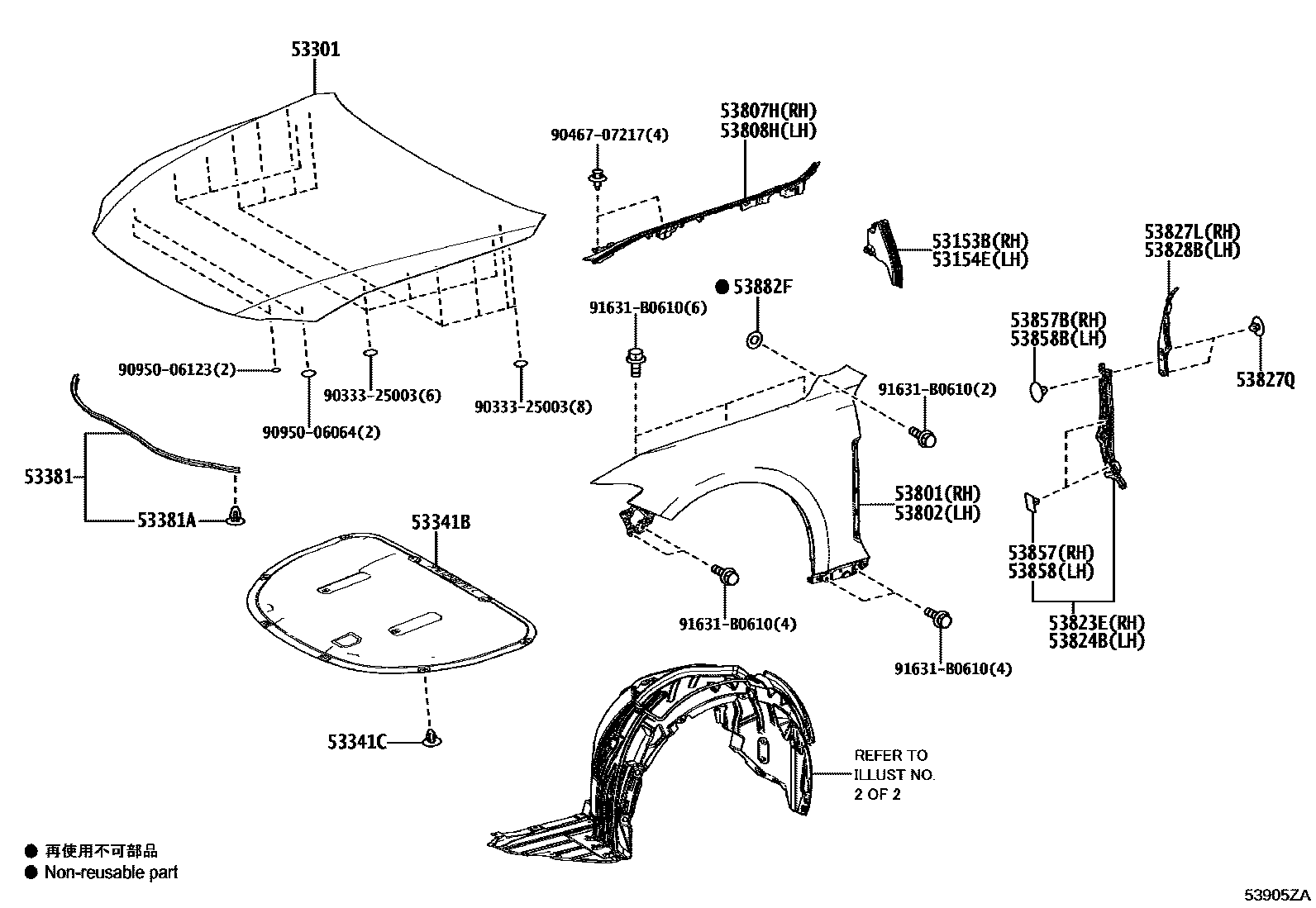

HOOD & FRONT FENDER

0001 1 0002 1

53153BGUIDE, FRONT SIDE AIR

main53153-30370iAZSH32¥2,070202405

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-30360iAZSH32¥2,070202405

53301HOOD SUB-ASSY

main53301-30580iAZSH32¥69,800202405

53341BINSULATOR, HOOD

main53341-30400iAZSH32¥8,200202405

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iAZSH32¥120202405

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-30280iAZSH32¥1,080202405

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iAZSH32¥100202405

53801FENDER SUB-ASSY, FRONT RH

main53801-30B20iAZSH32¥37,000202405

53802FENDER SUB-ASSY, FRONT LH

main53802-30B10iAZSH32¥37,000202405

53807HPROTECTOR SUB-ASSY, FRONT FENDER, UPPER RH

main53807-30380iAZSH32¥3,100202405

53808HPROTECTOR SUB-ASSY, FRONT FENDER, UPPER LH

main53808-30160iAZSH32¥3,100202405

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-30030iAZSH32¥1,820202405

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-30030iAZSH32¥1,820202405

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-30120iAZSH32¥1,260202405

53827QCLIP, FRONT FENDER SIDE PANEL PROTECTOR, NO.1

main90467-06205-C0iAZSH32202405

BLACK

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-30130iAZSH32¥1,260202405

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iAZSH32¥100202405

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iAZSH32¥60202405

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iAZSH32¥100202405

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iAZSH32¥60202405

53882FSEAL, FRONT FENDER

main53882-30030iAZSH32¥60202405

9033325003

main90333-25003¥70

9046707217

main90467-07217¥80

9095006064

main90950-06064¥110

9095006123

main90950-06123¥110

91631B0610

main91631-B0610¥110

26 parts on this diagram · 2 diagrams in section
