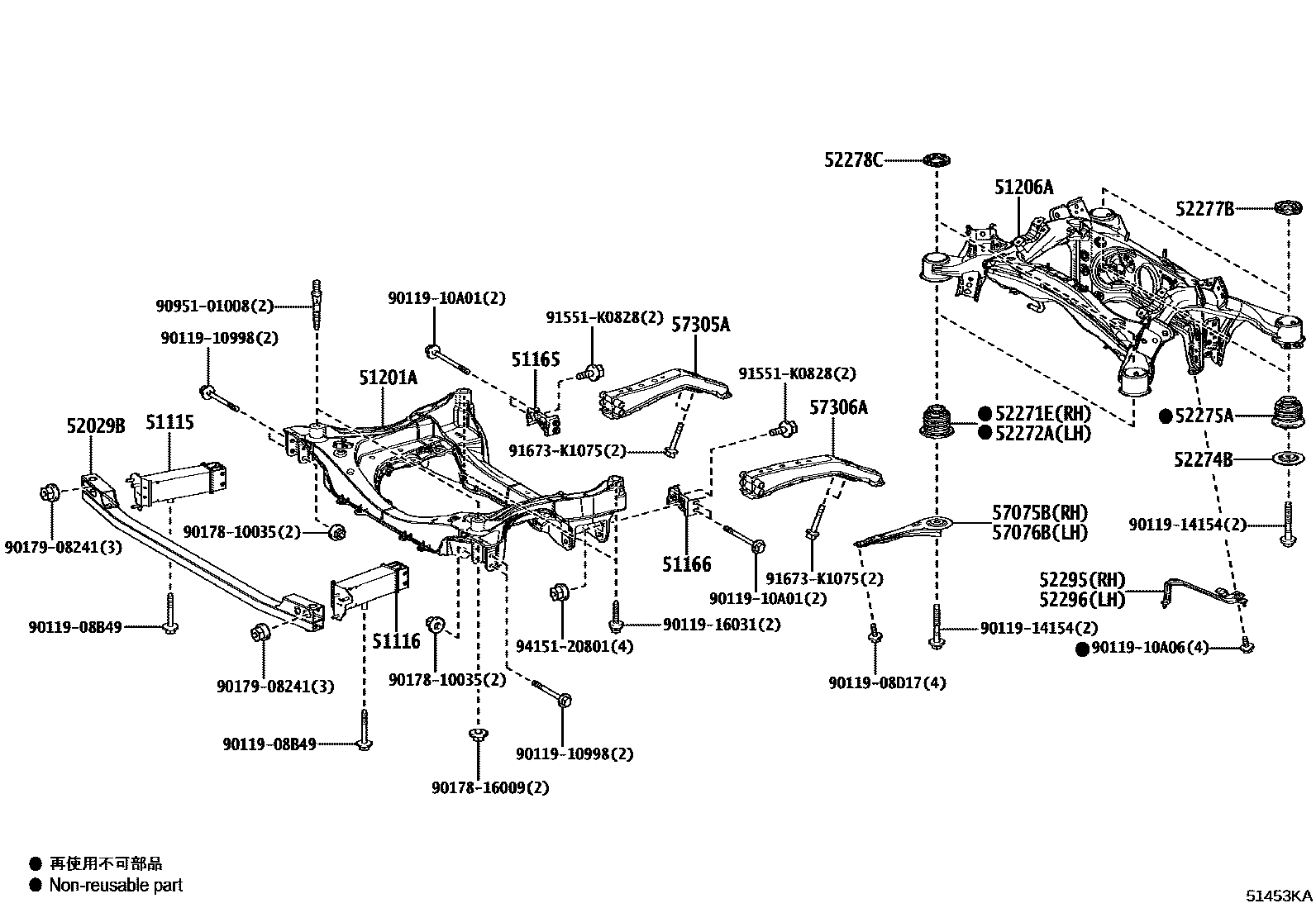

SUSPENSION CROSSMEMBER & UNDER COVER

51115RAIL, FRAME SIDE, REAR RH

main51107-62020i¥5,300202405

51116RAIL, FRAME SIDE, REAR LH

main51108-62020i¥5,300202405

51165REINFORCEMENT, SIDE RAIL, NO.2 RH

main51165-11010i¥1,070202405

51166REINFORCEMENT, SIDE RAIL, NO.2 LH

main51166-11010i¥1,070202405

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-11020i¥96,800202405

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-50060i¥61,000202405

52029BREINFORCEMENT SUB-ASSY, FRONT BUMPER, NO.2

main52029-11010i¥10,300202405

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-50070i¥3,500202405

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-50030i¥3,500202405

52274BSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52274-30020i¥840202405

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-11010i¥2,920202405

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-11010i¥630202405

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-50050i¥630202405

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-11010i¥1,790202405

52296BRACE, REAR SUSPENSION MEMBER, LH

main52296-11010i¥1,630202405

57075BBRACKET SUB-ASSY, REAR SUSPENSION ARM, RH

main57075-50010i¥2,470202405

57076BBRACKET SUB-ASSY, REAR SUSPENSION ARM, LH

main57076-50010i¥2,470202405

57305AREINFORCEMENT SUB-ASSY, LOWER ARM MOUNTING, REAR RH

main57305-30060i¥5,500202405

57306AREINFORCEMENT SUB-ASSY, LOWER ARM MOUNTING, REAR LH

main57306-30080i¥5,500202405

9011908B49

main90119-08B49¥160

9011908D17

main90119-08D17¥100

9011910998

main90119-10998¥190

9011910A01

main90119-10A01¥240

9011910A06

main90119-10A06¥100

9011914154

main90119-14154¥360

9011916031

main90119-16031¥490

9017810035

main90178-10035¥100

9017816009

main90178-16009¥190

9017908241

main90179-08241¥80

9095101008

main90951-01008¥430

91551K0828

main91551-K0828¥80

91673K1075

main91673-K1075¥190

9415120801

main94151-20801¥80

33 parts on this diagram · 4 diagrams in section
