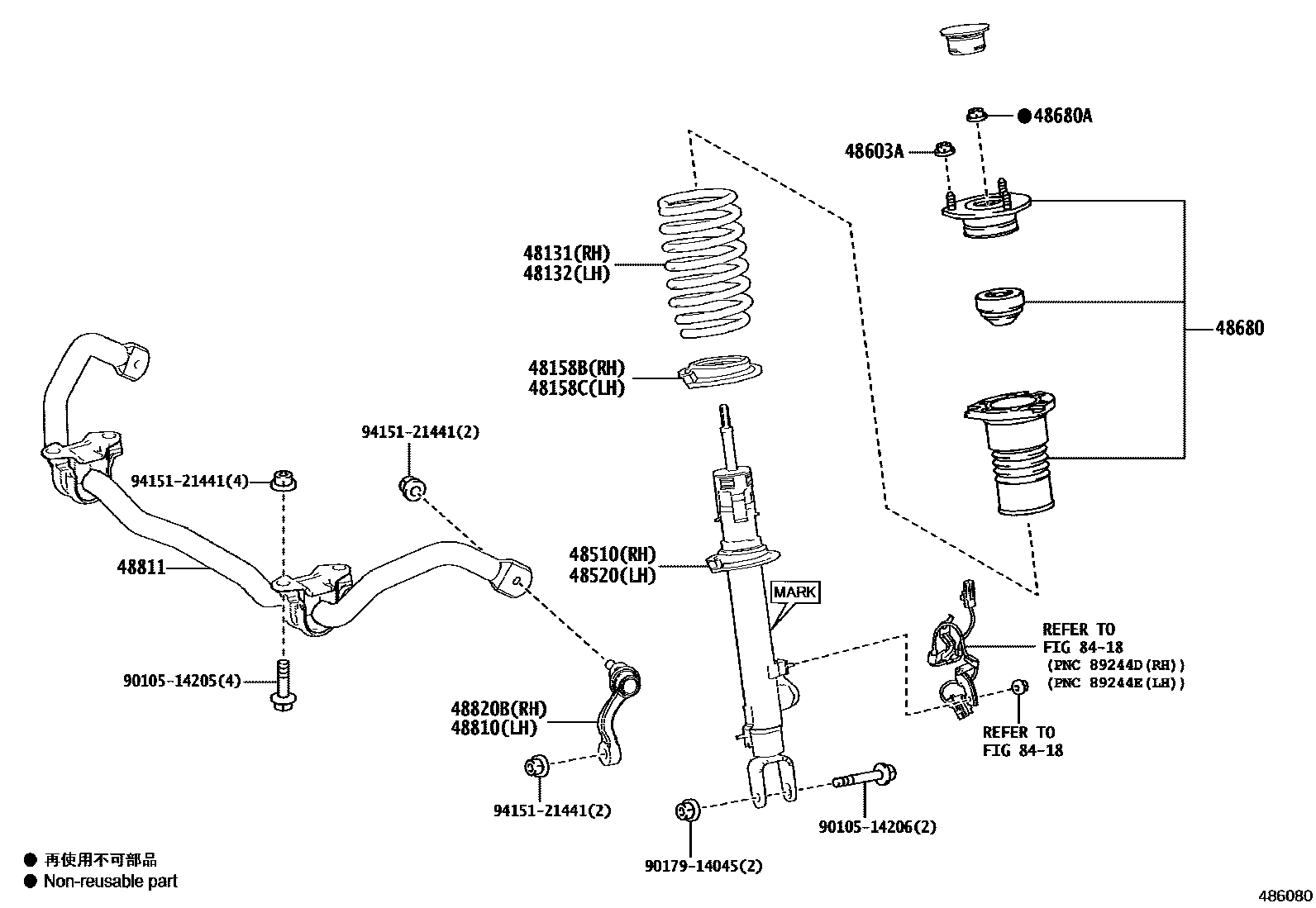

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-30J70
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-30C70
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48680SUPPORT ASSY, FRONT SUSPENSION
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48820BLINK ASSY, FRONT STABILIZER, RH
8418
9010514205
main90105-14205
9010514206
main90105-14206
9017914045
main90179-14045
9415121441
main94151-21441
17 parts on this diagram · 1 diagram in section
