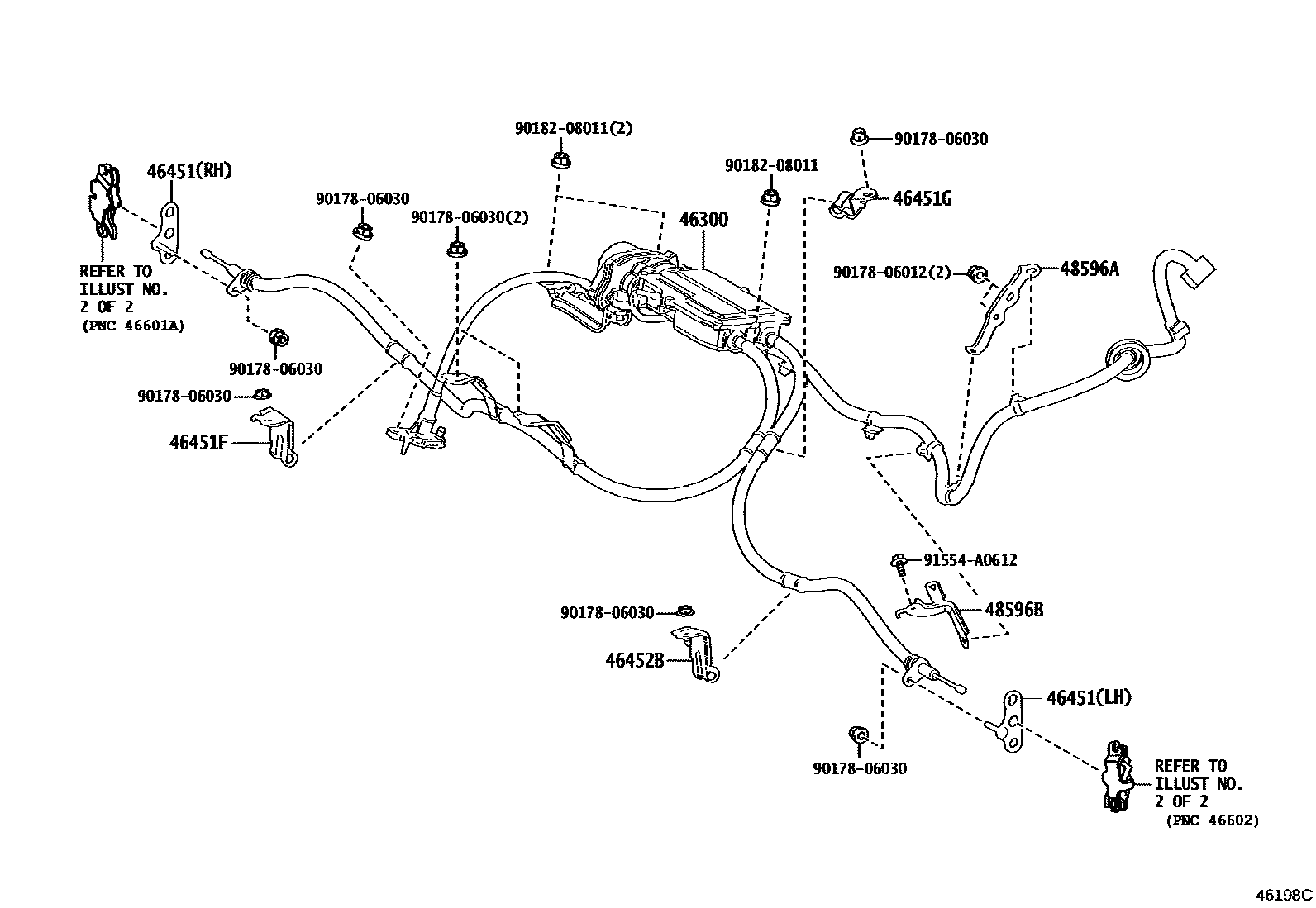

PARKING BRAKE & CABLE

0001 1 0002 1

46300ACTUATOR ASSY, PARKING BRAKE W/BRACKET

main46300-11011iAZSH32202405

46451BRACKET, CABLE SUPPORT

main46451-30270iAZSH32202405

RH

main46451-30280iAZSH32202405

LH

46451FBRACKET, CABLE SUPPORT

main46451-11060iAZSH32202405

46451GBRACKET, CABLE SUPPORT

main46451-11030iAZSH32202405

46452BBRACKET, CABLE SUPPORT, NO.2

main46451-11050iAZSH32202405

48596ACLAMP, ACTUATOR HARNESS, NO.1

main48596-11020iAZSH32202405

48596BCLAMP, ACTUATOR HARNESS, NO.2

main48596-11010iAZSH32202405

9017806012

main90178-06012

9017806030

main90178-06030

9018208011

main90182-08011

91554A0612

main91554-A0612

11 parts on this diagram · 2 diagrams in section
