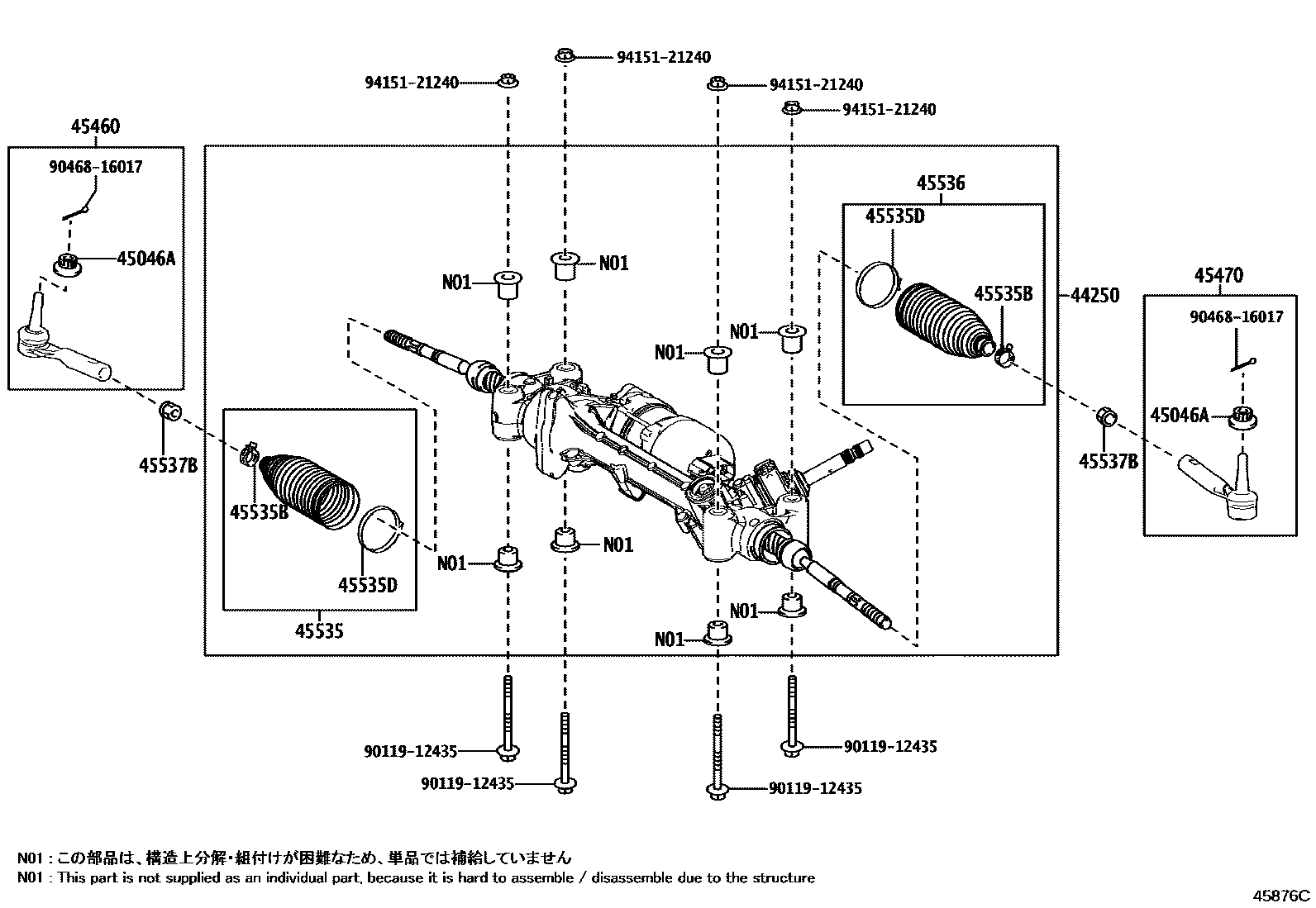

FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-30370iAZSH32202405

*614

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12014iAZSH32202405

45460ROD ASSY, TIE, RH

main45460-19255iAZSH32202405

45470ROD ASSY, TIE, LH

main45470-19085iAZSH32202405

45535BOOT, STEERING RACK, NO.1

main45535-19005iAZSH32202405

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iAZSH32202405

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-02070iAZSH32202405

45536BOOT, STEERING RACK, NO.2

main45535-19005iAZSH32202405

45537BNUT, RACK END LOCK

main90178-16001iAZSH32202405

9011912435

main90119-12435

9046816017

main90468-16017

9415121240

main94151-21240

12 parts on this diagram · 1 diagram in section
