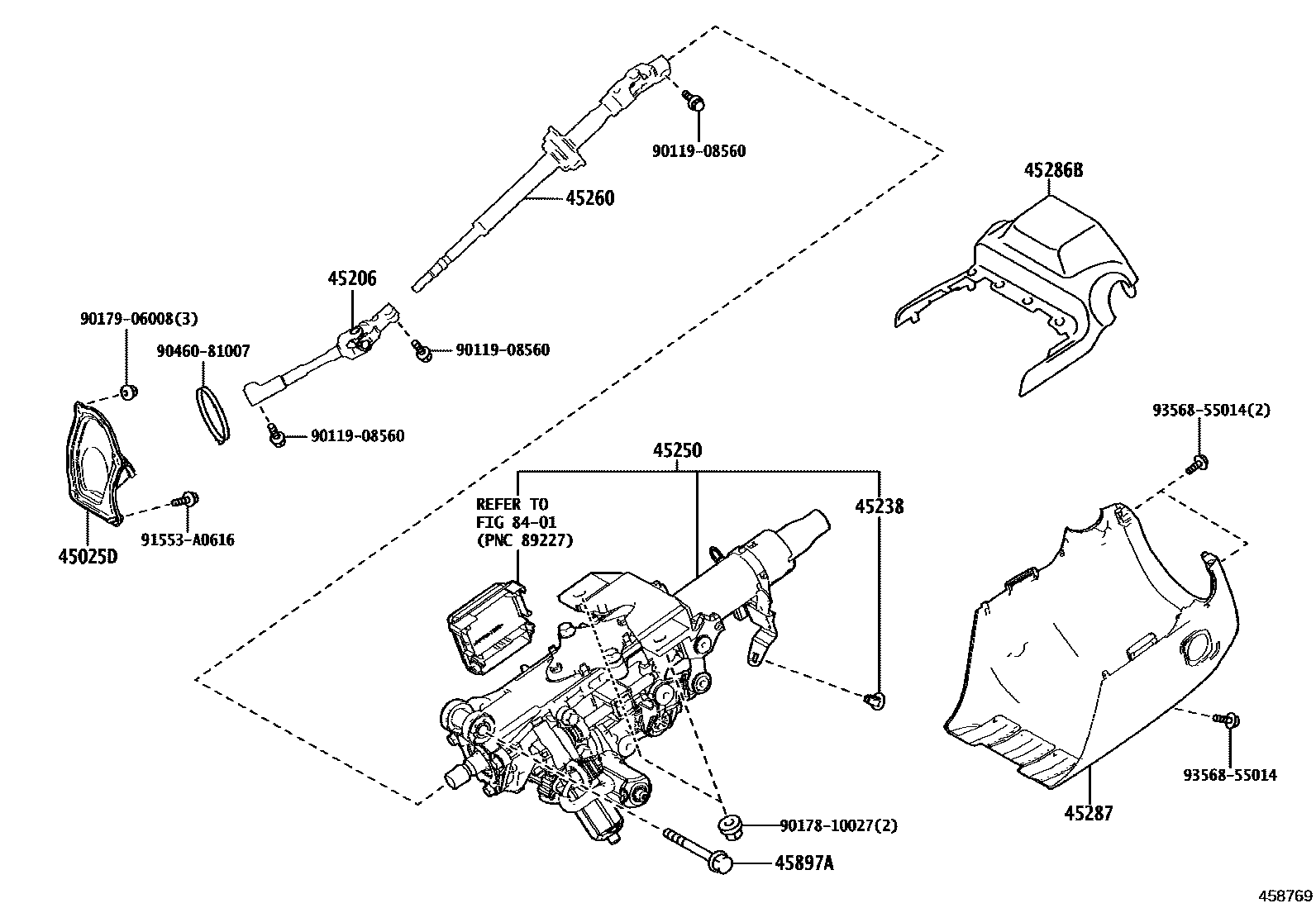

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45250COLUMN ASSY, STEERING
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM2#
BLACK,TRIM2#,4#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM2#
BLACK,TRIM2#,4#
45897ABOLT, TILT STEERING PAWL SET
9011908560
main90119-08560
9017810027
main90178-10027
9017906008
main90179-06008
9046081007
main90460-81007
91553A0616
main91553-A0616
9356855014
main93568-55014
14 parts on this diagram · 1 diagram in section
