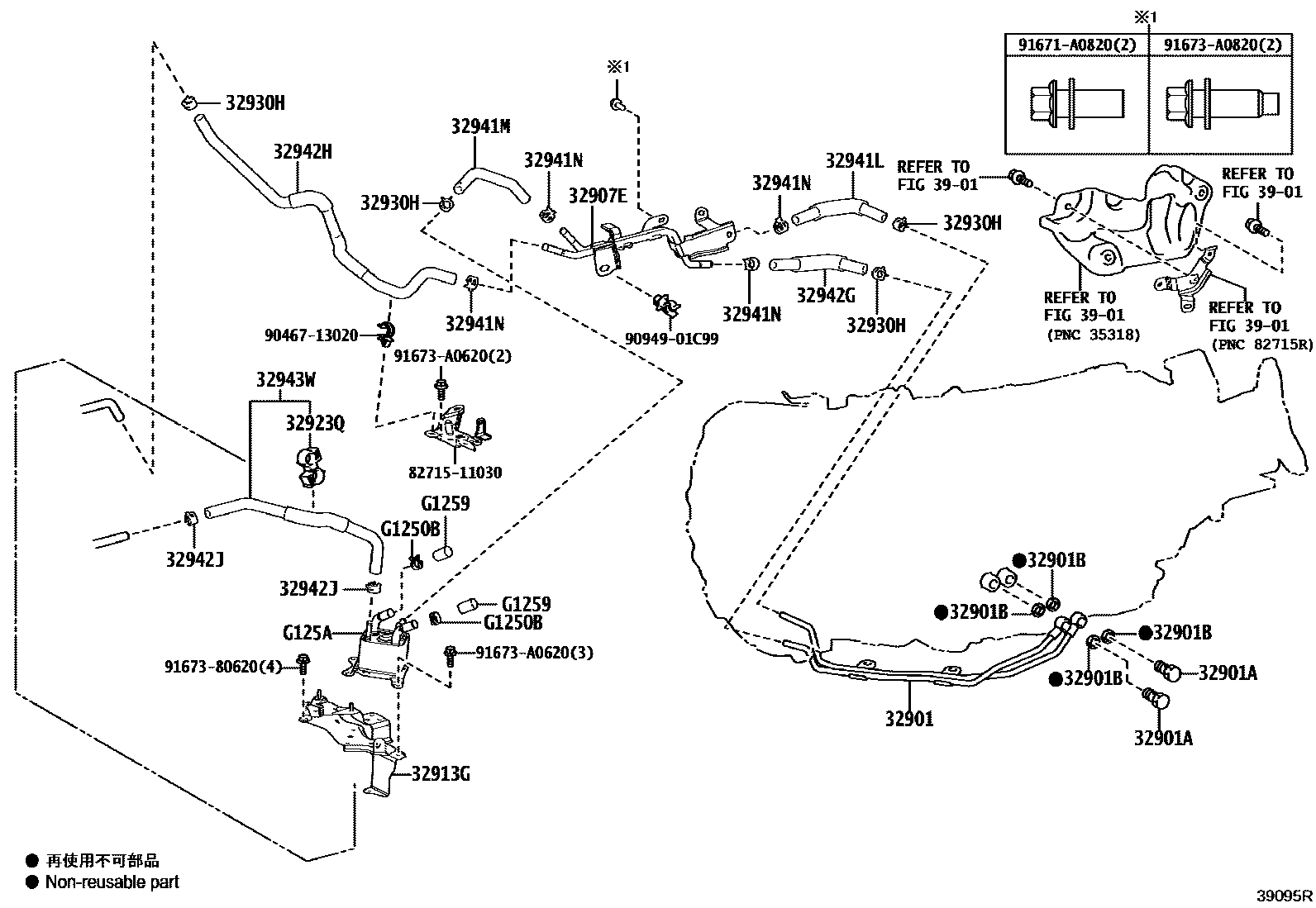

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32901UNION SUB-ASSY, OIL COOLER

main32901-30030iAZSH32202405

32901ABOLT, UNION(FOR OIL COOLER)

main90401-14003iAZSH32202405

32901BGASKET(FOR OIL COOLER UNION)

main90430-14013iAZSH32202405

32907ETUBE SUB-ASSY, OIL COOLER W/O HOSE

main32907-30150iAZSH32202405

32913GBRACKET, TRANSMISSION OIL COOLER

main32913-11010iAZSH32202405

32923QCLAMP, OIL COOLER TUBE

main32923-50110iAZSH32202405

32930HCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iAZSH32202405

32941LHOSE, OIL COOLER INLET, NO.1

main32941-11010iAZSH32202405

32941MHOSE, OIL COOLER INLET, NO.2

main32941-11020iAZSH32202405

32941NCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iAZSH32202405

32942GHOSE, OIL COOLER OUTLET, NO.1

main32942-11010iAZSH32202405

32942HHOSE, OIL COOLER OUTLET, NO.2

main32942-30320iAZSH32202405

32942JCLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004iAZSH32202405

32943WHOSE, TRANSMISSION OIL COOLER

main32943-30330iAZSH32202405

3901

G1250BCLIP, NO.1(FOR MOTOR COOLING PIPE)

main96138-42501iAZSH32202405

G1259RUBBER, MOTOR COOLING PIPE

mainG125930020iAZSH32202405

G125ACOOLER, MOTOR COOLING

mainG125A30010iAZSH32202405

8271511030BRACKET,WIRING HARNESS CLAMP

main82715-11030

9046713020

main90467-13020

9094901C99

main90949-01C99

91671A0820

main91671-A0820

9167380620

main91673-80620

91673A0620

main91673-A0620

91673A0820

main91673-A0820

25 parts on this diagram · 1 diagram in section
