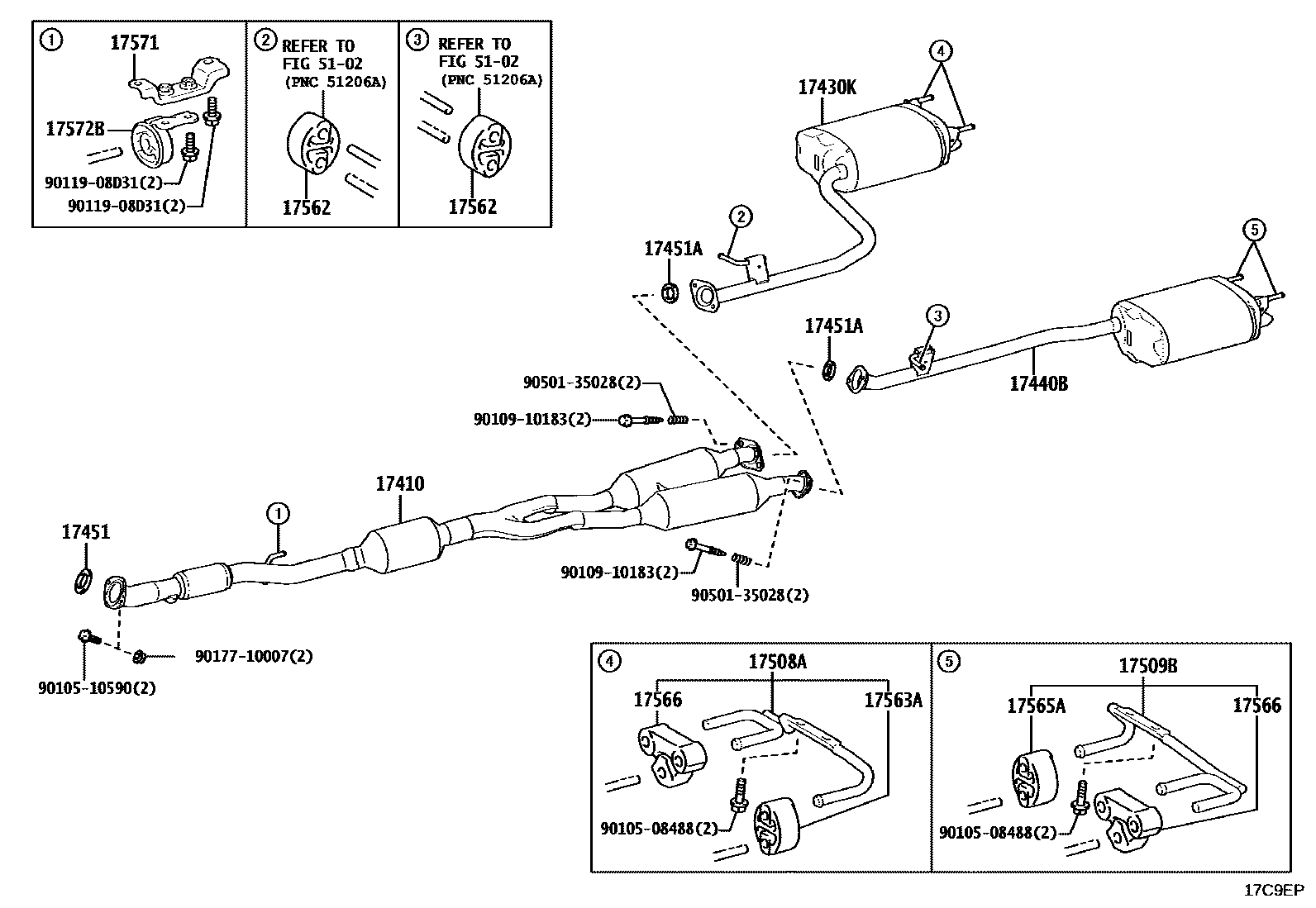

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17430KPIPE ASSY, EXHAUST TAIL, RH
17440BPIPE ASSY, EXHAUST TAIL, LH
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17509BSUPPORT, EXHAUST PIPE NO.4
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17565ASUPPORT, EXHAUST PIPE, NO.4
17566BRACKET, TAILPIPE, REAR
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
5102
9010508488
main90105-08488
9010510590
main90105-10590
9010910183
main90109-10183
9011908D31
main90119-08D31
9017710007
main90177-10007
9050135028
main90501-35028
20 parts on this diagram · 1 diagram in section
