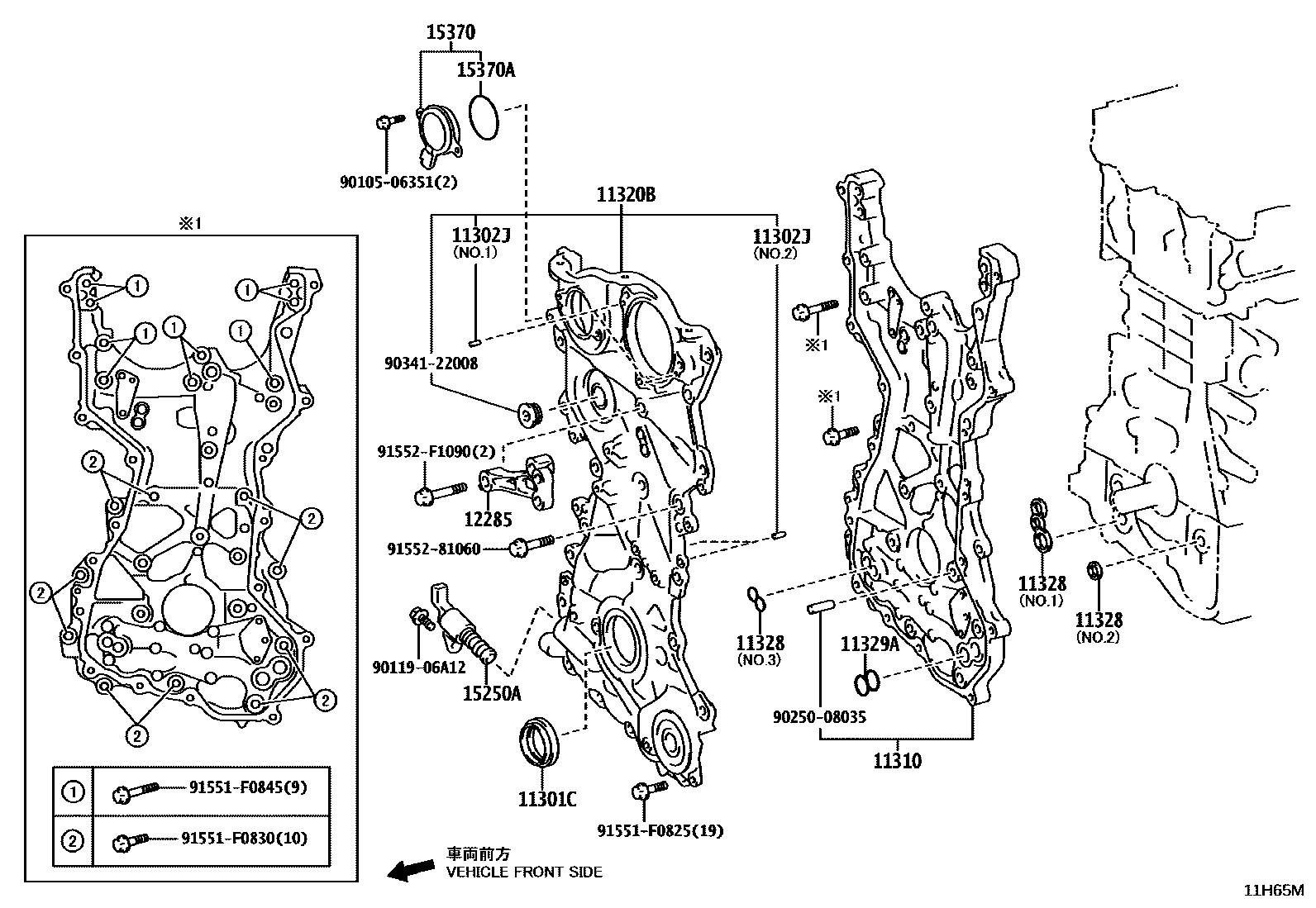

TIMING GEAR COVER & REAR END PLATE
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
11310COVER ASSY, TIMING CHAIN
11320BCOVER ASSY, TIMING CHAIN, NO.2
11328GASKET, TIMING GEAR OR CHAIN COVER
NO.1:REFER ILLUST.
NO.3:REFER ILLUST.
NO.2:REFER ILLUST.
11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2
12285BRACKET, ENGINE HANGER
15250AVALVE ASSY, OIL PRESSURE CONTROL
15370SOLENOID ASSY, CAM TIMING OIL CONTROL
15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
9010506351
main90105-06351
9011906A12
main90119-06A12
9025008035
main90250-08035
9034122008
main90341-22008
91551F0825
main91551-F0825
91551F0830
main91551-F0830
91551F0845
main91551-F0845
9155281060
main91552-81060
91552F1090
main91552-F1090
19 parts on this diagram · 1 diagram in section
