NAVIGATION & FRONT MONITOR DISPLAY

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-30670iAZSH36..G202405

DESAY

main86100-30C30iAZSH37202409

DESAY

main86140-30160iAZSH36..M202405

HANGSHENG

86190EADAPTER ASSY, STEREO JACK

main86190-12080iAZSH3#¥3,780202405

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-12470iAZSH3#¥260202405

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-12460iAZSH3#¥320202405

86730AMICROPHONE ASSY, TELEPHONE

main86730-78010iAZSH36..M¥6,400202405

86734MICROPHONE, ACTIVE NOISE CONTROL

main86734-11030iAZSH3#¥1,860202405

86860ANTENNA ASSY, NAVIGATION

main86880-42030iAZSH3#¥8,500202405

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iAZSH3#¥940202405

9015350015

main90153-50015¥60

9167380616

main91673-80616¥60

9356855014

main93568-55014¥70

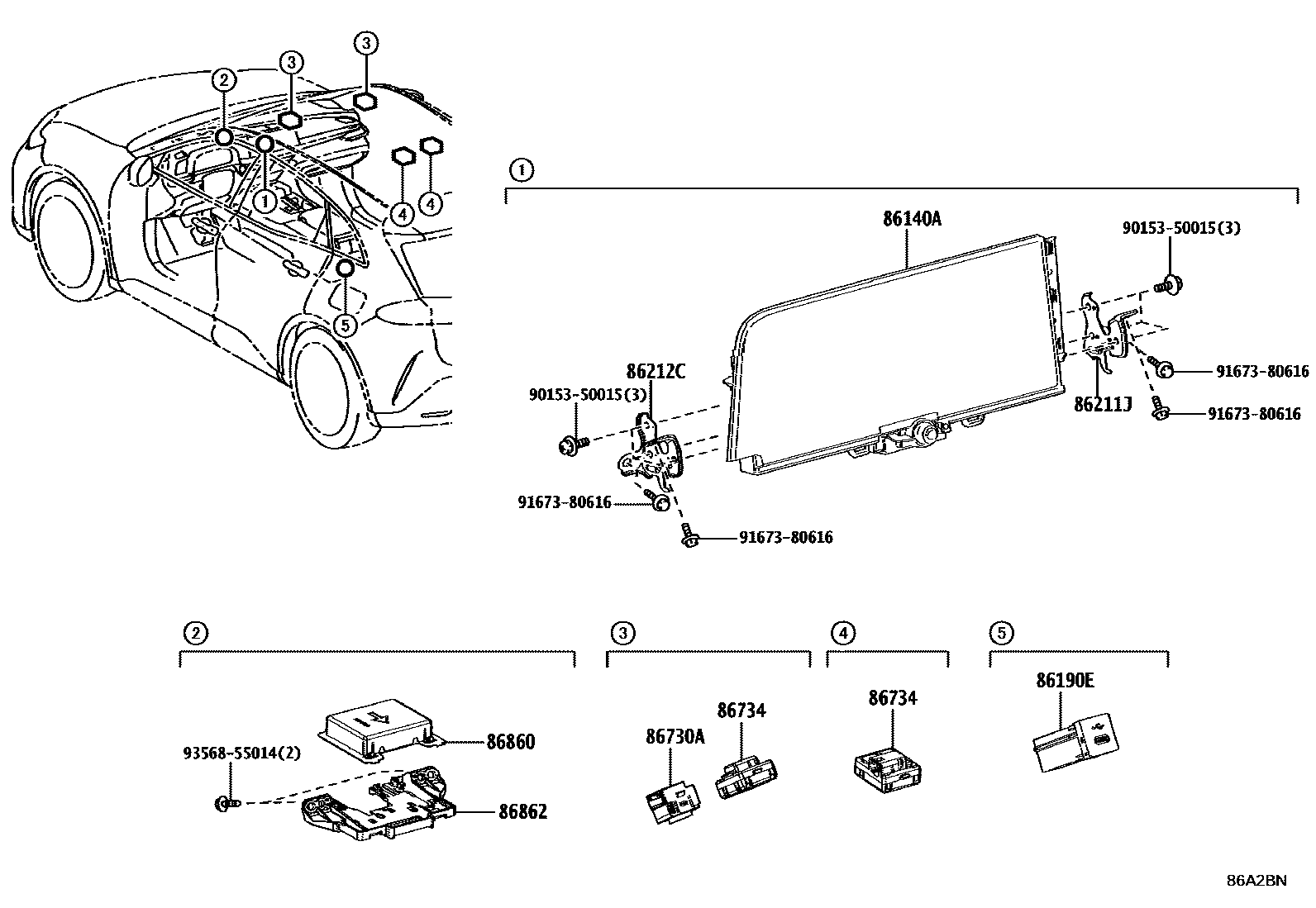

11 parts on this diagram · 1 diagram in section
