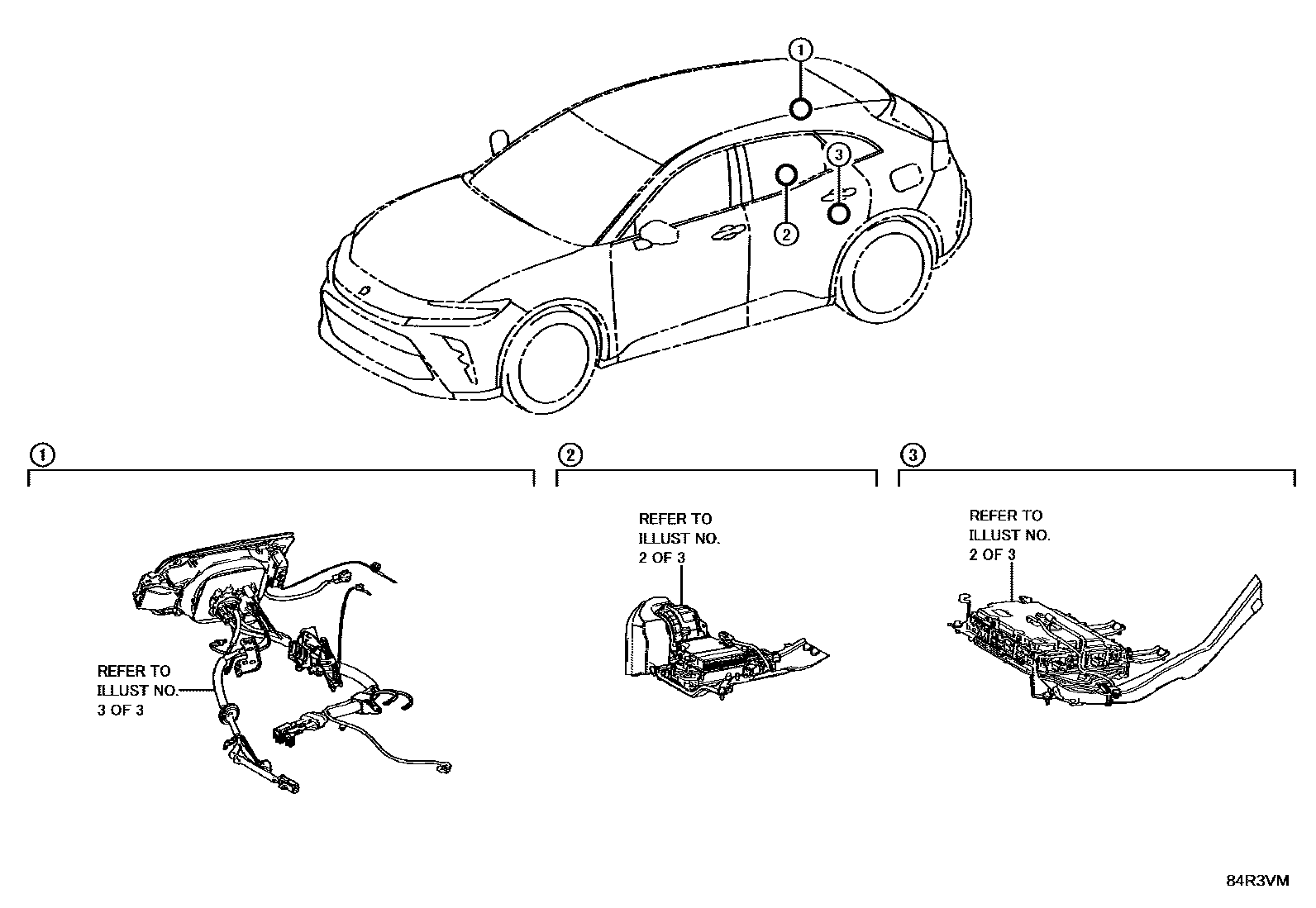

DC/DC CONVERTER & CHARGER(BEV OR FCEV)

0001 1 0002 1EV CHARGER/CONVERTER 0003 1EV CHARGER LID

58219JCOVER, BATTERY BOX

main58219-30010iAZSH37202409

58409ELID SUB-ASSY, BATTERY CHARGER CONNECTOR OPENING

main58409-30010iAZSH37202409

63189EBRACKET, WIRING HARNESS CONNECTOR

main63189-30031iAZSH37202409

63189FBRACKET, TERMINAL STAND

main63189-30020iAZSH37202409

77030BLOCK ASSY, CHARGE LID W/MOTOR

main77030-30230iAZSH37202409

77359ASEAL, FUEL FILLER OPENING LID LOCK

main77359-42010iAZSH37202409

82611DCOVER, FUSE BLOCK

main82611-47060iAZSH37202409

82613CBLOCK, FUSE BASE

main82613-47030iAZSH37202409

G9060BCOVER, CONNECTOR

main82821-30B10iAZSH37202409

G9060CCOVER, CONNECTOR, NO.2

main82821-30C00iAZSH37202409

G9081DCABLE, DC CHARGER INLET

mainG908230042iAZSH37202409

G9090BCHARGER ASSY, ELECTRIC VEHICLE

mainG909930040iAZSH37202409

G9118HLABEL, EV UNIT CONTROLLER CAUTION, NO.1

mainG911876010iAZSH37202409

G9230CBLOWER ASSY, DC/DC CONVERTER COOLING

mainG923042020iAZSH37202409

G926CAWIRE, EV CHARGER

mainG926C30040iAZSH37202409

G926PADUCT, CHARGER EXHAUST, NO.1

mainG926P30010iAZSH37202409

G926VBLOWER, CHARGER COOLING

mainG926V42020iAZSH37202409

G926XACLIP, CHARGER EXHAUST DUCT

main90467-06206-C0iAZSH37202409

BLACK

G9270EDC/DC CONVERTER ASSY

mainG927040010iAZSH37202409

G9273BRACKET, DC/DC CONVERTER

mainG927330020iAZSH37202409

G92D1CDUCT, DC/DC CONVERTER INTAKE, NO.1

mainG92D130080iAZSH37202409

G92DHCFILTER, DC/DC CONVERTER INTAKE, NO.1

mainG92DH30160iAZSH37202409

G92HABDUCT, DC/DC CONVERTER COOLING EXHAUST

mainG92HA42010iAZSH37202409

9011906A06

main90119-06A06

9011906A11

main90119-06A11

9011908C92

main90119-08C92

9016440093

main90164-40093

9016850050

main90168-50050

9017806027

main90178-06027

9017906274

main90179-06274

9018905151

main90189-05151

9046710216

main90467-10216

9155380616

main91553-80616

9167180616

main91671-80616

9167380618

main91673-80618

9338515010

main93385-15010

9415180600

main94151-80600

37 parts on this diagram · 3 diagrams in section
