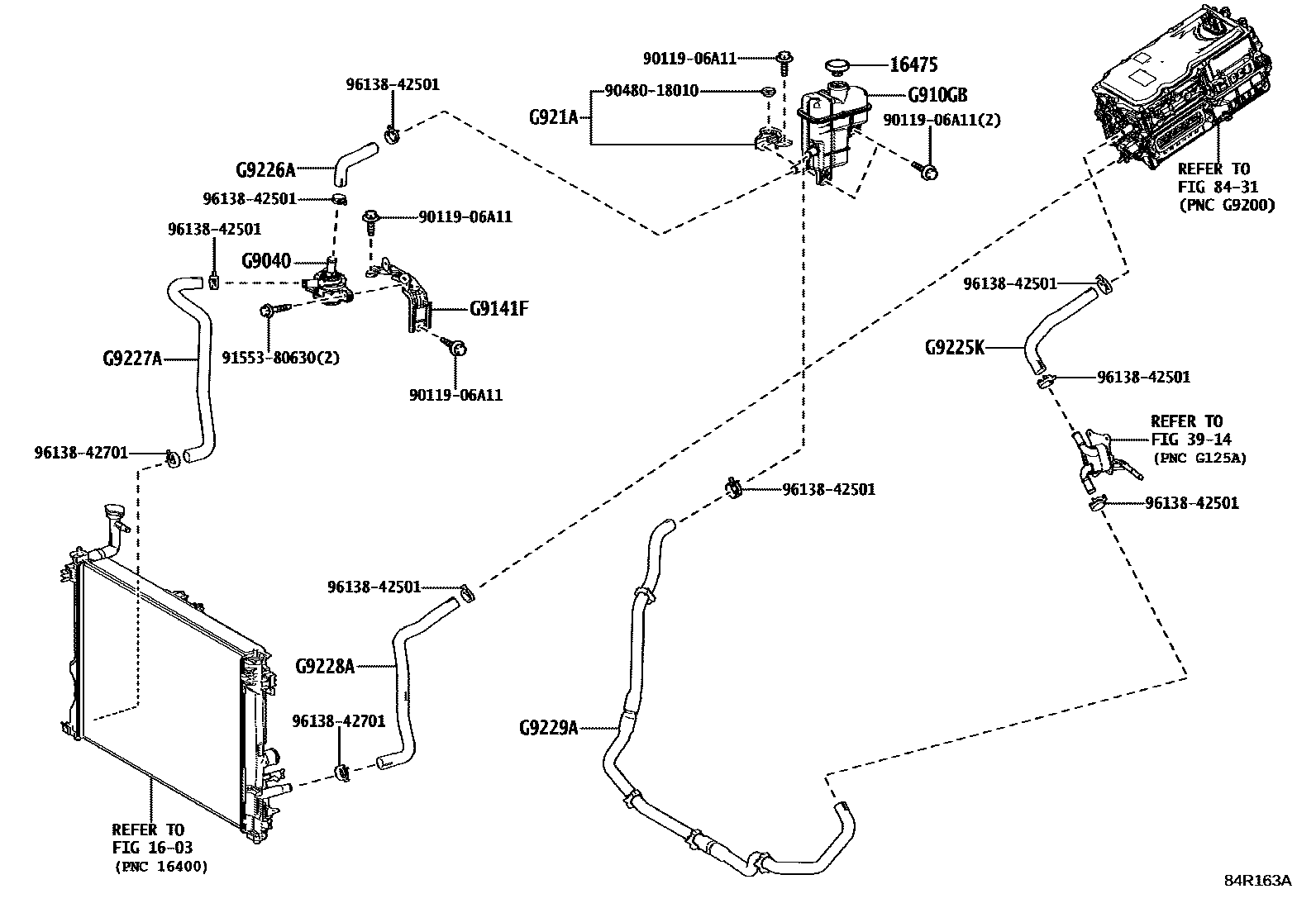

INVERTER COOLING

0001 1 0002 1

1603

16475CAP, RESERVE TANK

main16475-28140iA25..AZSH3#202405

3914

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904048050iAZSH3#202405

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G42010iAZSH3#202405

G9141FBRACKET, HV WATER PUMP

mainG914178010iAZSH36202405

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H242010iAZSH3#202405

G9225KHOSE, INVERTER COOLING, NO.1

mainG922533080iAZSH36202405

mainG922542020iAZSH37202409

G9226AHOSE, INVERTER COOLING, NO.2

mainG922642020iAZSH3#202405

G9227AHOSE, INVERTER COOLING, NO.3

mainG922730050iAZSH36202405

mainG922730070iAZSH37202409

G9228AHOSE, INVERTER COOLING, NO.4

mainG922830060iAZSH36202405

mainG922830080iAZSH37202409

G9229AHOSE, INVERTER COOLING, NO.5

mainG922930070iAZSH36202405

mainG922930080iAZSH37202409

9011906A11

main90119-06A11

9048018010

main90480-18010

9155380630

main91553-80630

9613842501

main96138-42501

9613842701

main96138-42701

18 parts on this diagram · 2 diagrams in section
