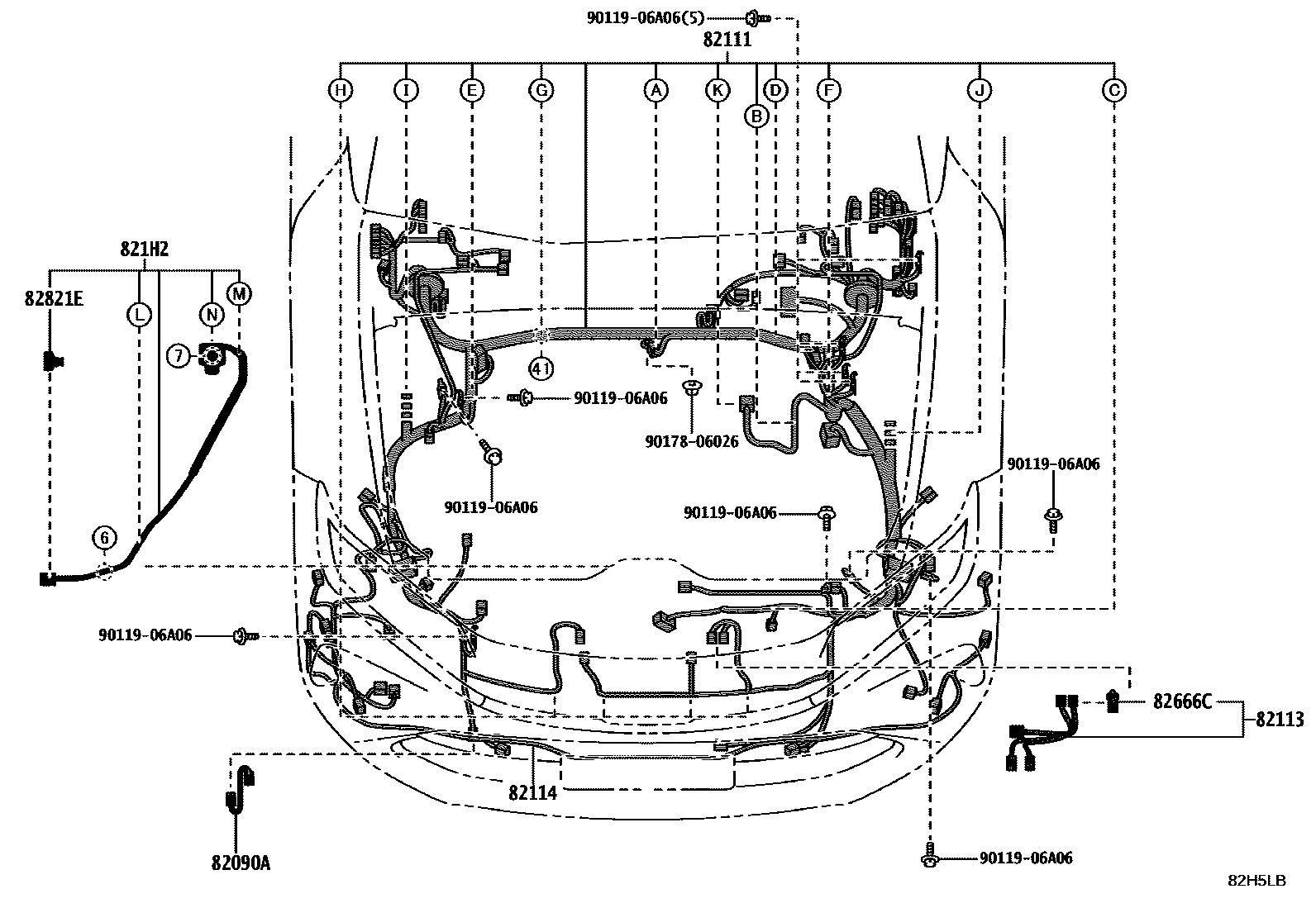

82090AWIRE ASSY, EXTENSION

main82090-33030iAZSH3#¥620202405

82111WIRE, ENGINE ROOM MAIN

main82111-3FP70iAZSH36..M202405

main82111-3FW50iAZSH36..G202405

main82111-3FW70iAZSH37202409

82113WIRE, ENGINE ROOM, NO.3

main82113-30A90iAZSH36..M¥900202405

ADVANCED PARK-WITHOUT

main82113-30B00iAZSH3#..G¥1,070202405

82114WIRE, ENGINE ROOM, NO.4

main82114-30580iAZSH36..M¥2,680202405

ADVANCED PARK-WITHOUT

main82114-30590iAZSH3#..G¥3,210202405

821H2WIRE, HV AIR CONDITIONER

main821H2-42020iAZSH36¥11,700202405

main821H2-42030iAZSH37¥9,000202409

82666CHOLDER, CONNECTOR NO.4

main82666-50C30iAZSH3#¥140202405

82821ECOVER, CONNECTOR

main82821-0R140iAZSH36¥200202405

9011906A06

main90119-06A06¥60

9017806026

main90178-06026¥80

9 parts on this diagram · 17 diagrams in section
