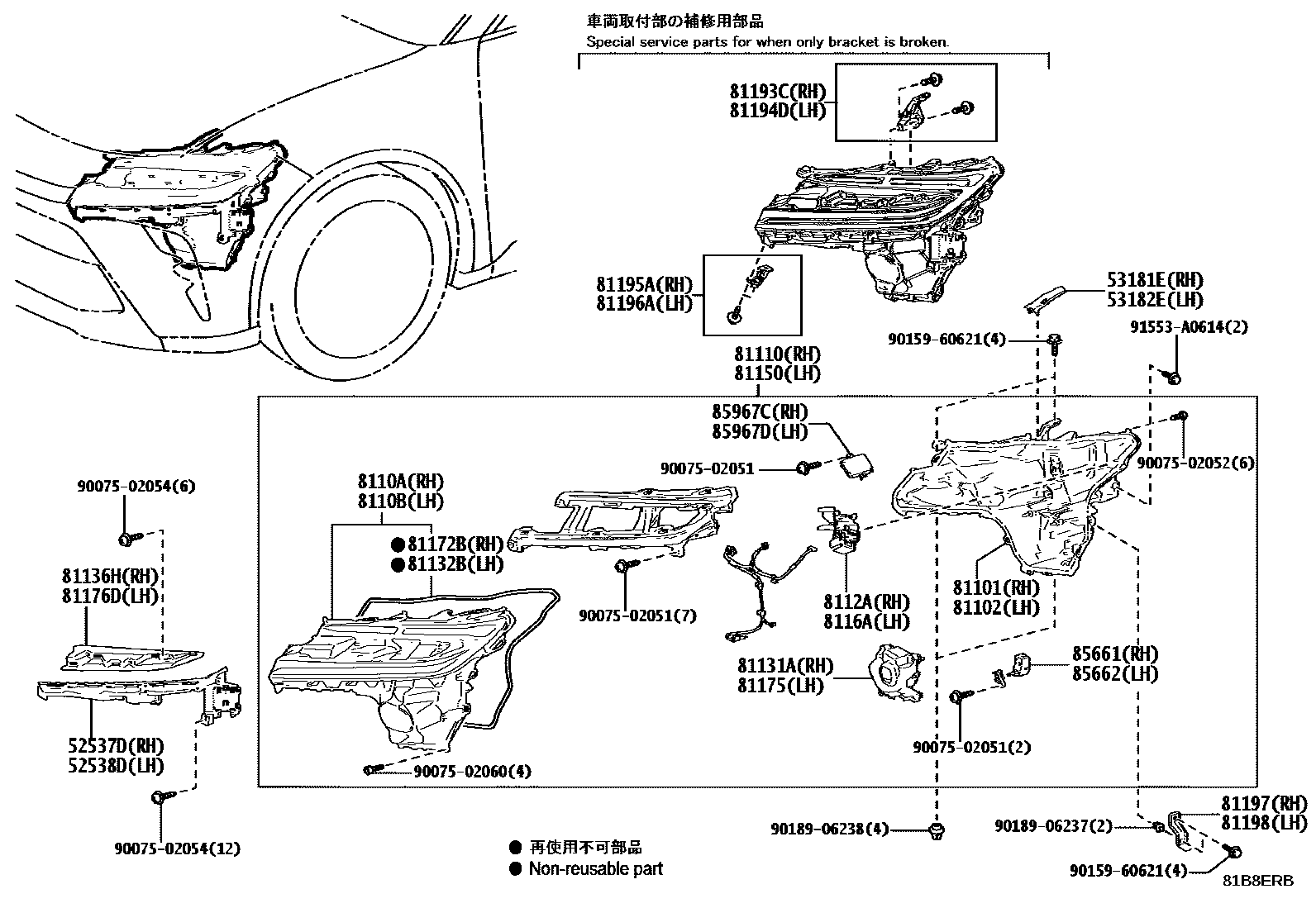

HEADLAMP
52537DRETAINER, FRONT BUMPER END, RH
52538DRETAINER, FRONT BUMPER END, LH
53181ECOVER, HEADLAMP, RH
53182ECOVER, HEADLAMP, LH
8110ALENS SUB-ASSY, HEADLAMP, RH
8110BLENS SUB-ASSY, HEADLAMP, LH
8112AUNIT, HEADLAMP CLEARANCE LED, NO.1 RH
81132BGASKET, HEADLAMP LENS
81136HRIM, HEADLAMP FITTING, RH NO.1
8116AUNIT, HEADLAMP CLEARANCE LED, NO.1 LH
81172BGASKET, HEADLAMP LENS
81176DRIM, HEADLAMP FITTING, LH NO.1
81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH
81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
81197BRACKET, HEADLAMP, LOWER RH
81198BRACKET, HEADLAMP, LWR LH
85662MOTOR, HEADLAMP LEVELING, LH
85967CCOMPUTER, LIGHT CONTROL LED, RH
85967DCOMPUTER, LIGHT CONTROL LED, LH
9007502051
main90075-02051
9007502052
main90075-02052
9007502054
main90075-02054
9007502060
main90075-02060
9015960621
main90159-60621
9018906237
main90189-06237
9018906238
main90189-06238
91553A0614
main91553-A0614
36 parts on this diagram · 2 diagrams in section
