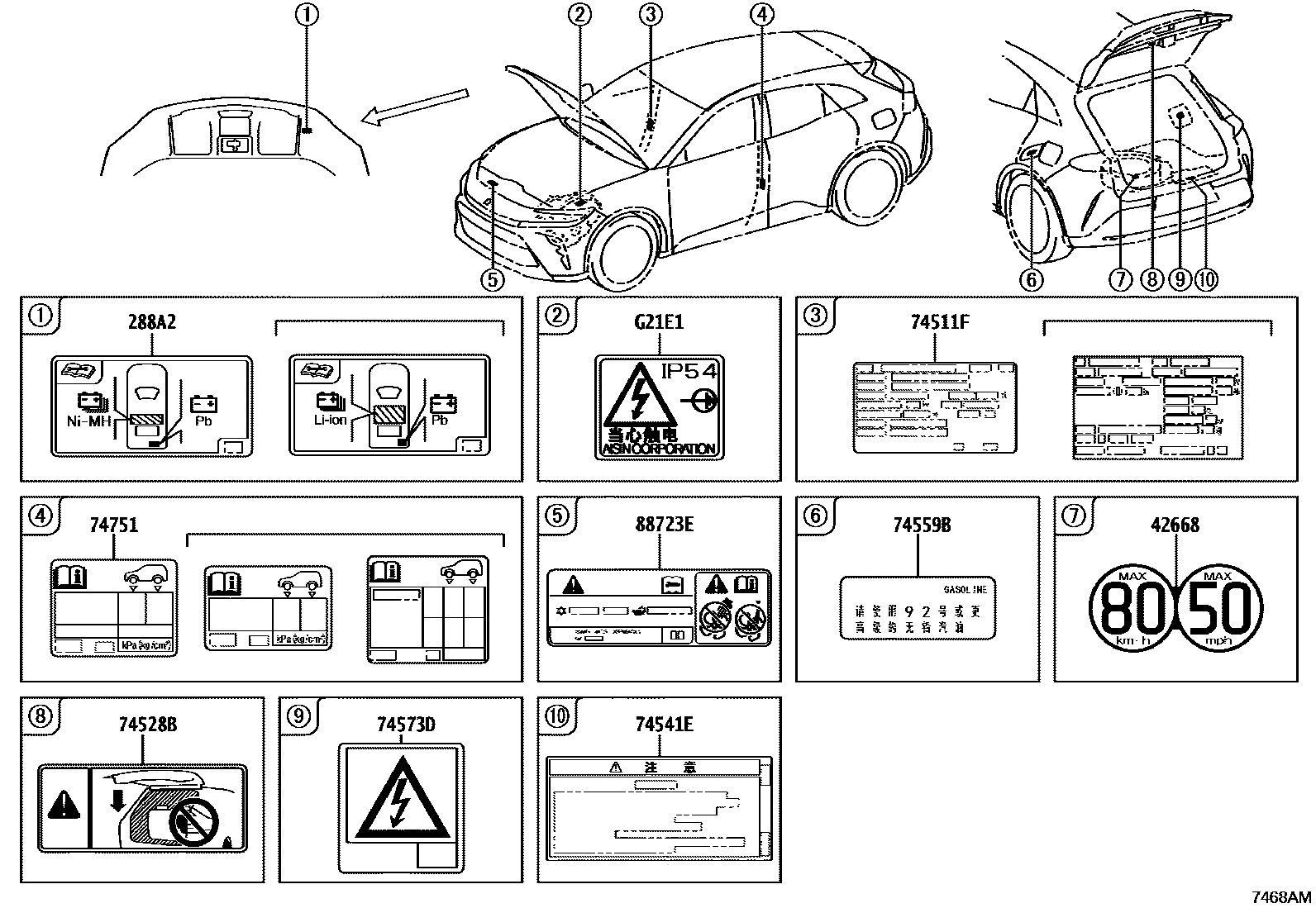

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM & EXTERIOR 0002 1INTERIOR

288A2LABEL, BATTERY LOCATION

main288A2-25050iA25..AZSH37202409

main288A2-25060iA25..AZSH36202405

42668LABEL, COMPACT SPARE TIRE CAUTION

main42668-42010iAZSH36..M202405

SPARE TIRE-WIHT(TEMPORARY:T165/80 D17)

74511FLABEL, NAME (IDENTIFICATION LASER LABEL)

main74511-30A30iAZSH36202405

*111

main74511-30A50iAZSH37202409

*111

74528BLABEL, BACK DOOR CAUTION

main74528-47020iAZSH3#..G202405

74541EPLATE, COMPACT SPARE TIRE CAUTION

main42668-58040iAZSH36..M202405

SPARE TIRE-WIHT(TEMPORARY:T165/80 D17)

74559BLABEL, FUEL INFORMATION

main74579-26011iAZSH3#202405

74573DLABEL, ELECTRIC VEHICLE BATTERY CAUTION

main74573-42160iAZSH37202409

74751LABEL, TIRE PRESSURE INFORMATION

main42661-30T20iAZSH36..M202405

TIRE & DISC WHEEL-225/55R19,7J,SUMMER TIRE

main42661-30T30iAZSH36..M202405

SPARE TIRE-WIHT(TEMPORARY:T165/80 D17)

main42661-30T80iAZSH3#..G202405

main42661-30V10iAZSH37202409

TIRE & DISC WHEEL-225/45R21 8.5J SUMMER TIRE ALMINUM WHEEL

88723ELABEL, COOLER SERVICE CAUTION

main88723-48450iAZSH36202405

main88723-48510iAZSH37202409

G21E1LABEL, GENERATOR CAUTION

mainG21E176021iAZSH3#202405

10 parts on this diagram · 2 diagrams in section
