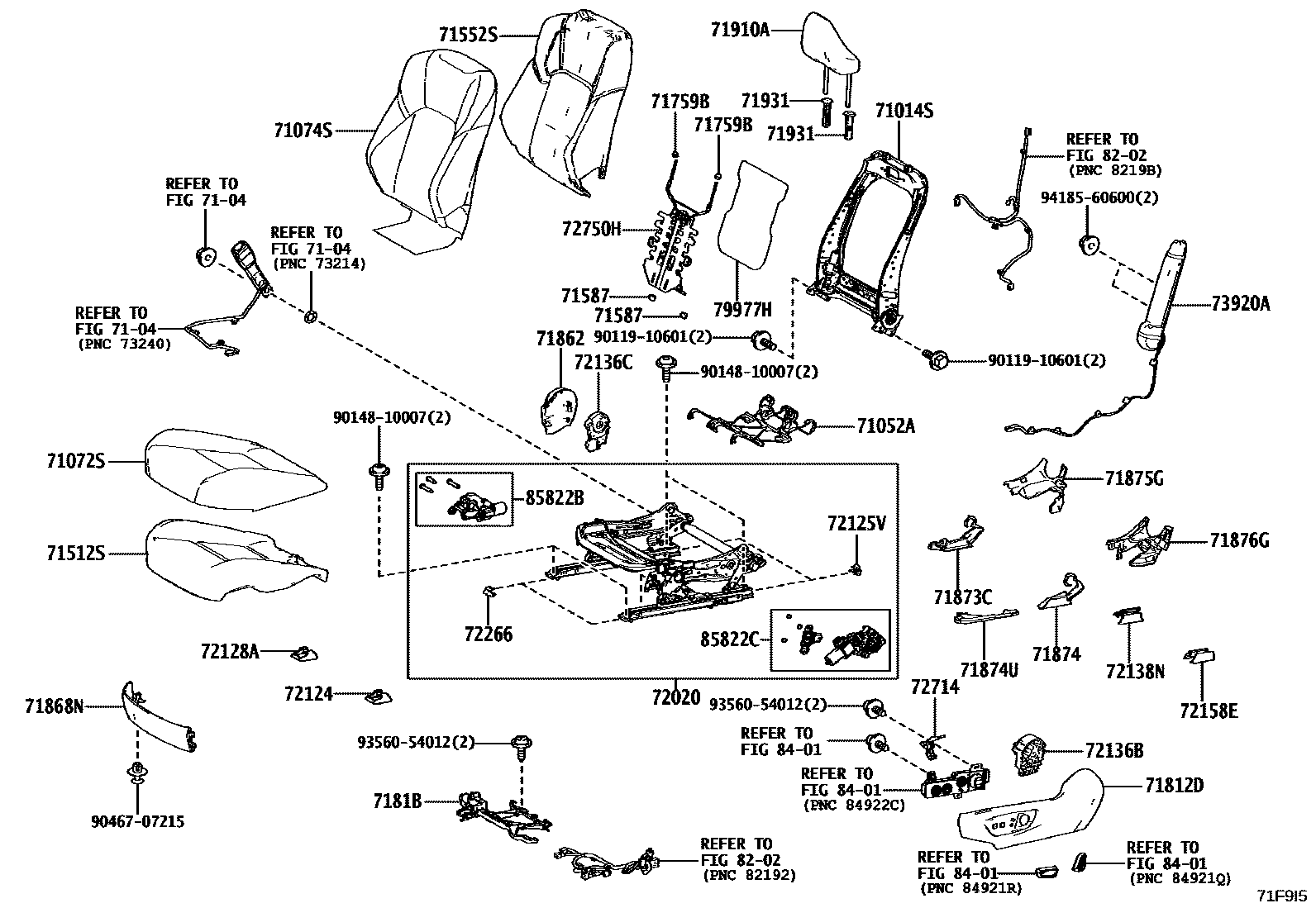

FRONT SEAT & SEAT TRACK
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
7104
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
BLACK,TRIM2#
TAN,TRIM4#
BLACK,TRIM2#
SAND BROWN,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
BLACK,TRIM2#
TAN,TRIM4#
BLACK,TRIM2#
SAND BROWN,TRIM4#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71587PROTECTOR, FRONT SEATBACK EDGE
71759BHOOK, FRONT SEATBACK
71812DSHIELD, FRONT SEAT CUSHION, LH
BLACK,TRIM2#,4#
7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
71862SHIELD, FRONT SEAT CUSHION, INNER LH
71868NSHIELD, FRONT SEAT CUSHION, FRONT LH
BLACK,TRIM2#,4#
71873CSHIELD, REAR SEAT CUSHION, LOWER RH
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71874USHIELD, FRONT SEAT CUSHION, LOWER LH
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
BLACK,TRIM2#,4#
71910AHEADREST ASSY, FRONT SEAT
BLACK,TRIM2#
SADDLE TAN,TRIM4#
BLACK,TRIM2#
SAND BROWN,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
W(LOCK),BLACK,TRIM2#,4#
W/O(LOCK),BLACK,TRIM2#,4#
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72125VCOVER, SEAT TRACK, UPPER REAR LH
sub72125-47010
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
72136BSPACER, SEAT TRACK, LOWER NO.3
72136CSPACER, SEAT TRACK, LOWER NO.4
72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH
72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH
72266COVER, SEAT TRACK UPPER RAIL, LH
72714BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH
72750HADJUSTER ASSY, LUMBAR SUPPORT, LH
73920AAIRBAG ASSY, FRONT SEAT, LH
79977HFELT, FRONT SEATBACK, LH
8202
8401
85822CMOTOR ASSY, POWER SEAT LIFTER, LH
9011910601
main90119-10601
9014810007
main90148-10007
9046707215
main90467-07215
9356054012
main93560-54012
9418560600
main94185-60600
43 parts on this diagram · 5 diagrams in section
