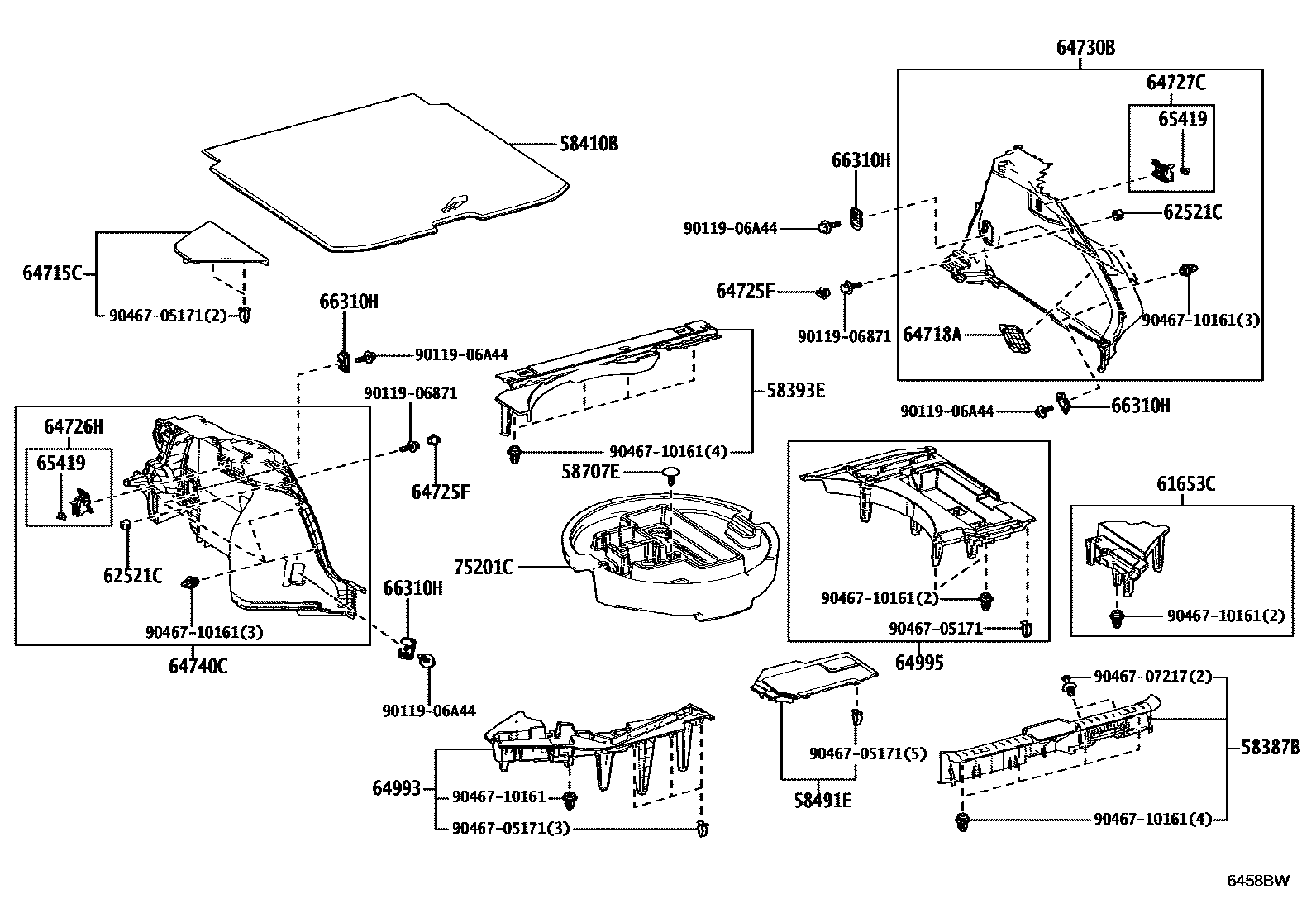

DECK BOARD & DECK TRIM COVER

0001 1W/O(TEMPORARY SPARE TIRE) 0002 1W(TEMPORARY SPARE TIRE) 0003 1

58387BPLATE, REAR FLOOR FINISH

main58387-30270-C0iAZSH3#202405

BLACK,TRIM2#,4#

58393ESUPPORT, DECK BOARD SET

main58393-30030iAZSH36202405

main58393-30040iAZSH37202409

58410BBOARD ASSY, DECK

main58410-30020-C3iAZSH3#202405

BLACK/SLIVER/GRAY,TRIM2#,4#

58491EPLATE, BATTERY SERVICE COVER

main58491-30010iAZSH3#202405

58707EPLUG SET, HOLE

main64778-52160iAZSH3#202405

61653CBRACKET, DECK SIDE TRIM, RH

main61653-30050iAZSH3#202405

62521CCOVER, QUARTER TRIM RH

main62521-48020-C2iAZSH3#202405

BLACK,TRIM2#,4#

sub62521-48020

64715CCOVER, DECK SIDE TRIM, LH

main64715-30380-C1iAZSH3#202405

BLACK,TRIM2#,4#

64718ACOVER, DECK TRIM SERVICE HOLE

main64718-30180-C0iAZSH3#202405

BLACK,TRIM2#,4#

64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-48020-C1iAZSH3#202405

BLACK,TRIM2#,4#

64726HHOOK, DECK SIDE TRIM, NO.2

main64726-30100-C0iAZSH3#202405

BLACK,TRIM2#,4#

64727CHOOK, LUGGAGE COMPARTMENT TRIM, NO.3

main64725-30220-C0iAZSH3#202405

BLACK,TRIM2#,4#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-30021-C2iAZSH3#202405

BLACK,TRIM2#,4#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-30011-C2iAZSH3#202405

BLACK,TRIM2#,4#

64993BOX, DECK FLOOR, REAR

main64993-30010iAZSH3#202405

64995BOX, DECK FLOOR, RH

main64995-30010iAZSH36202405

main64995-30030iAZSH37202409

65419CLIP, CORNER PROTECTOR

main65487-30010iAZSH3#202405

66310HHOOK ASSY, ROPE

main66310-30011-C1iAZSH3#202405

BLACK,TRIM2#,4#

sub66310-30011

75201CBOX SUB-ASSY, TOOL, NO.1

main75201-30180iAZSH36202405

main75201-30210iAZSH37202409

9011906871

main90119-06871

9011906A44

main90119-06A44

9046705171

main90467-05171

9046707217

main90467-07217

9046710161

main90467-10161

24 parts on this diagram · 3 diagrams in section
