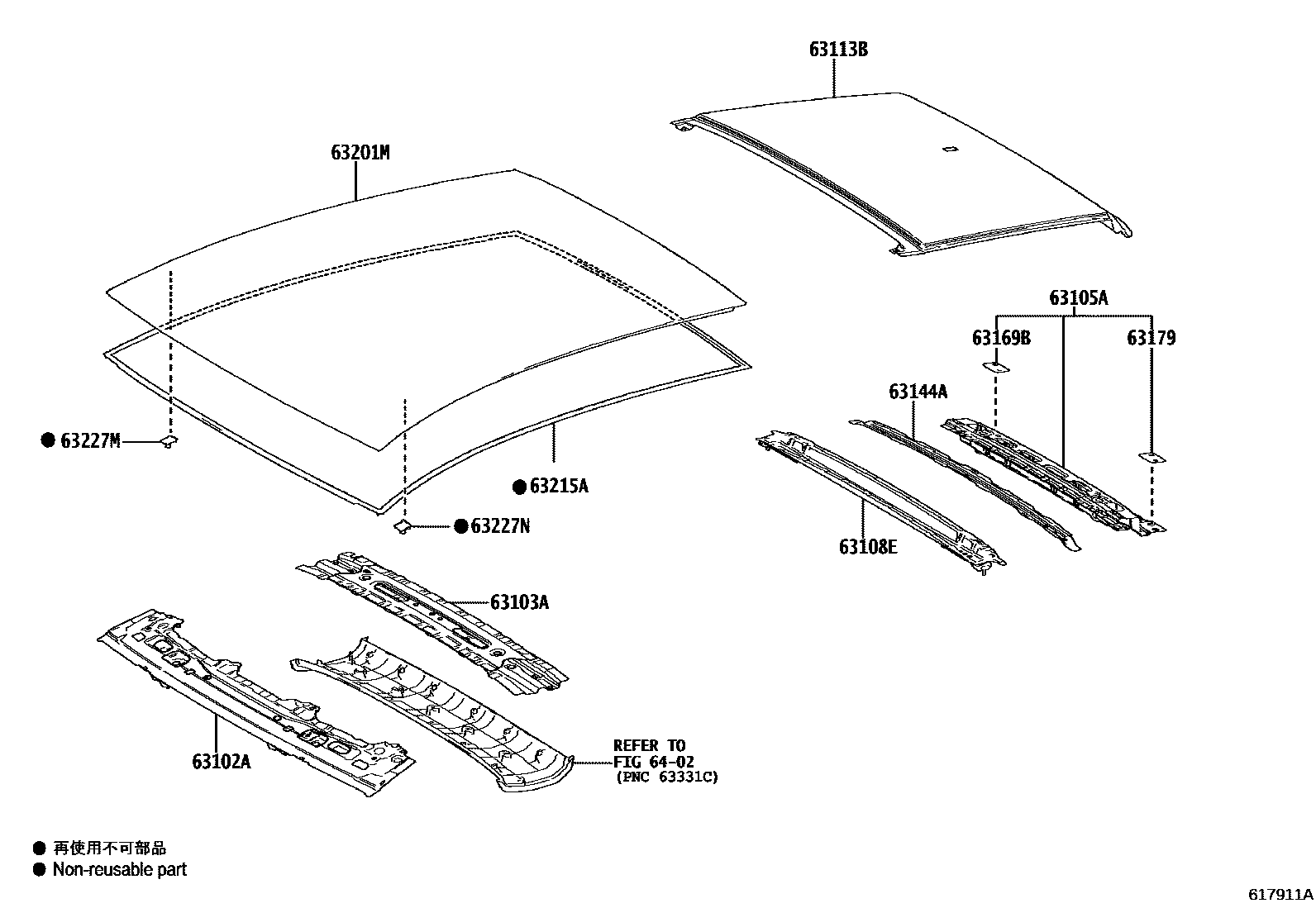

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL(PANORAMA ROOF) 0002 1ROOF PANEL(NORMAL ROOF) 0003 1SLIDING ROOF HOUSING

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-30490iAZSH3#202405

main63102-30912iAZSH3#..G202405

MOON ROOF-WITHOUT

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-30440iAZSH3#..G202405

MOON ROOF-WITHOUT

main63103-30450iAZSH3#202405

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-30110iAZSH3#202405

63108EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.6

main63108-30070iAZSH3#202405

63113BPANEL, ROOF, REAR

main63113-30020iAZSH3#202405

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-30280iAZSH3#202405

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-48010iAZSH3#202405

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-48010iAZSH3#202405

63201MGLASS SUB-ASSY, ROOF WINDOW, NO.1

main63211-30240iAZSH3#202405

MOON ROOF-WITHOUT

63215AMOULDING, ROOF WINDOW, UPPER

main63215-30050iAZSH3#202405

MOON ROOF-WITHOUT

63227MCLIP, ROOF WINDOW, LOWER

main63227-30030iAZSH3#202405

MOON ROOF-WITHOUT

63227NCLIP, ROOF WINDOW, LOWER, NO.2

main63228-30030iAZSH3#202405

MOON ROOF-WITHOUT

6402

13 parts on this diagram · 3 diagrams in section
