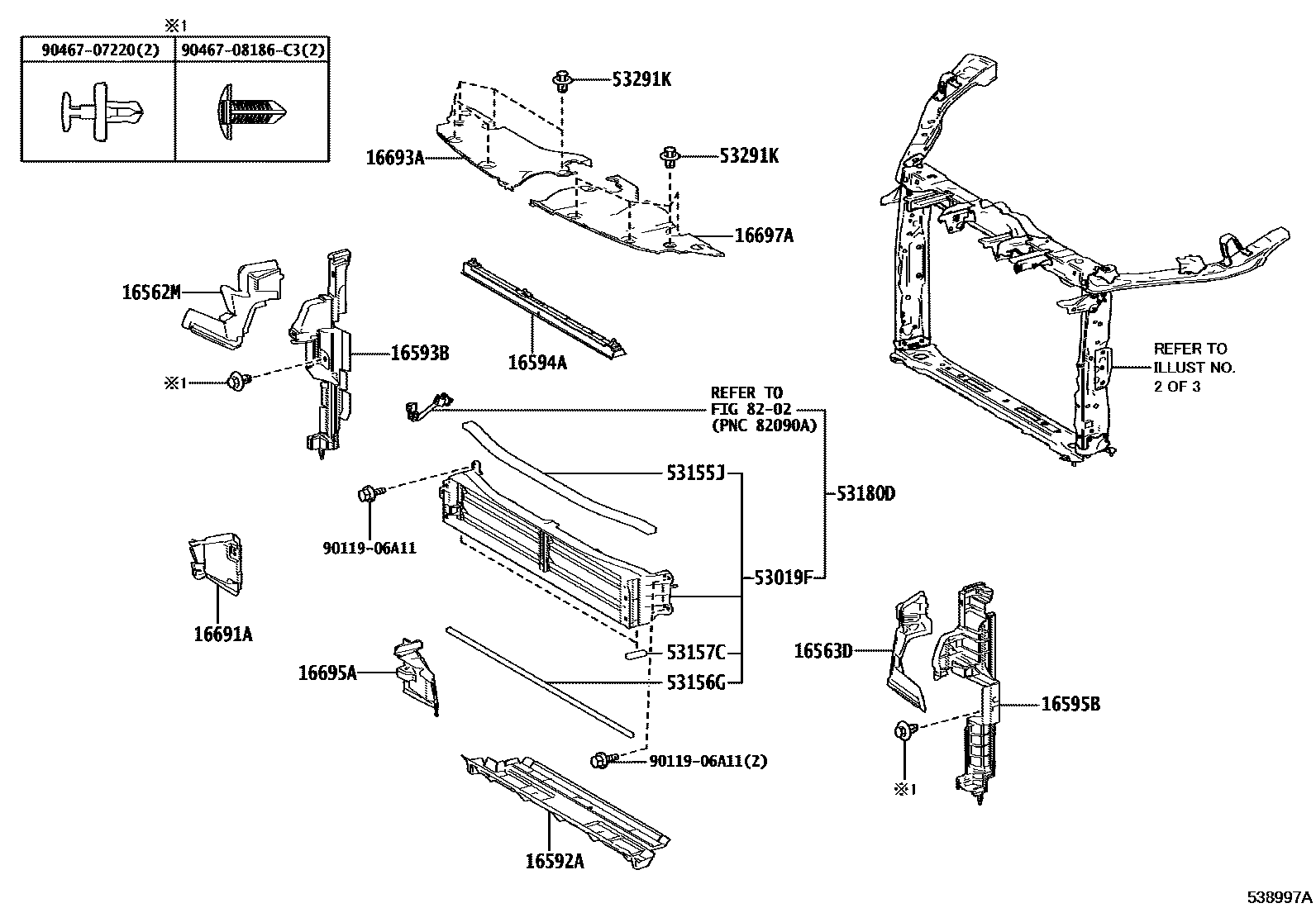

FRONT FENDER APRON & DASH PANEL

0001 1AIR GUIDE 0002 1AIR GUIDE 0003 1RADIATOR SUPPORT & FENDER APR0004 1DASH PANEL

16562MSEAL, RADIATOR TO SUPPORT, NO.2

main16562-25070iA25..AZSH3#¥1,520202405

16563DSEAL, RADIATOR TO SUPPORT, NO.3

main16563-25050iA25..AZSH3#¥1,440202405

16592AGUIDE, RADIATOR AIR, NO.3

main16592-25090iA25..AZSH3#¥3,850202405

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-25400iA25..AZSH36¥2,930202405

main16593-25410iA25..AZSH37¥2,440202409

16594AGUIDE, RADIATOR AIR, NO.2

main16594-25020iA25..AZSH37¥2,380202409-202501

main16594-25040iA25..AZSH36¥1,540202405

main16594-25050iA25..AZSH37202501

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-25380iA25..AZSH36¥3,030202405

main16595-25390iA25..AZSH37¥2,770202409

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-25190iA25..AZSH3#¥1,360202405

16693APLATE, RADIATOR SIDE AIR GUIDE, REAR RH

main16693-25040iA25..AZSH3#¥3,850202405

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-25200iA25..AZSH36¥1,440202405

main16695-25240iA25..AZSH37¥1,440202409

16697APLATE, RADIATOR SIDE AIR GUIDE, REAR LH

main16697-25040iA25..AZSH3#¥3,980202405

53019FSHUTTER SUB-ASSY, RADIATOR

main53019-33020iAZSH3#¥9,100202405

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-33120iAZSH3#¥550202405

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-33010iAZSH3#¥370202405

53157CSEAL, RADIATOR GRILLE, NO.3

main53157-33010iAZSH3#¥370202405

53180DSHUTTER ASSY, RADIATOR

main53180-33092iAZSH3#¥20,600202405

53291KCLIP, RADIATOR COVER PLATE

main90467-10216iAZSH3#¥100202405

8202

9011906A11

main90119-06A11¥60

9046707220

main90467-07220¥80

9046708186C3

main90467-08186C3

20 parts on this diagram · 4 diagrams in section
