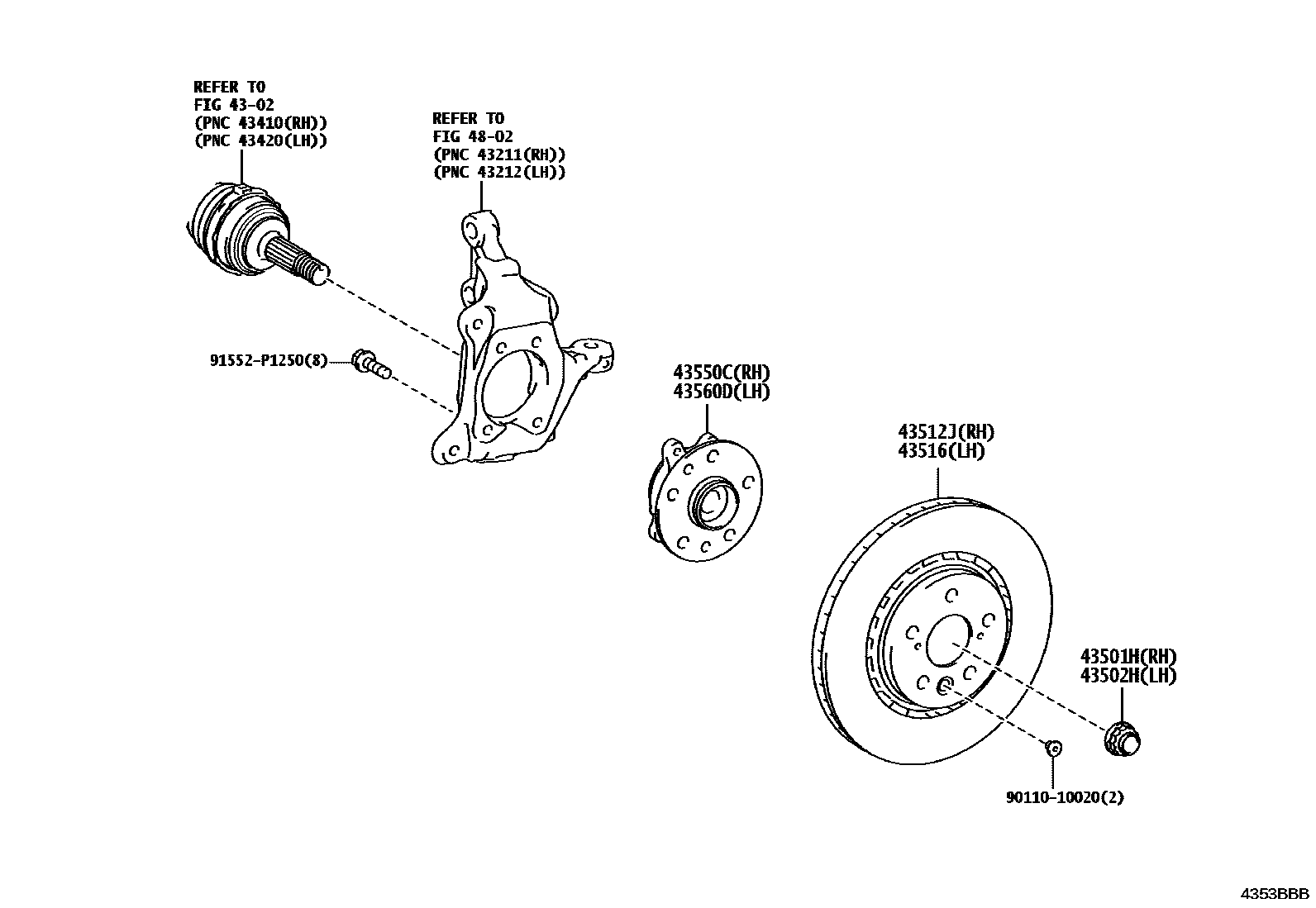

FRONT AXLE HUB

4302

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAZSH3#202405

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAZSH3#202405

43512JDISC, FRONT RH

main43512-48190iAZSH37202409

main43512-78010iAZSH36202405

43516DISC, FRONT LH

main43512-78010iAZSH36202405

main43516-48010iAZSH37202409

43550CHUB & BEARING ASSY, FRONT AXLE, RH

main43550-48040iAZSH3#202405

43560DHUB & BEARING ASSY, FRONT AXLE, LH

main43550-48040iAZSH3#202405

4802

9011010020

main90110-10020

91552P1250

main91552-P1250

10 parts on this diagram · 1 diagram in section
