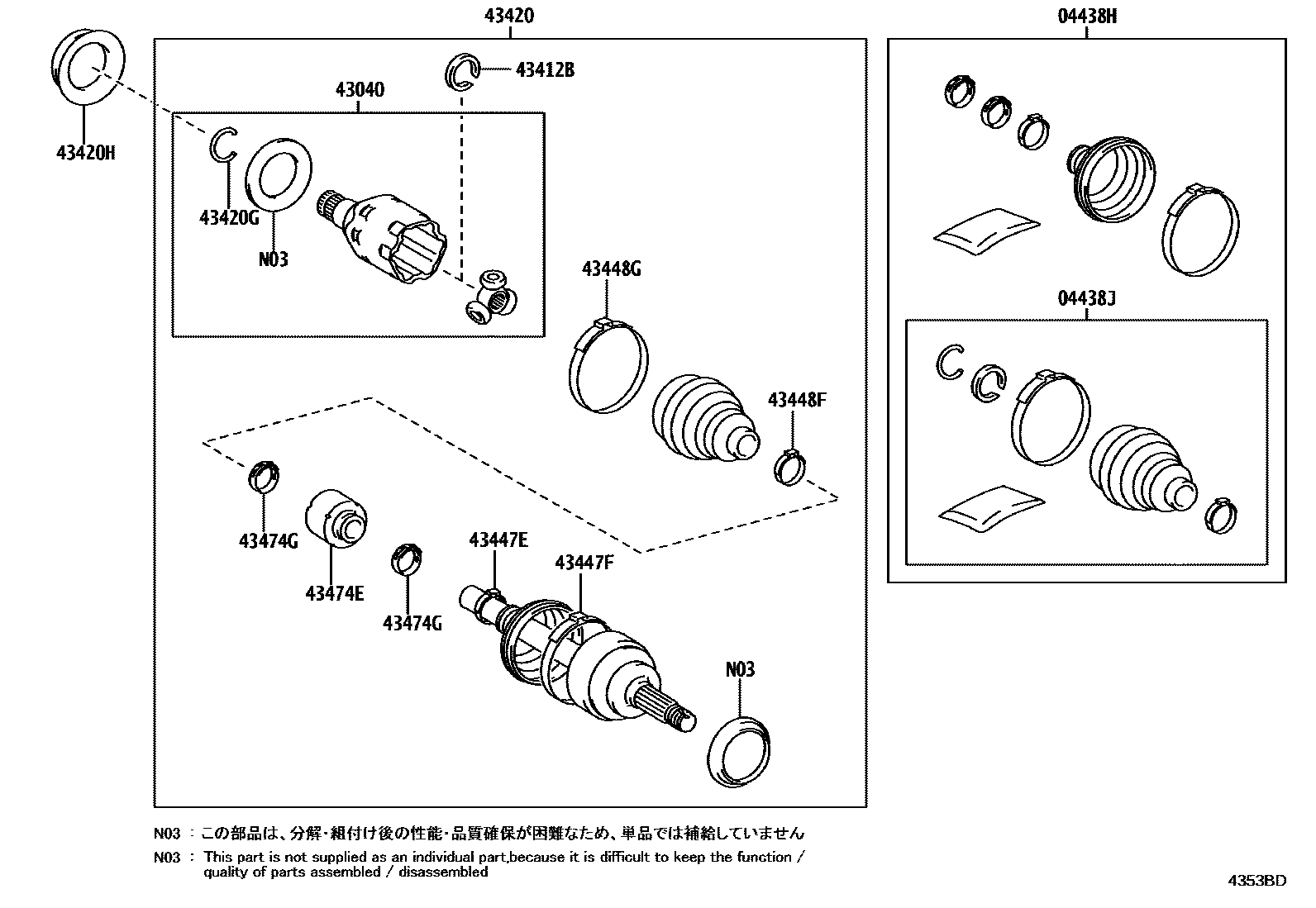

FRONT DRIVE SHAFT

0001 1LH 0002 1LH 0003 1RH 0004 1RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04428-28170iAZSH36202405

main04428-48170iAZSH37202409

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-28160iAZSH36202405

main04438-48170iAZSH37202409

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-28060iAZSH36202405

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-28010iAZSH36202405

main43425-42040iAZSH37202409

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-30070iAZSH36202405-202409

sub43420-30071

main43420-30071iAZSH36202410

main43420-42281iAZSH37202409

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main43425-42060iAZSH37202409

main90521-33002iAZSH36202405

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50058iAZSH36202405

main90311-50059iAZSH37202409

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-28050iAZSH36202405

main42345-48240iAZSH37202409

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-48280iAZSH37202409

main42345-78090iAZSH36202405

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-28050iAZSH36202405

main42345-48240iAZSH37202409

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-28040iAZSH36202405

main42345-48270iAZSH37202409

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-42050iAZSH36202405

main43474-42080iAZSH37202409

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-12090iAZSH36202405

main42345-42250iAZSH37202409

13 parts on this diagram · 4 diagrams in section
