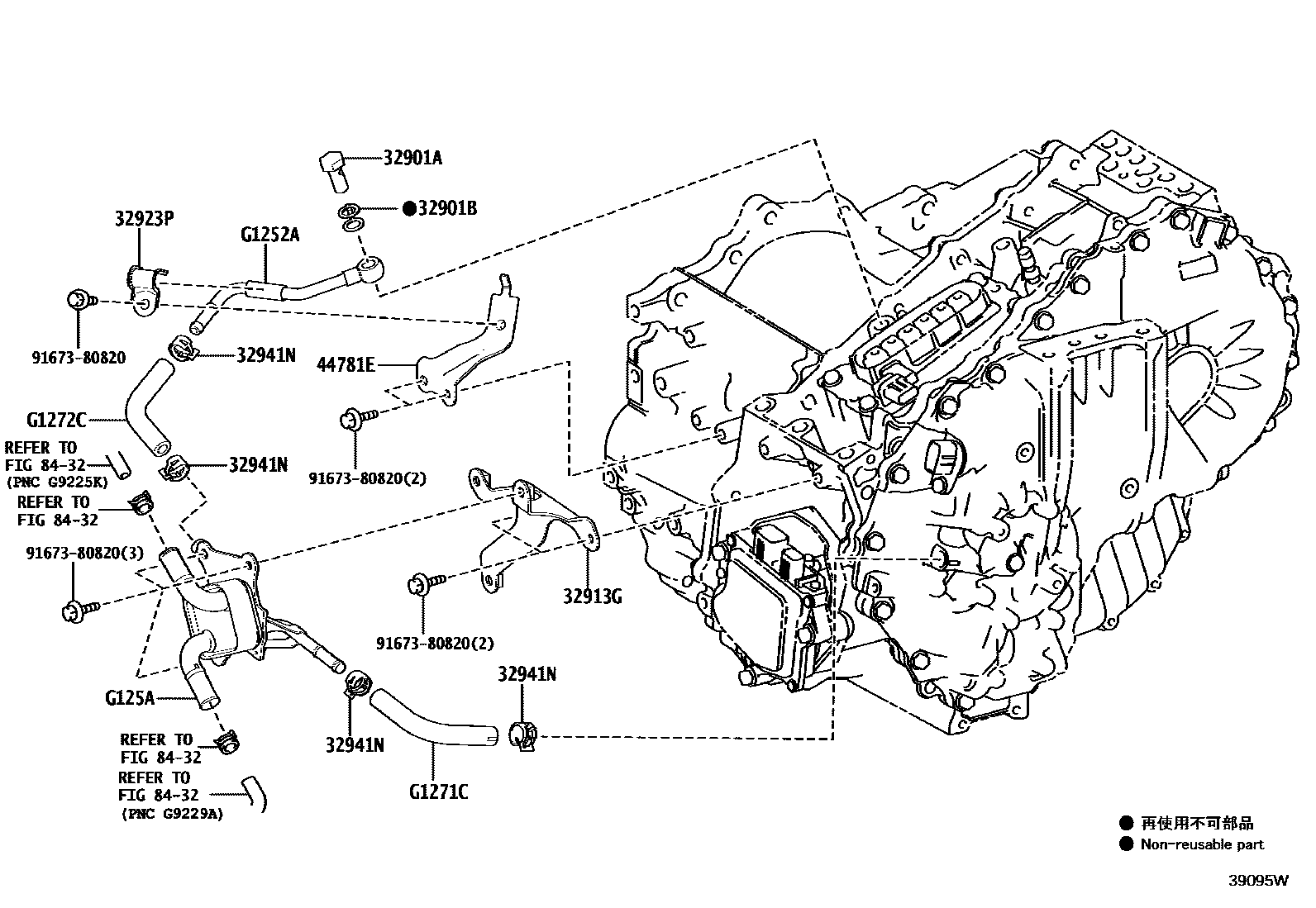

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

0001 1 0002 1

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iAZSH3#202405

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iAZSH3#202405

32913GBRACKET, TRANSMISSION OIL COOLER

main32913-42050iAZSH37202409

main32913-78030iAZSH36202405

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040iAZSH36202405

32941NCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iAZSH37202405

44781EBRACKET, HOSE

main44781-33020iAZSH36202405

8432

G1252APIPE, MOTOR COOLING, NO.2

mainG125233010iAZSH36202405

mainG125242010iAZSH37202409

G125ACOOLER, MOTOR COOLING

mainG125A33010iAZSH36202405

mainG125A48020iAZSH37202409

G1271CHOSE, MOTOR COOLING, NO.1

mainG127133010iAZSH36202405

mainG127142010iAZSH37202409

G1272CHOSE, MOTOR COOLING, NO.2

mainG127233010iAZSH36202405

9167380820

main91673-80820

12 parts on this diagram · 2 diagrams in section
