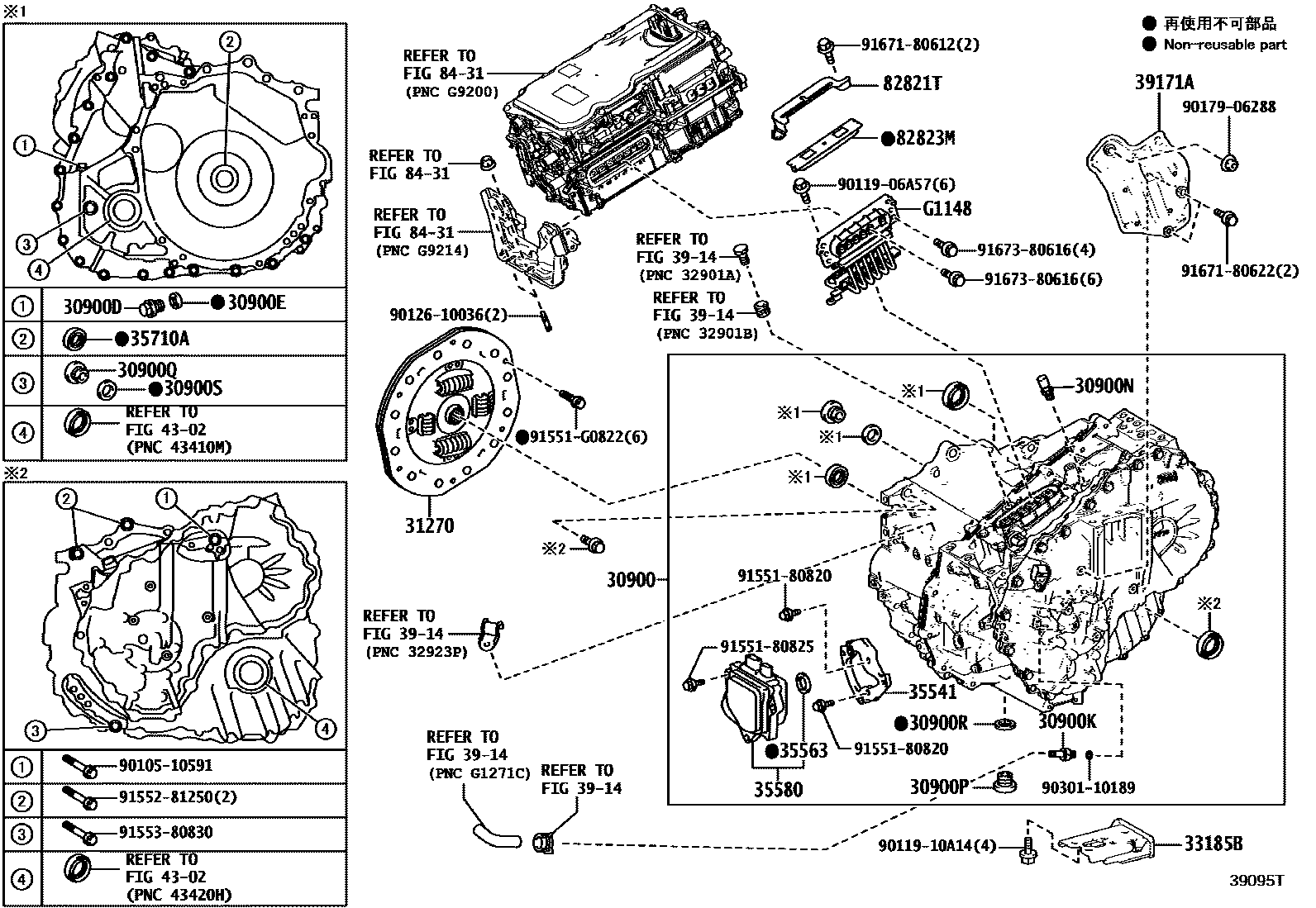

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900TRANSAXLE ASSY, HYBRID VEHICLE
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
30900EGASKET(FOR TRANSAXLE HOUSING & CASE)
30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)
30900PPLUG, DRAIN(HEV)
30900QPLUG, FILLER(HEV)
30900RGASKET, DRAIN PLUG(HEV)
30900SGASKET, FILLER PLUG(HEV)
31270DAMPER ASSY, TRANSMISSION INPUT
33185BBRACKET, TRANSAXLE UNDER STOPPER
35541BRACKET, SHIFT CONTROL ACTUATOR
35563SEAL, SHIFT CONTROL ACTUATOR
35580ACTUATOR ASSY, SHIFT CONTROL
35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)
3914
39171ACOVER, TRANSAXLE
4302
82821TCOVER, CONNECTOR
82823MCAP, TERMINAL
8431
9010510591
9011906A57
9011910A14
9012610036
9017906288
9030110189
9155180820
9155180825
91551G0822
9155281250
9155380830
9167180612
9167180622
9167380616
36 parts on this diagram · 3 diagrams in section
