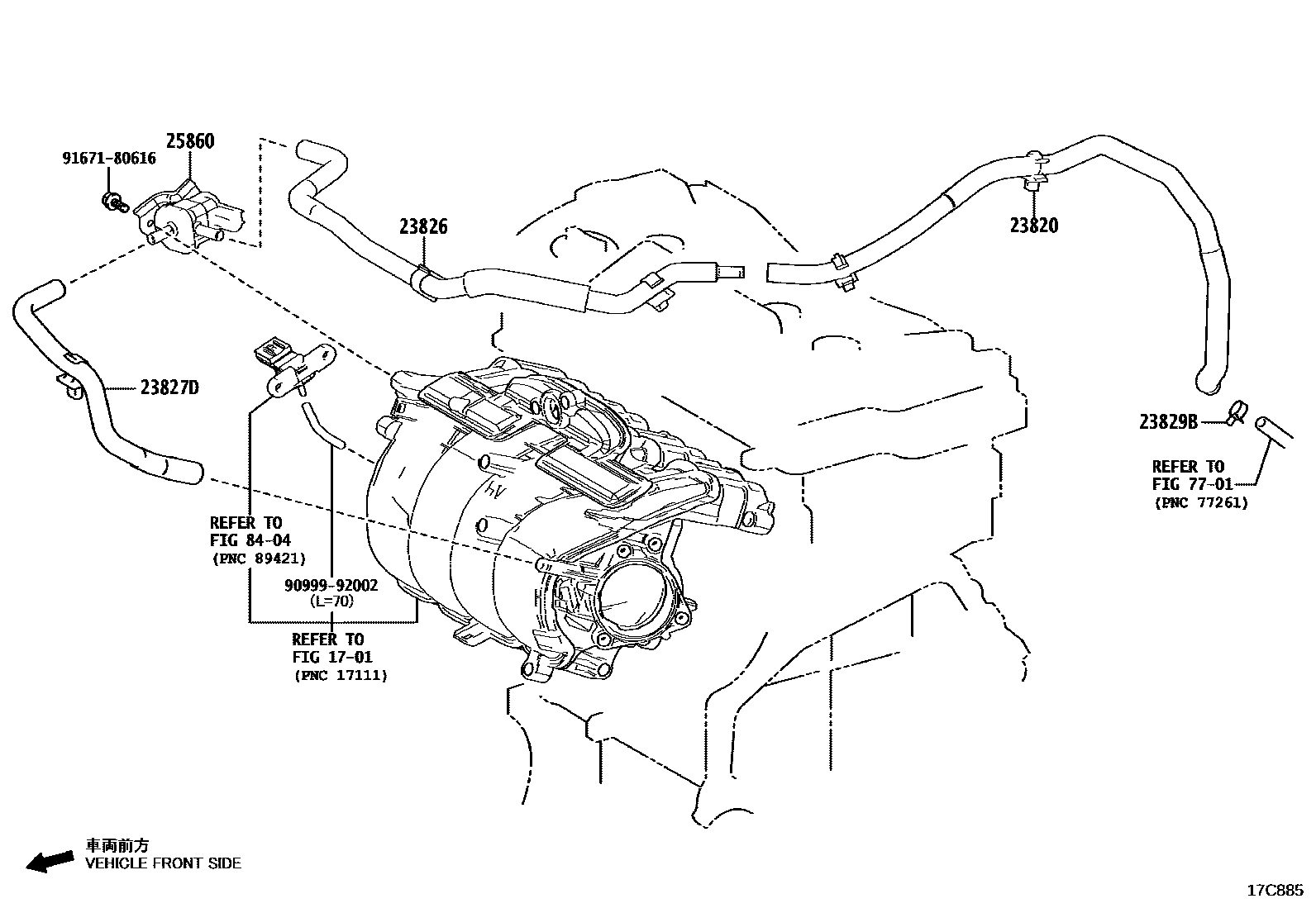

VACUUM PIPING

0001 1 0002 1W(GPF)

1701

23820HOSE ASSY, FUEL VAPOR FEED

main23820-25390iA25..AZSH36202405

main23820-25600iA25..AZSH37202409

23826HOSE, FUEL VAPOR FEED, NO.1

main23820-25051iA25..AZSH3#202405

23827DHOSE, FUEL VAPOR FEED, NO.2

main23820-25130iA25..AZSH3#202405

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96136-41901iA25..AZSH3#202405

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25020iA25..AZSH3#202405

7701

8404

9099992002

main90999-92002

9167180616

main91671-80616

10 parts on this diagram · 2 diagrams in section
